SQUARE D

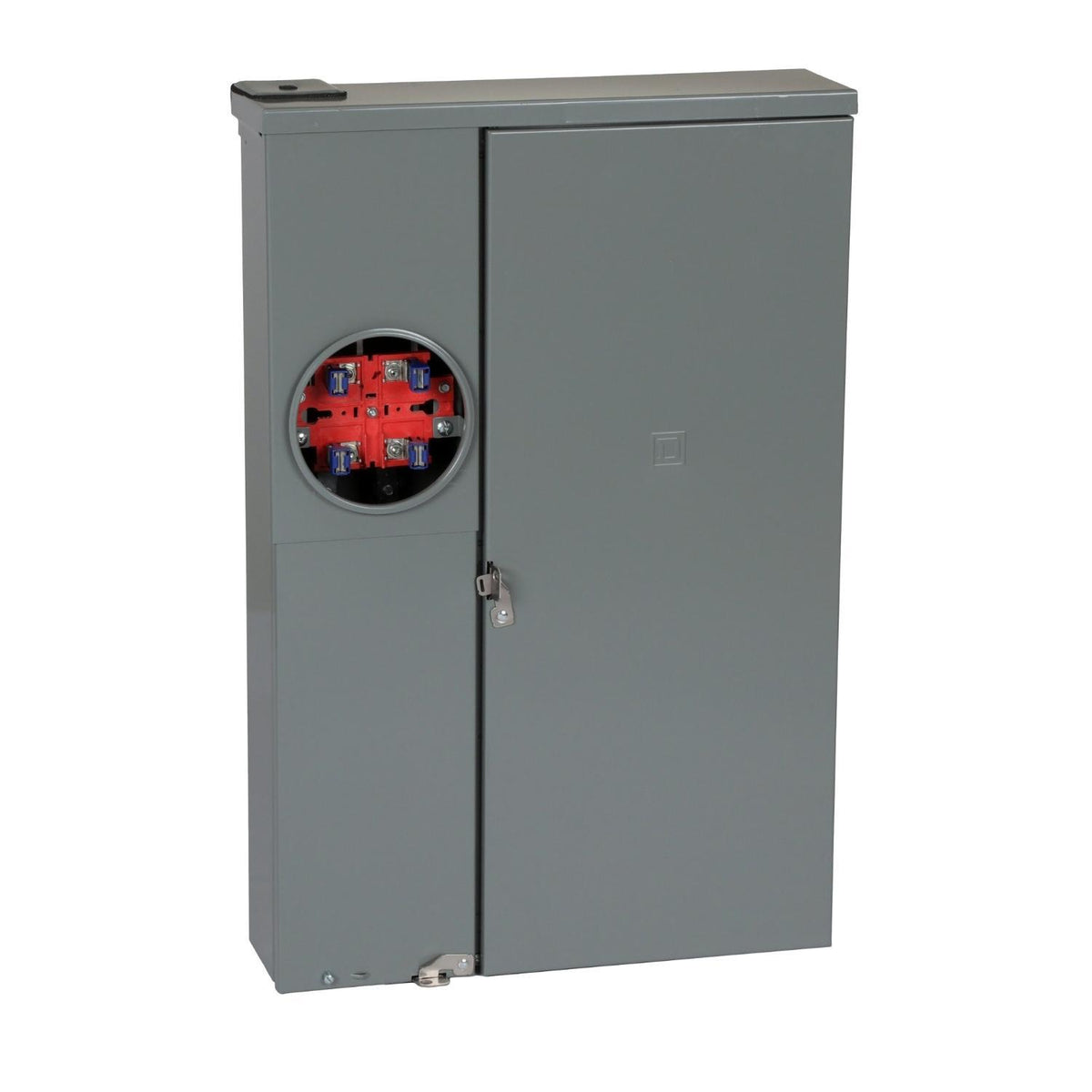

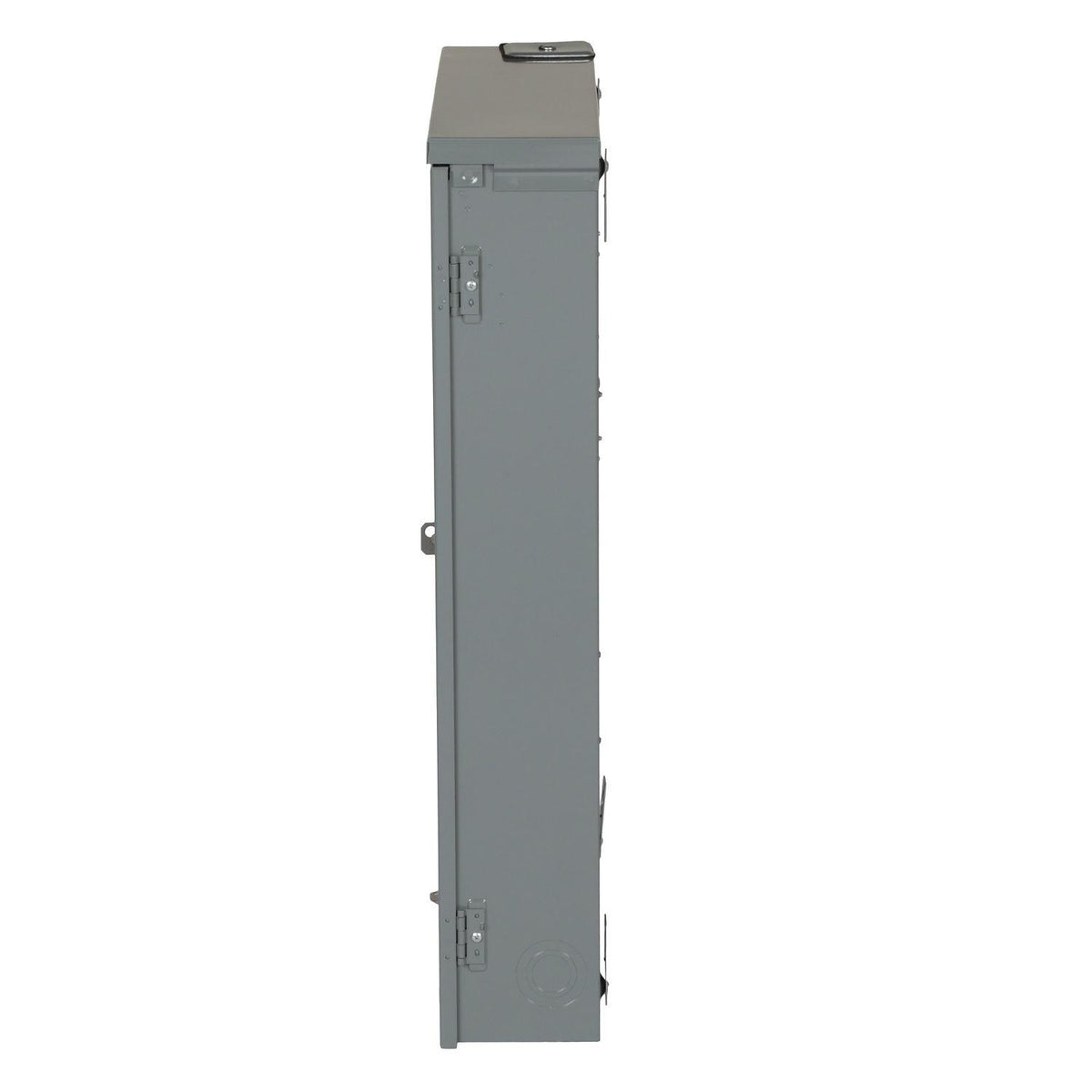

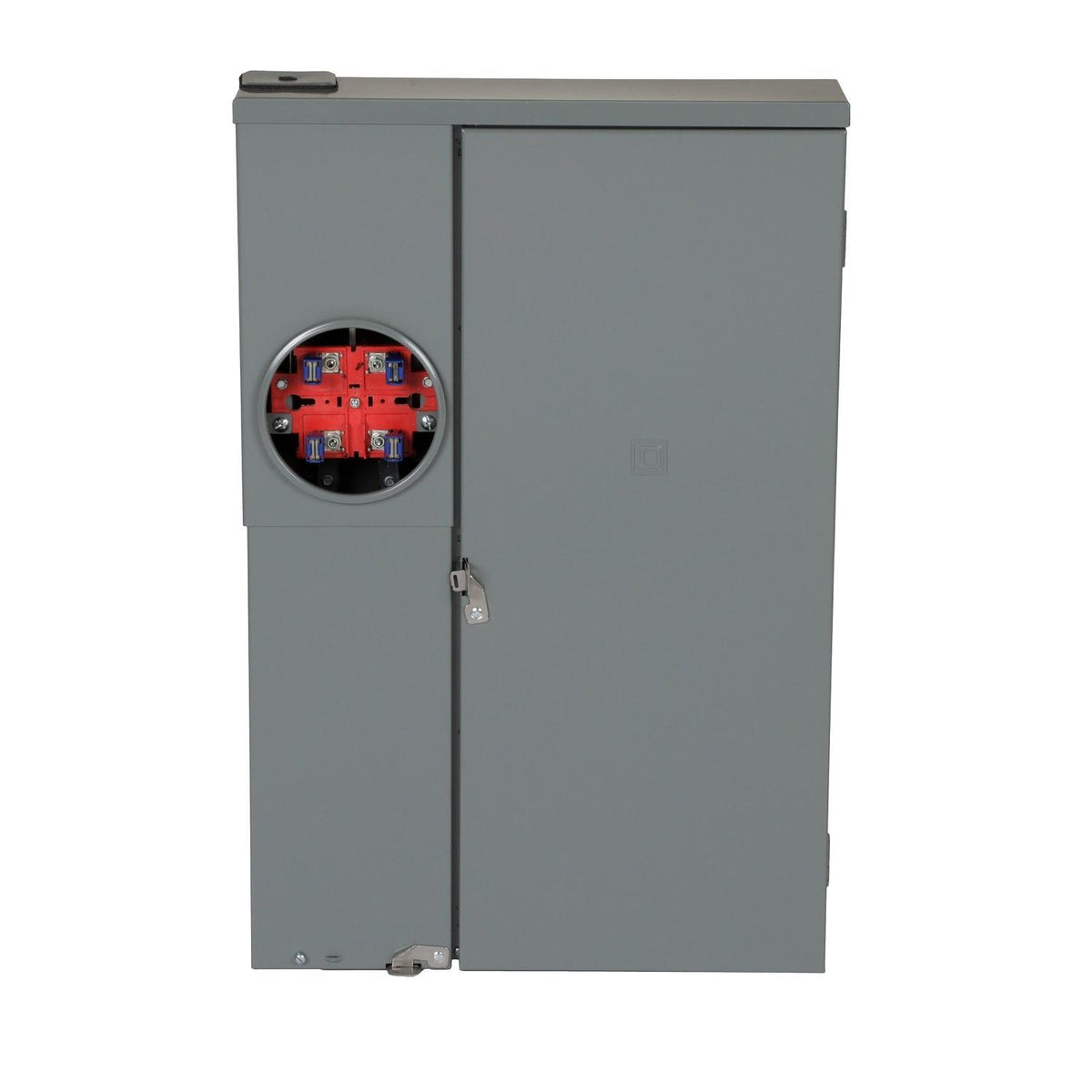

Combination Service Entrance Meter Main - Surface - 200 A

Combination Service Entrance Meter Main - Surface - 200 A

SC3042M200PS

$284.53
$284.53 $198.97
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Homeline ringless meter mains support standard utility meters and a main disconnect breakers
• This single compact solution provides a time and space saving solution for contractors and installers
• Suitable for use as service entrance equipment
• CSED integrate meter socket that, a main disconnect and load center into one compact design

DIMENSIONS

WIDTH

21.5 in

HEIGHT

37.3 in

WEIGHT

56.49 lb

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions

PRODUCT OVERVIEW

The Square D® Homeline® Load Centers and Homeline®Solar Ready PoN CSEDs, SC3042M200PS, provides metered service and a main circuit breaker and 30 full branch spaces up to 42 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.

SPECIFICATIONS

Amperage Rating

200 A

Cover Type

Ring

Dimensions

37.3 in H x 21.5 in W x 5.8 in D

Enclosure Type

NEMA 3R

Feed Type

Overhead/Underground

Hub Size

A

Mounting Type

Surface

Number of Jaws

4

Phase

1

Terminal Type

Line/Service Ground Lug

Type

30-Circuit 42-Space All-In-One Field Installed Rainproof

Wire Size

4 AWG to 250 kcmil Aluminum/Copper, 14 to 2/0 AWG Aluminum/Copper
