BRADFORD WHITE

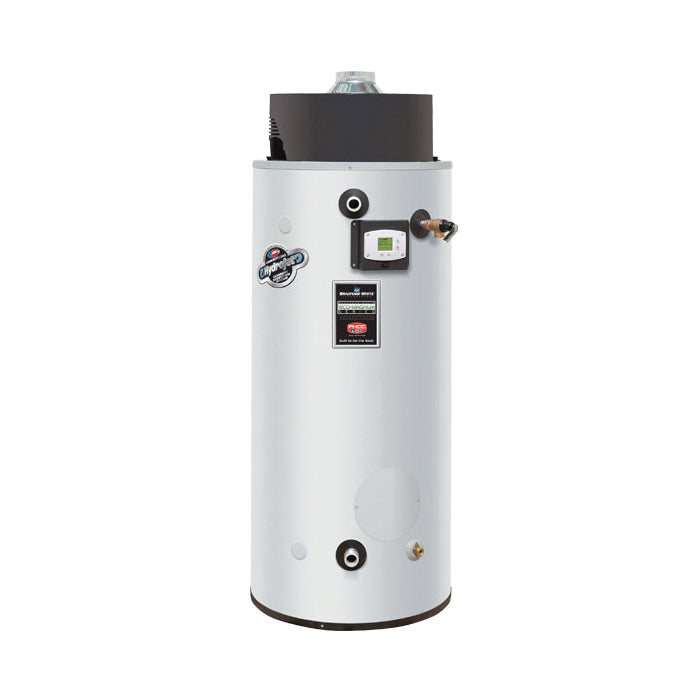

Commander Series - Gas Water Heater - Natural Gas - Steel

Commander Series - Gas Water Heater - Natural Gas - Steel

UCG100H1993N

$4,896.62
$4,896.62 $5,885.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• ICON HD™ - The proven design of an intelligent Honeywell® Integrated Control combines temperature control, diagnostic codes, and system functions and status into a single control with a digital LCD display
• Operation mode - Simple, intuitive temperature adjustment up to 180 deg F, the user can easily select between Fahrenheit and Celsius
• Service mode - The display has a "Service Mode" for changing the maximum set point and accessing information that may aid in the service of the water heater
• Premix power burner
• Low restriction brass drain valve
• Integrated exhaust system
• Sanitizing capability
• Factory installed Hydrojet® sediment reduction system - Cold water inlet sediment reducing device helps prevent sediment build up in the tank
• Vitraglas® lining
• Non-CFC foam insulation

DIMENSIONS

HEIGHT

73.25 in

WEIGHT

657 lb

WARRANTY

3 Years Limited on Tank/1 Year Limited on Component Parts

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Warranty Information
Product Brochure
Service Manual

PRODUCT OVERVIEW

The Commander Series™ is a new line of high efficiency, ultra low NOx, commercial gas water heaters featuring a unique down-fired pre-mix power burner that automatically regulates for optimum combustion and efficiency. Together with a two pass, multiple tube system, the Commander Series achieves excellent thermal efficiencies and meets the most stringent air quality standards for allowable NOx emissions.

SPECIFICATIONS

ASME Yes/No

No

Dimensions

28 in Dia x 29-5/8 in D x 73-1/4 in H

Domestic/Import

Domestic

Energy Efficiency

82%

Fuel Type

Natural Gas

Gas Connection

1/2 in

Heating Capacity

199999 Btu/hr

Ignition Type

Direct Spark

Material

Steel

Pressure Rating

150 psi

Recovery Rate

493 gph at 40 deg F Rise

Series

Commander Series™

Tank Capacity

100 gal

Temperature Rating

180 deg F
