Item Status: Discontinued

Availability is limited to remaining stock.

UEI TEST INSTRUMENTS

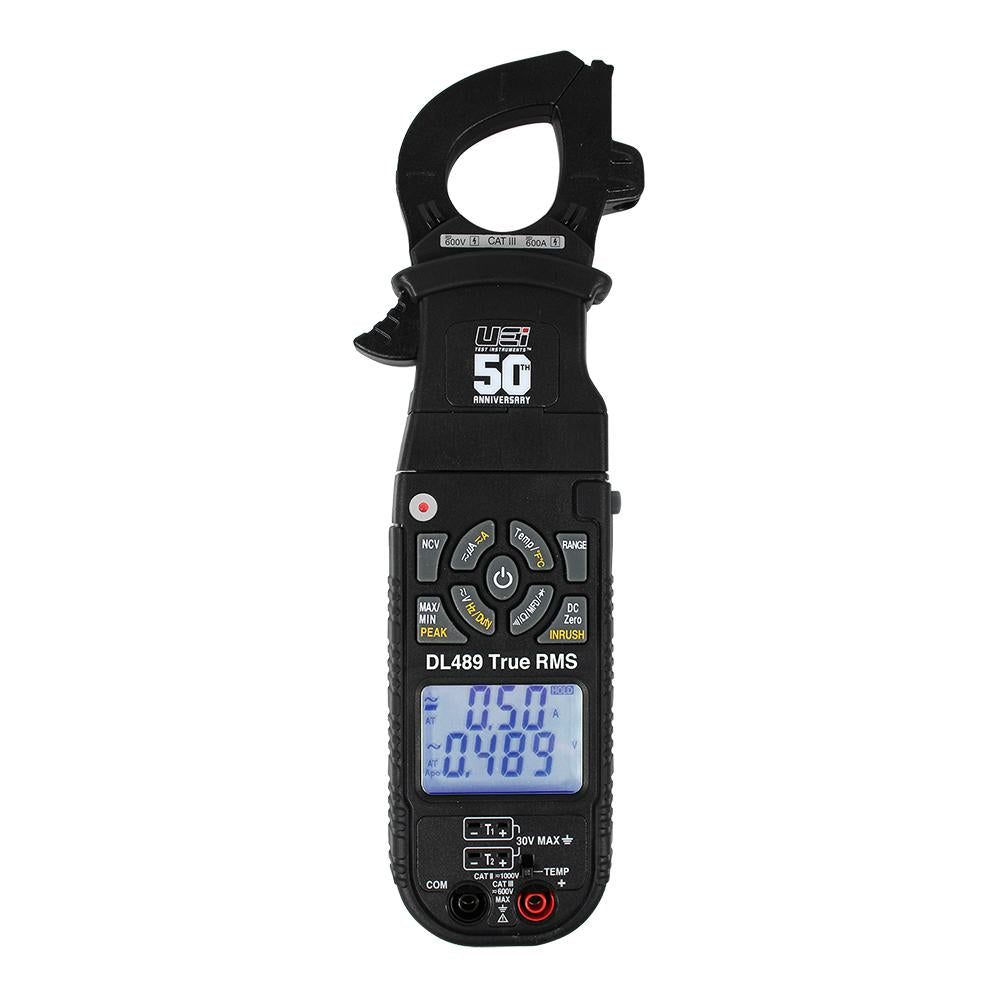

Commemorative Edition Premium Digital Clamp Meter - DL489

Commemorative Edition Premium Digital Clamp Meter - DL489

DL489

$210.58
$210.58 $161.04
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Dual temperature
• ¬µA/mA
• Capacitance 2000¬µF
• DC Amps through clamp jaw
• Frequency/Duty cycle
• LRA Inrush
• Data hold/Peak hold
• Diode test
• NCV detection
• Continuity

WARRANTY

2 years Limited

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

The DL489 True RMS clamp meter offers contractors better features, functions and safety in a commemorative edition housing. A complete meter with the precision of true RMS and the functionality your job requires. Featuring 600 A AC/DC, 750 VAC and 1000 VDC, resistance, capacitance, diode test, continuity, microamps and LRA inrush. The DL489 is the complete meter your job requires.

SPECIFICATIONS

AC Current Accuracy

+/-2% +8 Digits

AC Response

True RMS

Counts

6000

Dimensions

10.2 x 2.5 x 1.5 in

Display Type

Dual Backlit LCD

Electrical Ratings

750 V AC/1000 V DC, 600 A AC/DC, 2000 uF

Frequency Rating

99.999 Hz to 99.99 kHz

Jaw Capacity

Up to 1-1/4 in

Operating Temperature

-328 to 2462 deg F

Power Source

(6) AAA Batteries

Resistance

60 MOhm

Safety Rating

CAT III 600 V/CAT II 1000 V

Type

Commemorative Edition Premium

Voltage Accuracy

+/-1.0 % +3 Digits at V AC, +/-0.5 % +4 Digits to +/-0.8 % +10 Digits at V DC
