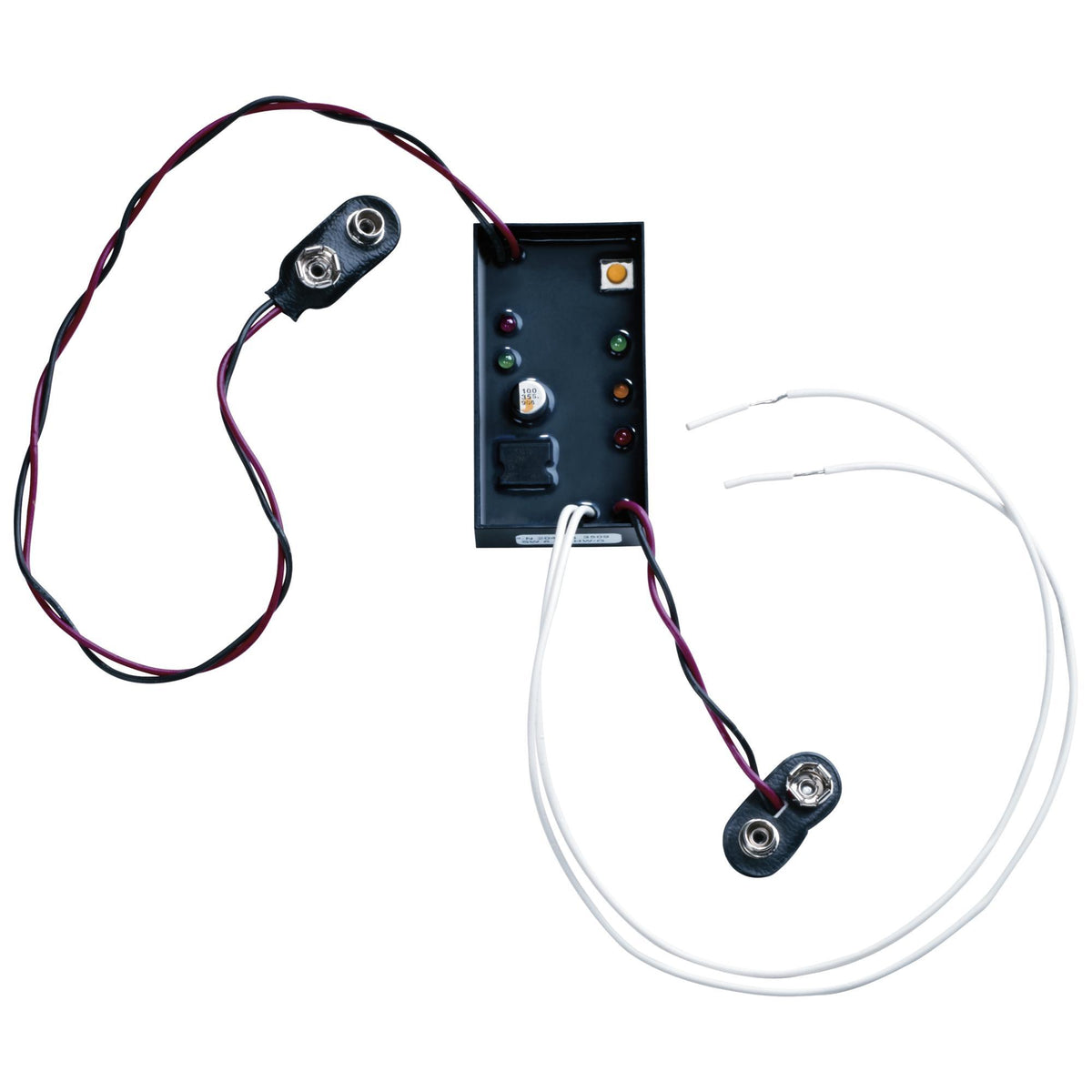

Commercial 061047A Hardwire Converter With Battery Backup, For Use With HDF® 590, 591 and 592 Series Battery Electronic Faucet, 24 V AC/6 V DC, Commercial

Commercial 061047A Hardwire Converter With Battery Backup, For Use With HDF® 590, 591 and 592 Series Battery Electronic Faucet, 24 V AC/6 V DC, Commercial

061047A

$61.42
$61.42 $87.60
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Converts Delta commercial 590, 591 and 592 Series battery electronic faucets to hardwire with battery backup
• 24 VAC at 60 Hz input voltage
• 6.4 VDC +/- 5 % output voltage
• 150 mA maximum output current
• -55 to 85 deg C operating temperature range
• Physical connections: No 22 AWG stripped primary connection/9 VDC snap secondary connection
• 22 AWG wire
• 12 in L wire
• Wire ends: Strip length of wires should be 0.375 in typical
