AMERICAN STANDARD

Commercial - Shower System Trim Kit - Pressure-Balance

Commercial - Shower System Trim Kit - Pressure-Balance

TU662SG213.002

$429.65
$429.65 $661.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• One-piece cartridge - simplifies installation and maintenance
• Double ceramic pressure balance cartridge - combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve assures a lifetime of drip-free performance and smooth handle operation
• Ceramic balancing spool maintains a constant output temperature in response to changes in relative hot and cold supply pressure
• Ceramic material is unaffected by mineral deposits and harsh water conditions
• Integrated check valves - engineered to eliminate cross flow
• Adjustable hot limit safety stop - limits the amount of hot water allowed to mix with cold, reduces the risk of accidental scalding
• Comfort zone - offers a wider range to fine tune the desired temperature
• Back-to-back capability - hot and cold can be reversed quickly and easily
• Trim kit - metal escutcheon with metal lever, red/blue indicator ring

DIMENSIONS

LENGTH

41.4 in

WIDTH

14.1 in

HEIGHT

8.3 in

WEIGHT

14.34 lb

WARRANTY

Lifetime Limited

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

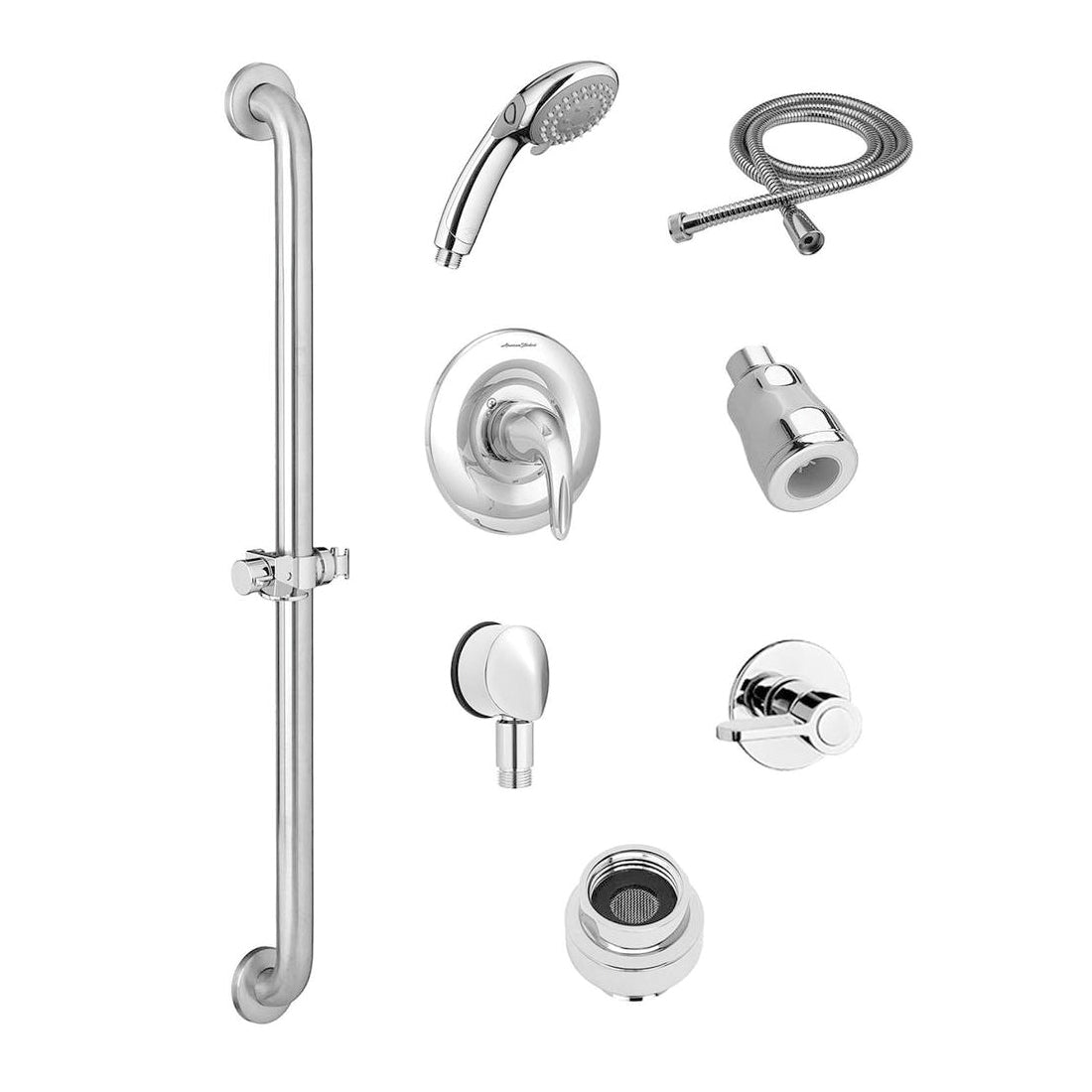

Commercial shower system trim kit includes metal valve trim, wall supply (with 1/2 in FNPT inlet and 1/2 in NPSM male outlet), a 59 in metal shower hose, vacuum breaker, a 3-function hand shower with non-positive shut-off, 2-way diverter, fixed showerhead and a 36 in slide-grab bar. One piece double ceramic pressure balance cartridge maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Integral check valves prevent cross flow. Adjustable hot limit safety stop. Back-to-back capable. Durable valve trim with metal handle and escutcheon. 36 in long combination slide bar/grab bar. 1-1/2 in Dia stainless steel bar that meets ANSI standard 250 lb pull test. Polished chrome hand shower holder with ADA compliant lever handle.

SPECIFICATIONS

Collection

Commercial

Dimensions

41.4 in L x 14.1 in W x 8.3 in H

Domestic/Import

Import

Flow Rate

1.5 gpm
