SPEARS

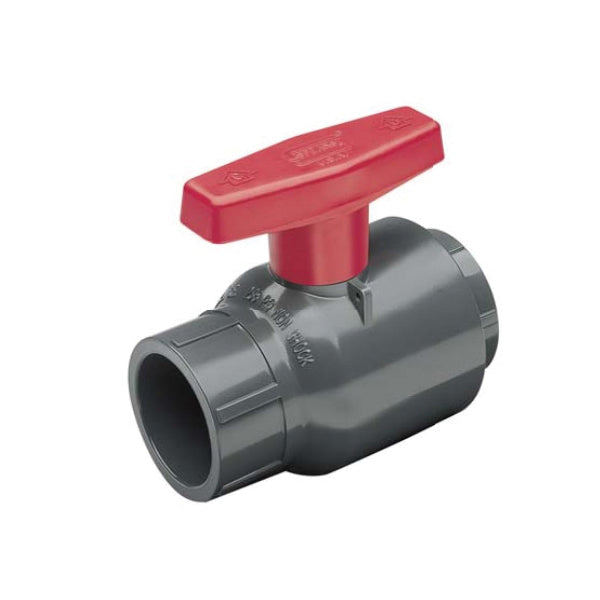

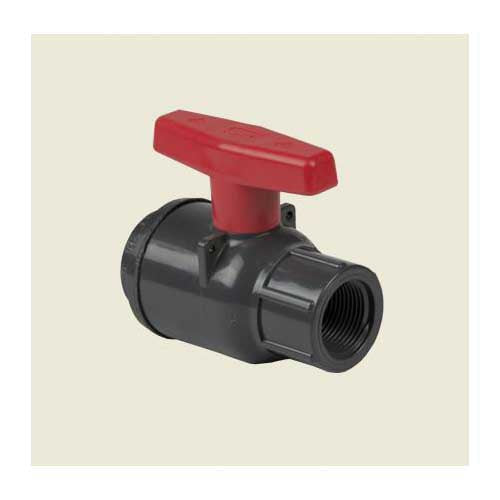

Compact - 1/2" Regular Style Ball Valve with Handle - PVC

Compact - 1/2" Regular Style Ball Valve with Handle - PVC

2131-005



Regular price $29.84
Sale price $29.84 Regular price $32.25
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Chemical and corrosion resistant PVC construction
• High impact polypropylene handle
• SCH 80/XH full-bore design
• Spears® single O-Ring Safe-T-Shear® stem design
• Self adjusting PTFE floating seat design
• Suitable for vacuum service
• Assembled with silicone-free, water soluble lubricant
• Maintenance-free sealed unit
• Not for distribution of compressed air or gas
• Rated to 200psi at 73 deg F

DIMENSIONS

WEIGHT

0.26 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


All thermoplastic ball valves shall be Compact sealed unit type constructed from PVC Type I, ASTM D 1784 Cell Classification 12454 or CPVC Type IV, Cell Classification 23447. All O-rings shall be EPDM or FKM. All valves shall have Safe-T-Shear® stem and Polypropylene handle. All EPDM valves shall be certified by NSF International for use in potable water service. All 1/2 in to 2 in valves shall be pressure rated at 235 psi, all 3 in to 6 in and all flanged valves shall be pressure rated at 150 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company.


SPECIFICATIONS

Body Material

PVC

Domestic/Import

Domestic

End Style

FNPT

Inlet to Outlet Length

3-3/8 in

Media

Water

Nominal Size

1/2 in

Pressure Rating

235 psi

Series

Compact

Softgoods Material

FKM

Temperature Rating

140 deg F

Top to Inlet Center

2-5/16 in

Trim Material

PVC Stem

Type

Regular Style
