FIELDPIECE

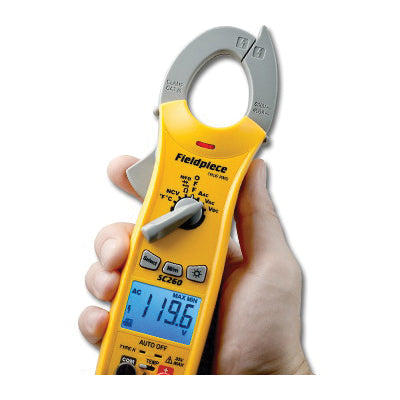

Compact Clamp Meter - 400 A

Compact Clamp Meter - 400 A

SC260



Regular price $160.74
Sale price $160.74 Regular price $114.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• True RMS
• Bright backlight
• Non-contact voltage alert
• 40 Mohm with 0.01 resolution
• Diode test
• Low battery indicator
• Hi-voltage warning

DIMENSIONS

WIDTH

67.4 mm

HEIGHT

205.5 mm

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.


SPECIFICATIONS

AC Response

100 ms

Counts

4000

Dimensions

205.5 mm H x 67.4 mm W x 45.1 mm D

Display Type

LED

Electrical Ratings

400 A

Frequency Rating

50 to 500 Hz

Operating Temperature

32 to 122 deg F

Power Source

Alkaline Battery

Resistance

40 mOhm

Safety Rating

600 V

Type

Compact
