ELKAY

Concealed Deck Bathroom Faucet - 1-1/8" - Deck Mount

Concealed Deck Bathroom Faucet - 1-1/8" - Deck Mount

LK500GN05L2

$367.29
$367.29 $477.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• ADA COMPLIANT: Faucet is ADA compliant.
• LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
• LOW FLOW: Includes water-saving features.
• SOLID BRASS CONSTRUCTION: Built for long-term durability.
• INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
• SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
• 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.

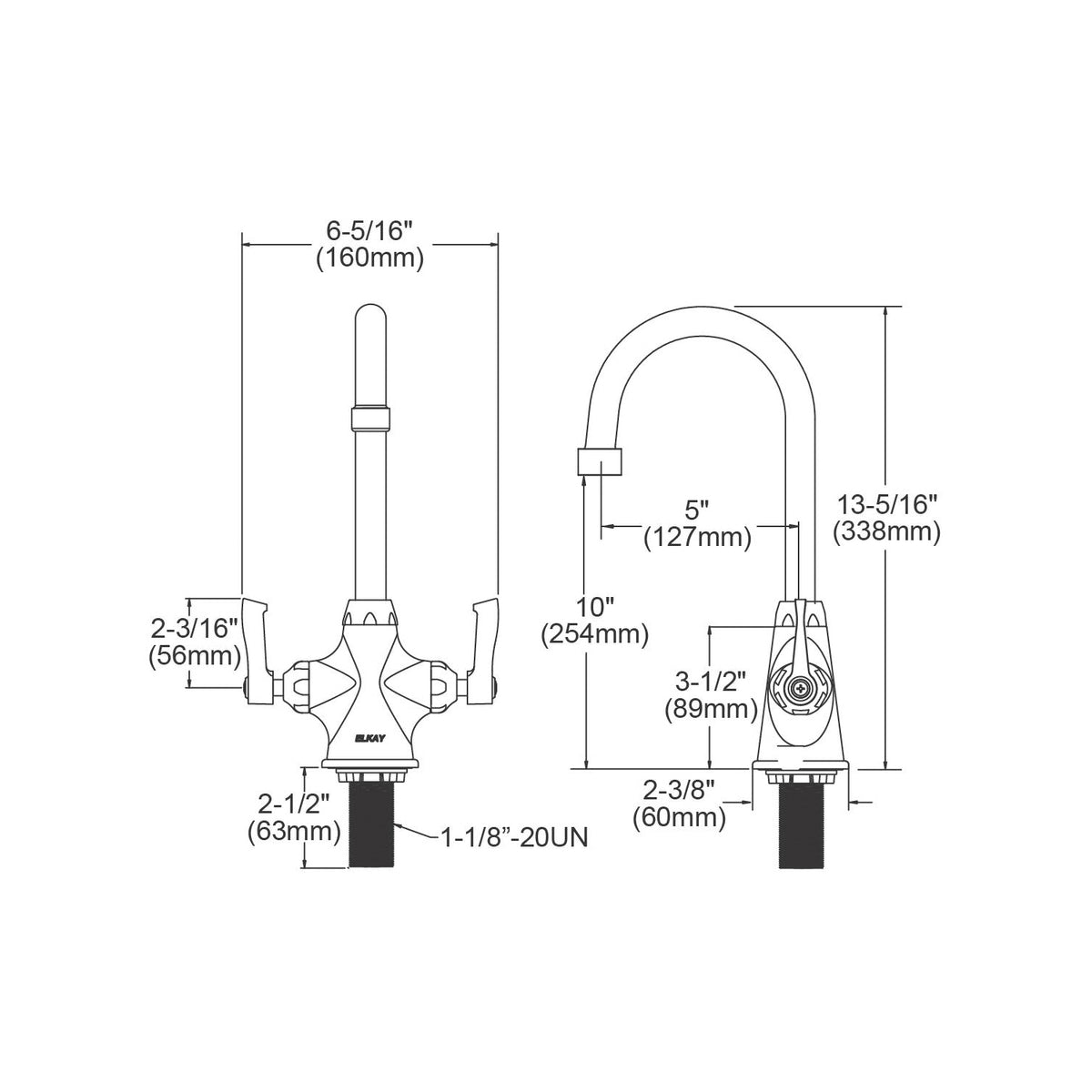

DIMENSIONS

LENGTH

6.31 in

HEIGHT

13.31 in

WEIGHT

5.75 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual
Warranty Information

PRODUCT OVERVIEW

Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

SPECIFICATIONS

Commercial/Residential

Commercial

Connection Size

1-1/8 in

Connection Type

Unified Screw Threaded

Dimensions

6-5/16 in L x 13-5/16 in H

Domestic/Import

Import

Flow Rate

1.5 gpm

Handle Type

Lever

Material

Solid Brass

Maximum Deck Thickness

2-1/2 in

Mounting Type

Deck

Number of Faucet Holes

1

Number of Handles

2

Side Spray(Y/N)

No

Spout Height

10 in
