ASURITY

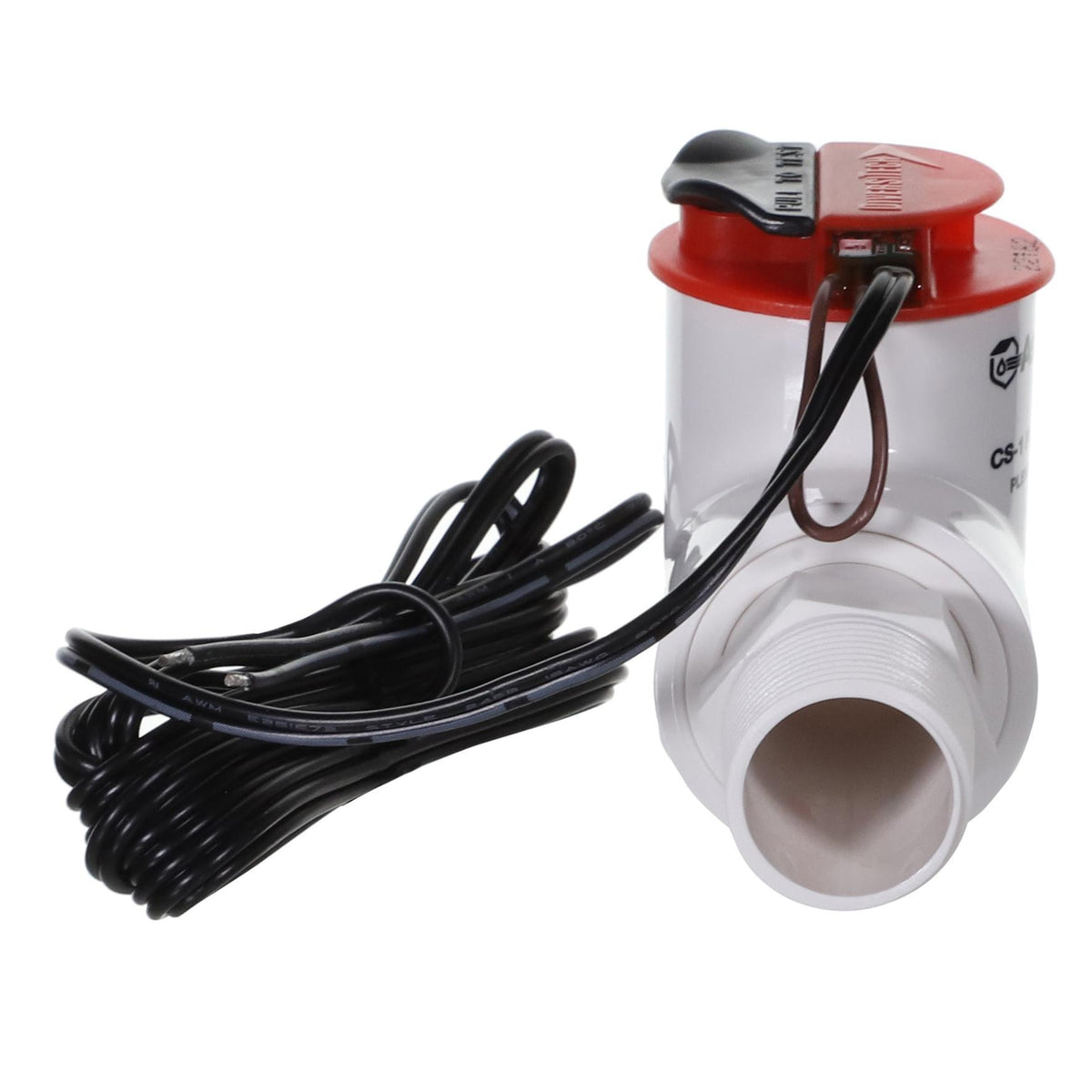

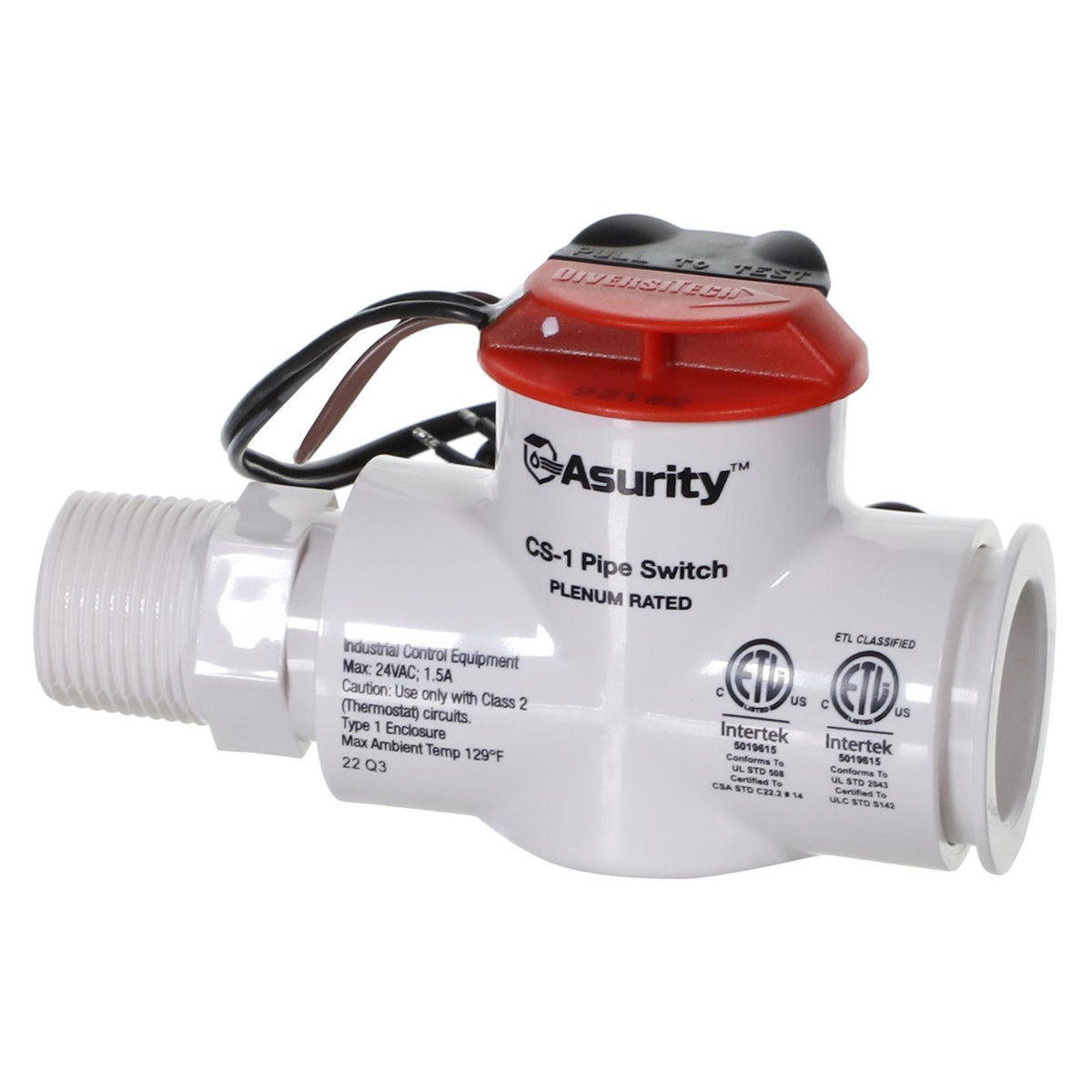

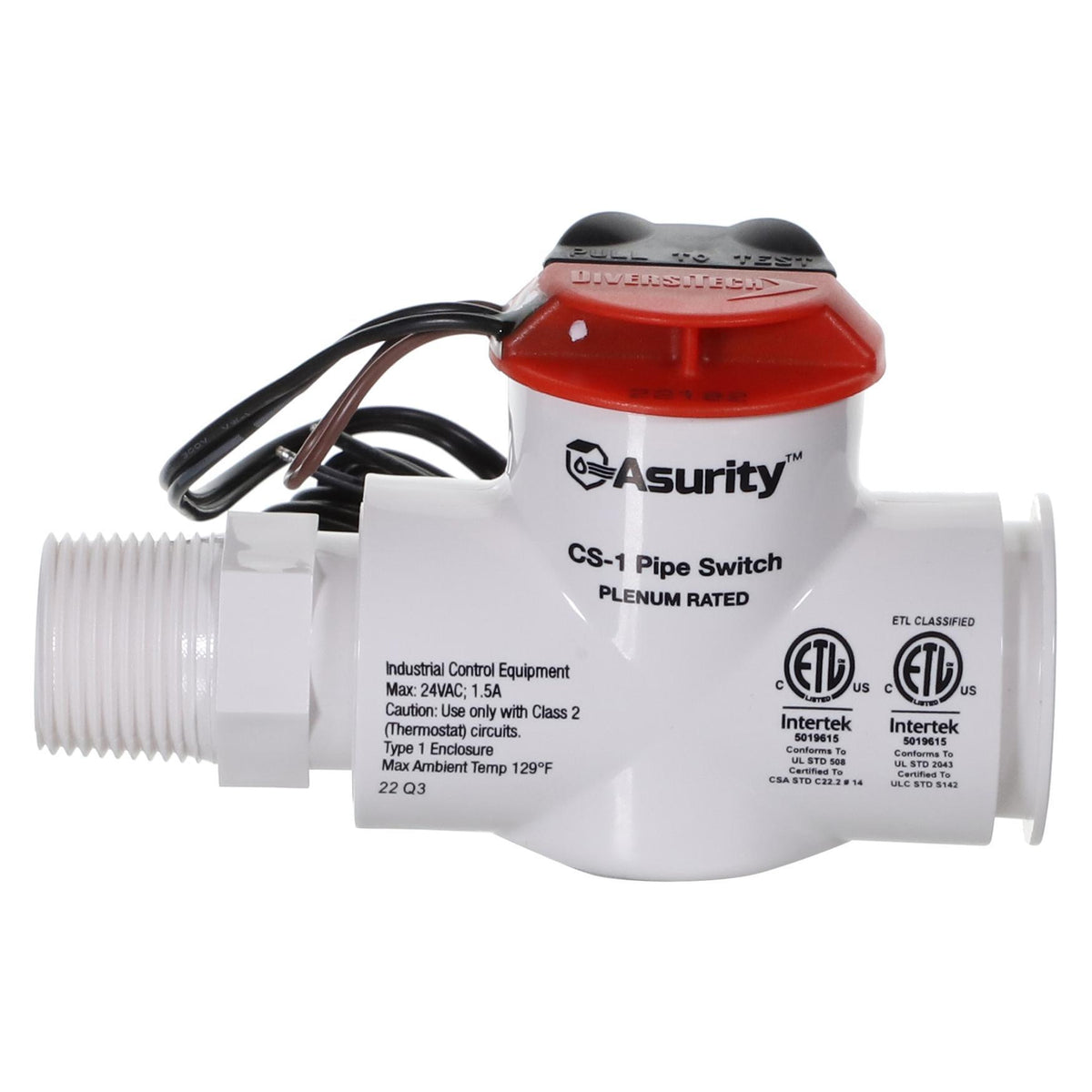

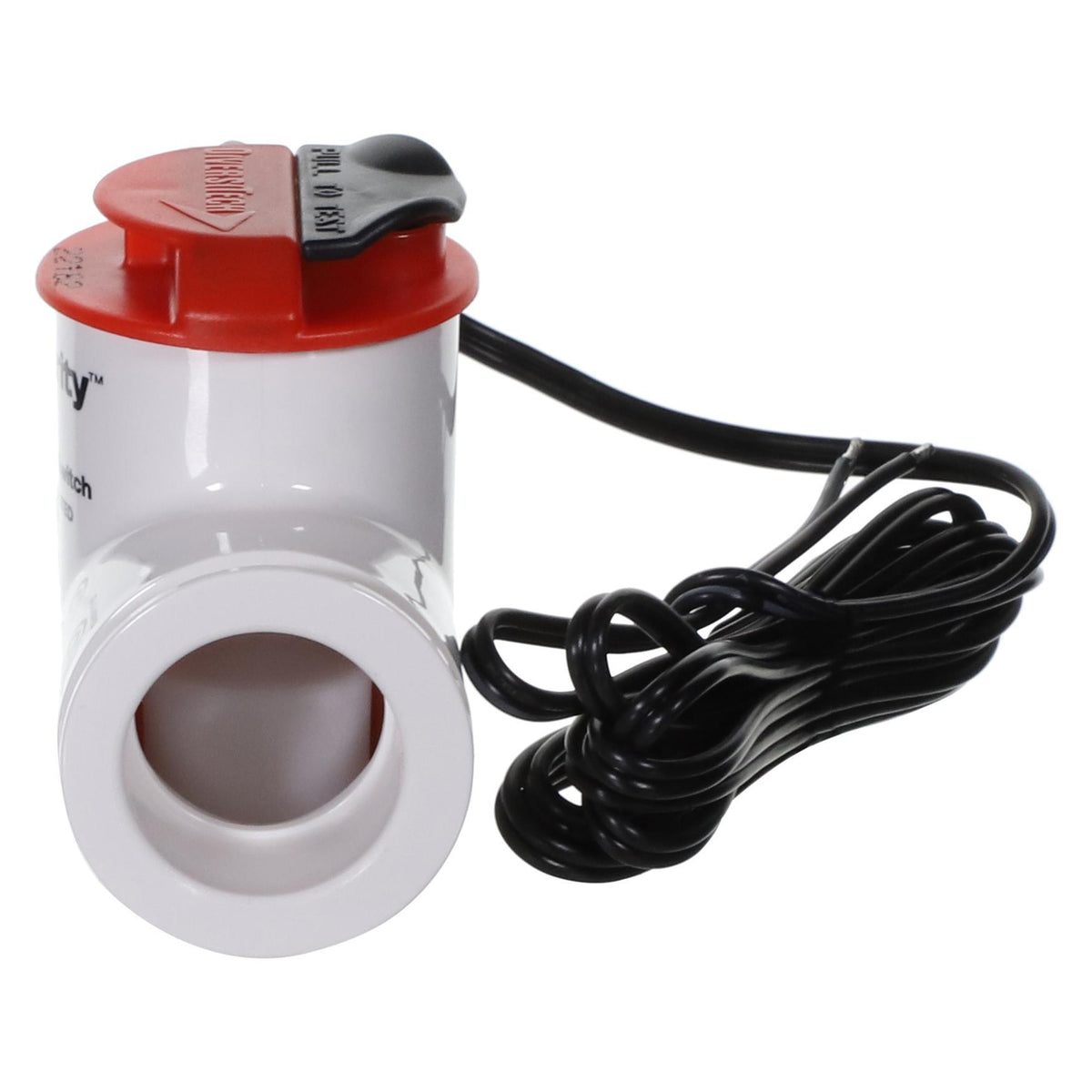

Cs-1 Tee Switch - 24 V AC

Cs-1 Tee Switch - 24 V AC

DIVCS-1

$26.69
$26.69 $16.74
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• This switch shuts down the HVAC system to prevent flood damage
• For Standard and Plenum Rated installations in Primary or Auxiliary lines
• LED illuminates when condensate line is blocked

DIMENSIONS

WIDTH

5.43 in

HEIGHT

1.97 in

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

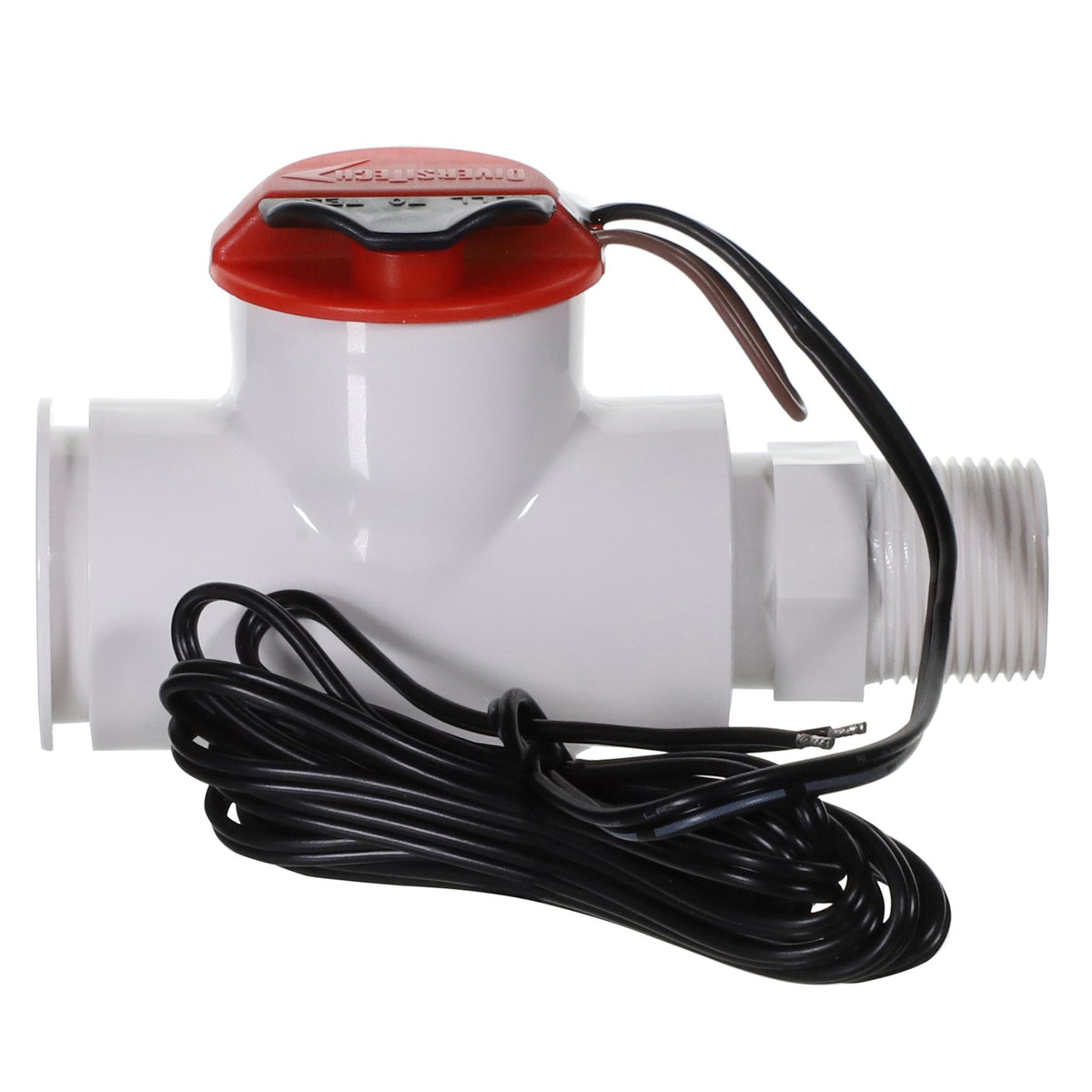

The Asurity® CS-1 Pipe-Mounted Tee Switch is simple to install and service, and extremely reliable. Three installation configurations include horizonal and vertical drain line and auxiliary primary drain pan. As water level in the drainpipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system, preventing water from overflowing and causing damage to doors, walls and ceilings. The durable, precise magnetic reed switch will not rust, operating smoothly every time.

SPECIFICATIONS

Amperage Rating

1.5 A

Dimensions

1.97 in H x 5.43 in W x 8.23 in D

Domestic/Import

Import

Specifications

24 Voltage Rating, 1.5 Amperage

Voltage Rating

24 V AC
