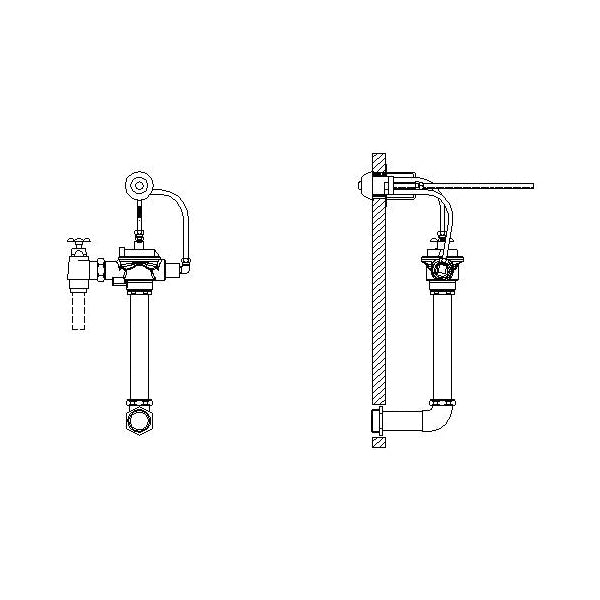

Concealed Manual Flush Valve, 1-1/2 in Inlet, 1-1/2 in Spud

• Quiet action, Teck® exposed diaphragm flush valve
• Adjustable 110 mm to 132 mm inlet/valve outlet centers
• Vacuum breaker
• Renewable seat
• Chloramine resistant diaphragm attached to guide with metal retainer
• Pressure loss check angle stop with wheel handle
• Vandal resistant handle control can easily be located and installed anywhere within 6m (20') of flush valve
• Standard flush valve will install on all walls 0 mm to 318 mm (12-1/2 in) thick
• With 1-1/2 in MIP on outlet tube for prison water closet with 1-1/2 in FIP back spud
• Vandal resistant metal "non hold open" 5/8 in (16 mm) Dia push button actuator
