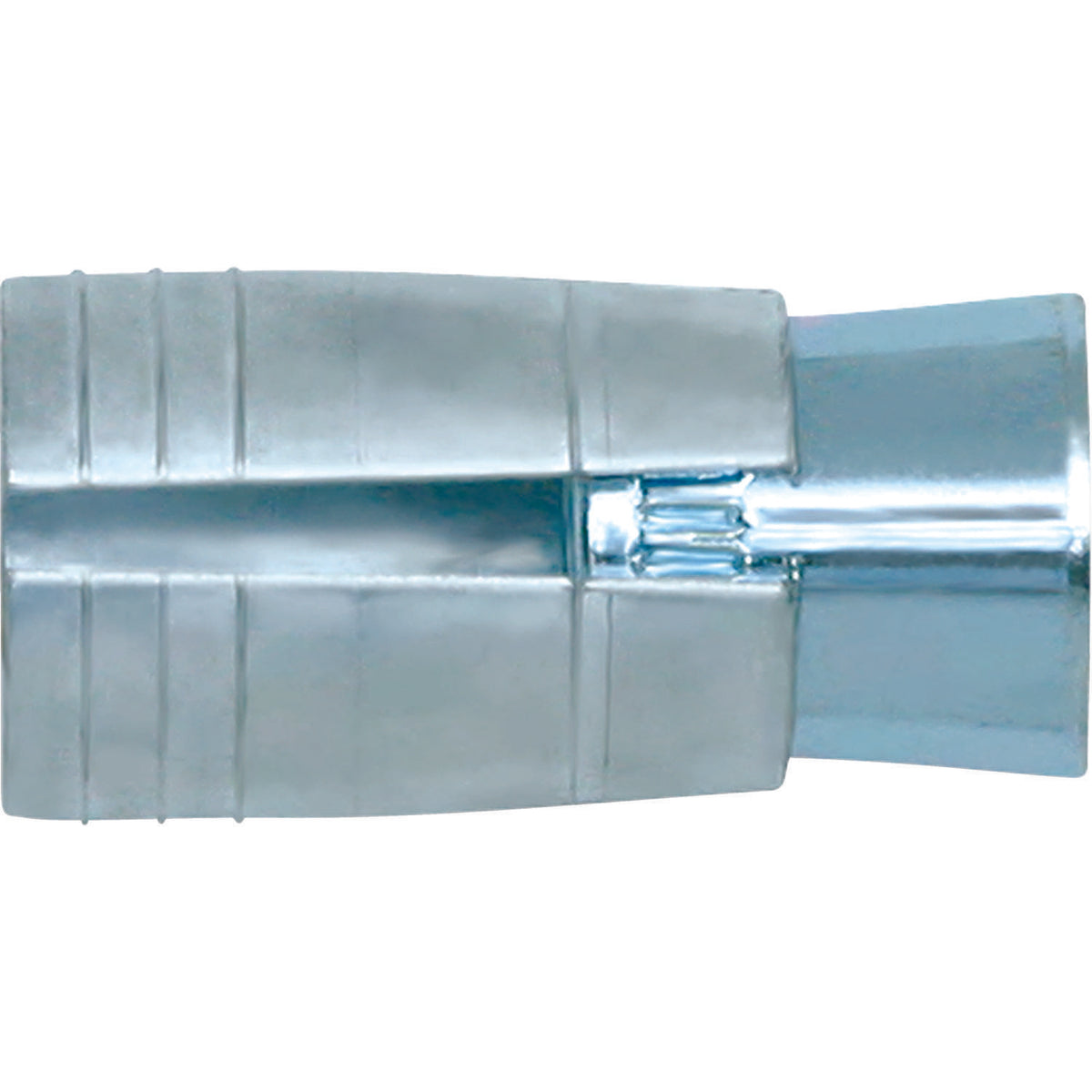

DeWALT® 09340-PWR Hollow-Set™ Dropin™ Drop-In Flange Internally Threaded Expansion Anchor, 3/8 in, 316 Stainless Steel, 5/8 in Drill, 1 in D Min Embedment

DeWALT® 09340-PWR Hollow-Set™ Dropin™ Drop-In Flange Internally Threaded Expansion Anchor, 3/8 in, 316 Stainless Steel, 5/8 in Drill, 1 in D Min Embedment

09340-PWR

$3.90
$3.90 $1.95
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Internally threaded anchor for easy bolt removability and service work
• Versatile setting options allows for hollow or solid base materials
• Unique expansion design allows for anchoring in thin-walled base materials
• Normal weight concrete, precast hollow core plank, hollow or grout filled concrete masonry (CMU) and brick masonry are applicable materia
• Ultimate load capacity: 1370 lb tensile strength when embedded in 2000 psi, 2070 lb tensile strength when embedded in 4000 psi and 2290 lb tensile strength when embedded in 6000 psi normal-weight concrete

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Hollow-Set Dropin™ Anchor is designed for anchoring in hollow base materials such as hollow concrete block and precast hollow core plank. It can also be used in solid base materials. Concrete masonry blocks often have a maximum outer wall thickness of 1-1/2 in. During the drilling process, spalling on the back side of the wall often decreases the wall thickness, leaving only 1 in or less for anchoring. The Hollow-Set Dropin™ is designed to perform in this environment, where most conventional style Anchors will not function properly.
