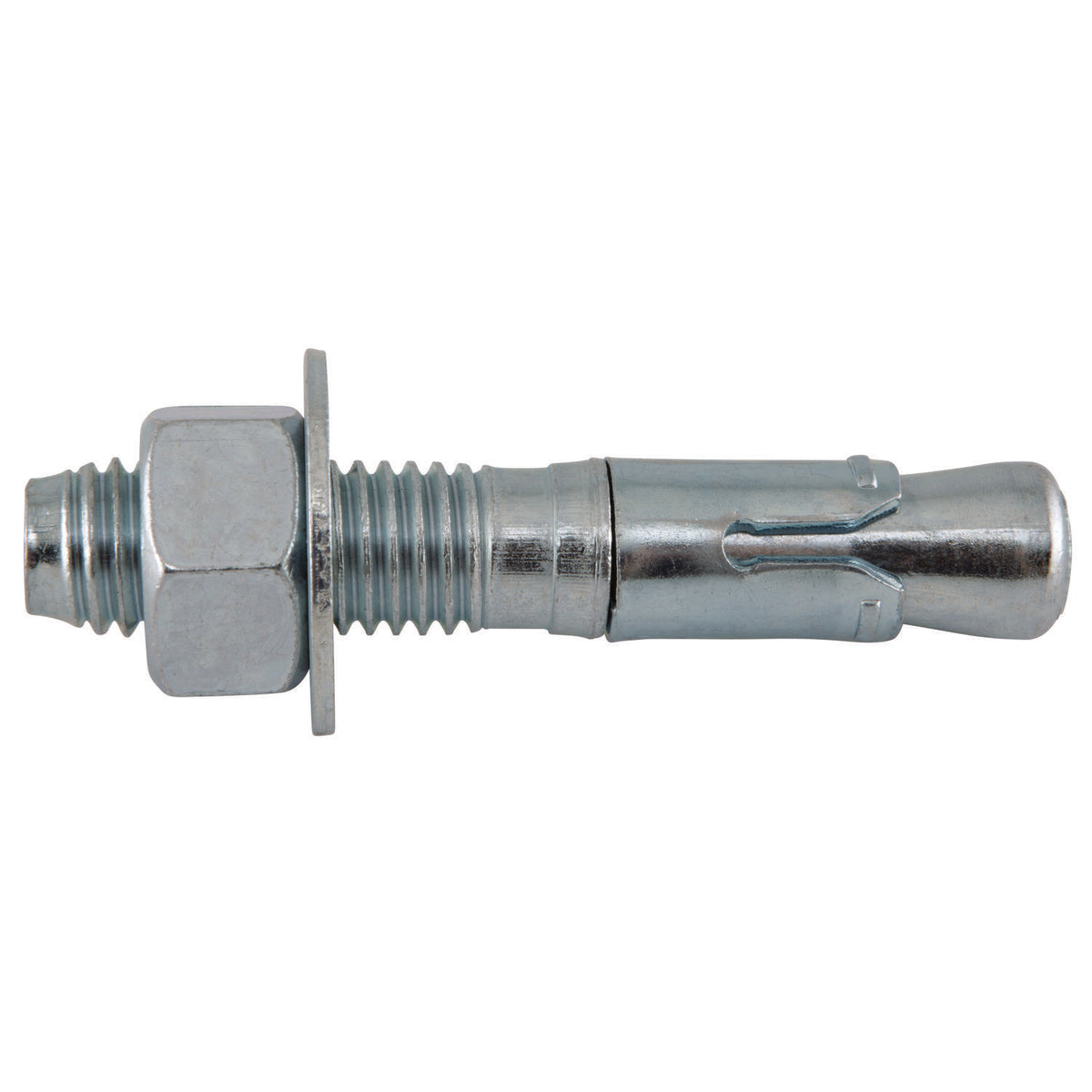

DeWALT® 7430SD1-PWR SD1 Expansion Wedge Anchor, 5/8 in Dia, 3-1/2 in OAL, 1-1/2 in L Thread, Carbon Steel, Zinc Plated

DeWALT® 7430SD1-PWR SD1 Expansion Wedge Anchor, 5/8 in Dia, 3-1/2 in OAL, 1-1/2 in L Thread, Carbon Steel, Zinc Plated

7430SD1-PWR

$2.20
$2.20 $1.10
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Consistent performance in high and low strength concrete
• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading
• Nominal drill bit diameter same as Anchor diameter
• Length ID code and identifying marking stamped on head of each Anchor
• Allowable load capacity - 1240 lb tensile strength when embedded in 2500 psi, 1360 lb tensile strength when embedded in 3000 psi, 1570 lb tensile strength when embedded in 4000 psi normal-weight concrete
• 35/64 in nut height
• 15/16 in wrench
• 80 ft-lbf installation torque
• 11/16 in fixture clearance hole

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
