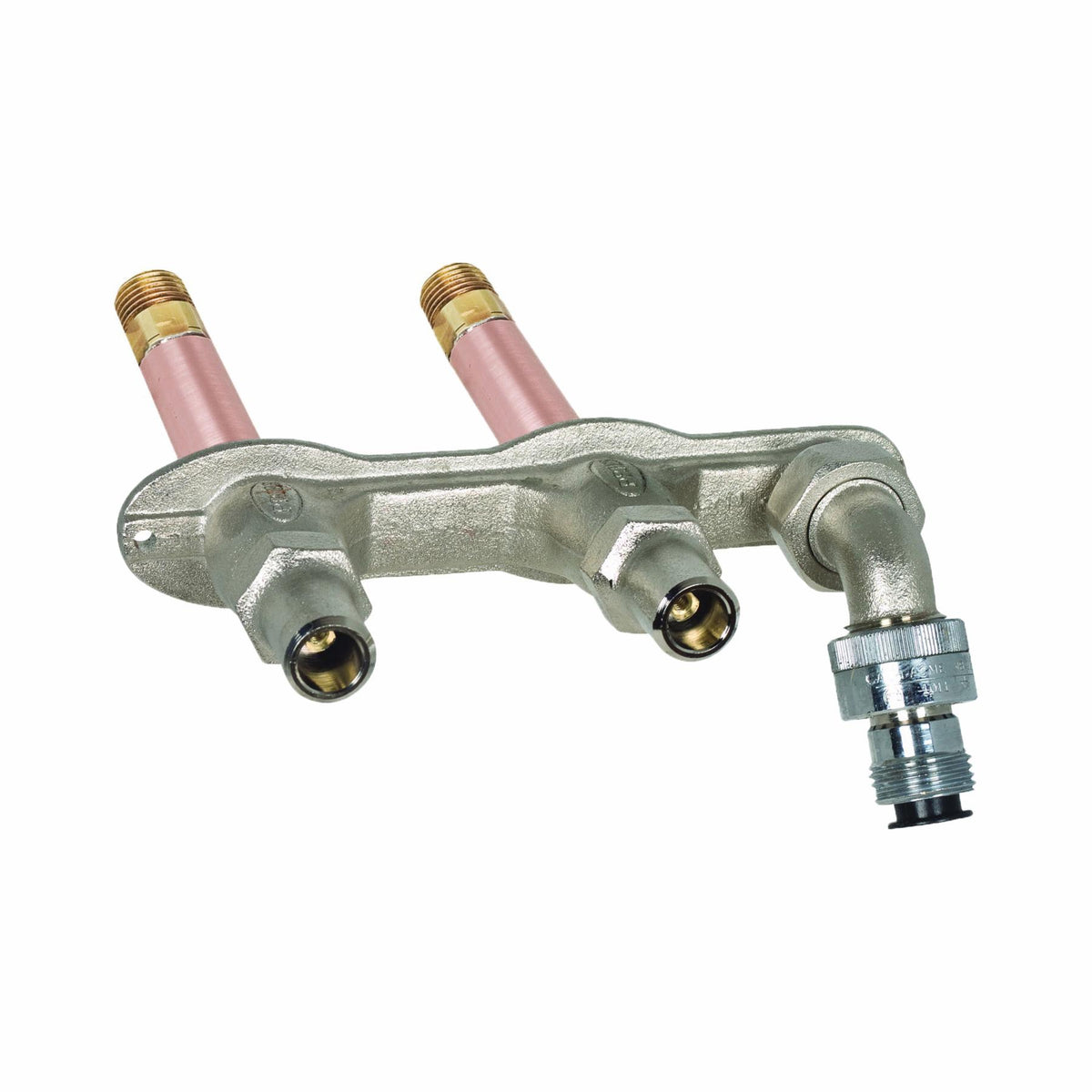

Diamond C-208 - 1/2" Hot and Cold Wall Hydrant - C-208D16

Diamond C-208 - 1/2" Hot and Cold Wall Hydrant - C-208D16

C-208D16



Regular price $231.54
Sale price $231.54 Regular price $294.43
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Horizontal or vertical installation with same product
• Anti-siphon vacuum breaker with backflow check valve
• Internal checks to prevent thermal migration
• 3-1/2 in center-to-center installation template provided
• Enclosed screw holes easily secure mounting screws
• Solid brass body, valve stem cap, seat and stem ends
• Satin nickel plated body maintains attractive finish
• Stainless steel seat washer screw and handle screw
• Durable ACME threads secure stem at seat end
• Lock shield cap for stronger valve design

DIMENSIONS

LENGTH

16 in

WEIGHT

4 lb

PRODUCT OVERVIEW


PRIER C-208 provides a year round source of tempered water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. This hydrant is loose key operated to prevent unauthorized operation or accidental operation by children. Due to its patented design, the same product is available as horizontal or vertical. Ordering the C-108 gives you the same style hydrant but with handle operated for cold side and loose key operated for hot side. The C-108 also includes a red handle that can be used in place of the loose key operation. The PRIER C-208 has all the characteristics of the historically proven C-134 with the added protection of a self-draining Anti-Siphon Vacuum Breaker and Backflow Check Valve. It is available from stock in lengths from 1-1/2 to 24 in, and longer sizes can be made by request.


SPECIFICATIONS

End Style

MNPT x C

Material

Brass

Nominal Size

1/2 in

Series

Diamond C-208

Type

Hot and Cold
