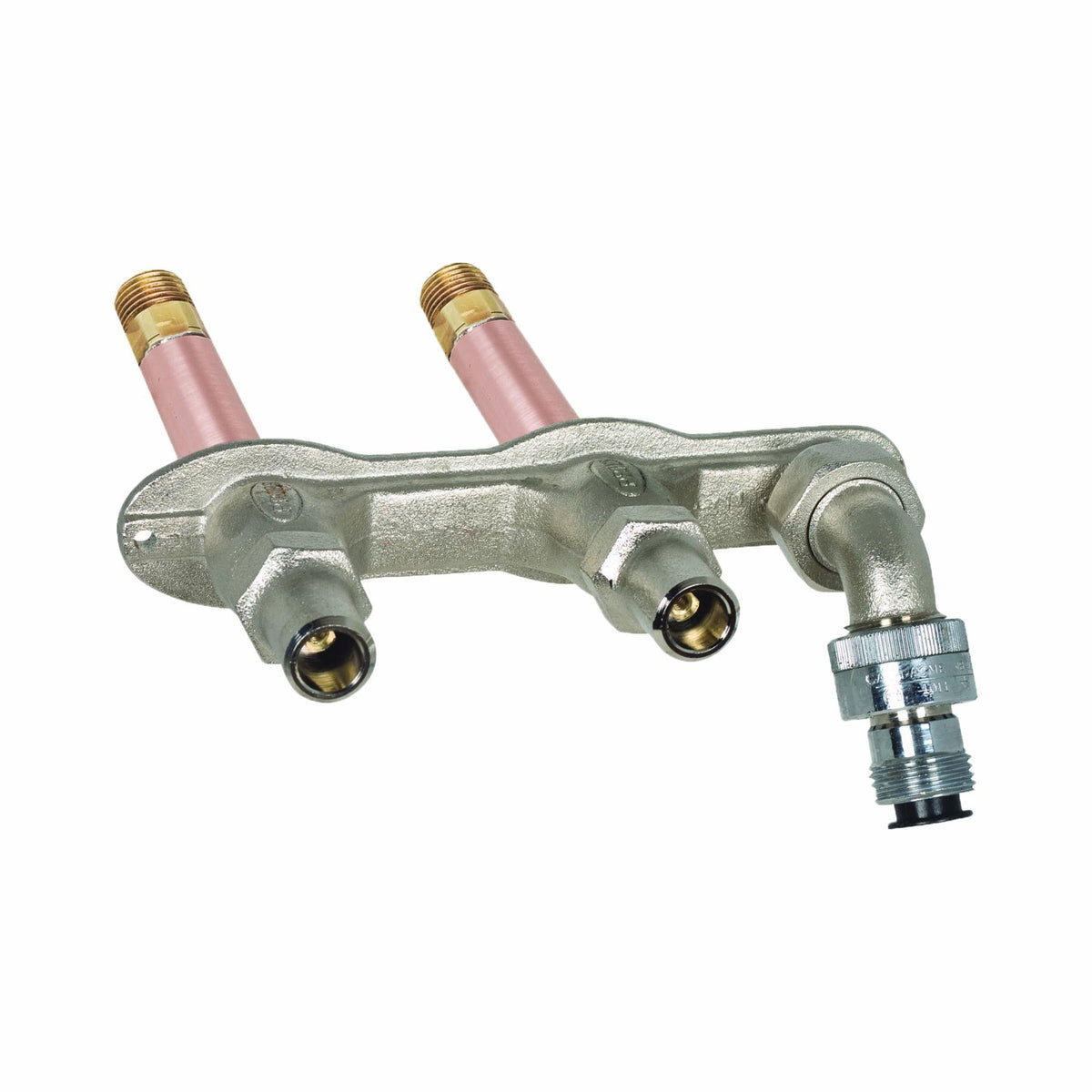

Diamond C-208 - 1/2" Hot and Cold Wall Hydrant - MNPT x C
Diamond C-208 - 1/2" Hot and Cold Wall Hydrant - MNPT x C
C-208D06
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Hot and cold blending valve
• Anti-siphon vacuum breaker with backflow check valve
• Adjustable spigot allows for vertical and horizontal installation
• Satin nickel plated for long life
• Solid brass body, valve stem cap, seat and stem ends
• 5 full threads for hose connection
• Stainless steel seat washer screw and handle screw
• Extended lockshield to prevent unauthorized use
• Installation template provided
• Loose key hot and cold anti-siphon hose thread wall faucet
DIMENSIONS
DIMENSIONS
|
LENGTH |
6 in |
|---|---|
|
WEIGHT |
3.33 lb |
PRODUCT OVERVIEW
PRIER C-208 provides a year round source of tempered water to areas of structures that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. This hydrant is loose key operated to prevent unauthorized operation or accidental operation by children. Due to its patented design, the same product is available as horizontal or vertical. Ordering the C-108 gives you the same style hydrant but with handle operated for cold side and loose key operated for hot side. The C-108 also includes a red handle that can be used in place of the loose key operation. The PRIER C-208 has all the characteristics of the historically proven C-134 with the added protection of a self-draining Anti-Siphon Vacuum Breaker and Backflow Check Valve. It is available from stock in lengths from 1-1/2 to 24 in, and longer sizes can be made by request.
SPECIFICATIONS
|
End Style |
MNPT x C |
|---|---|
|
Material |
Brass |
|
Nominal Size |
1/2 in |
|
Series |
Diamond C-208 |
|
Type |
Hot and Cold |

$200.53
