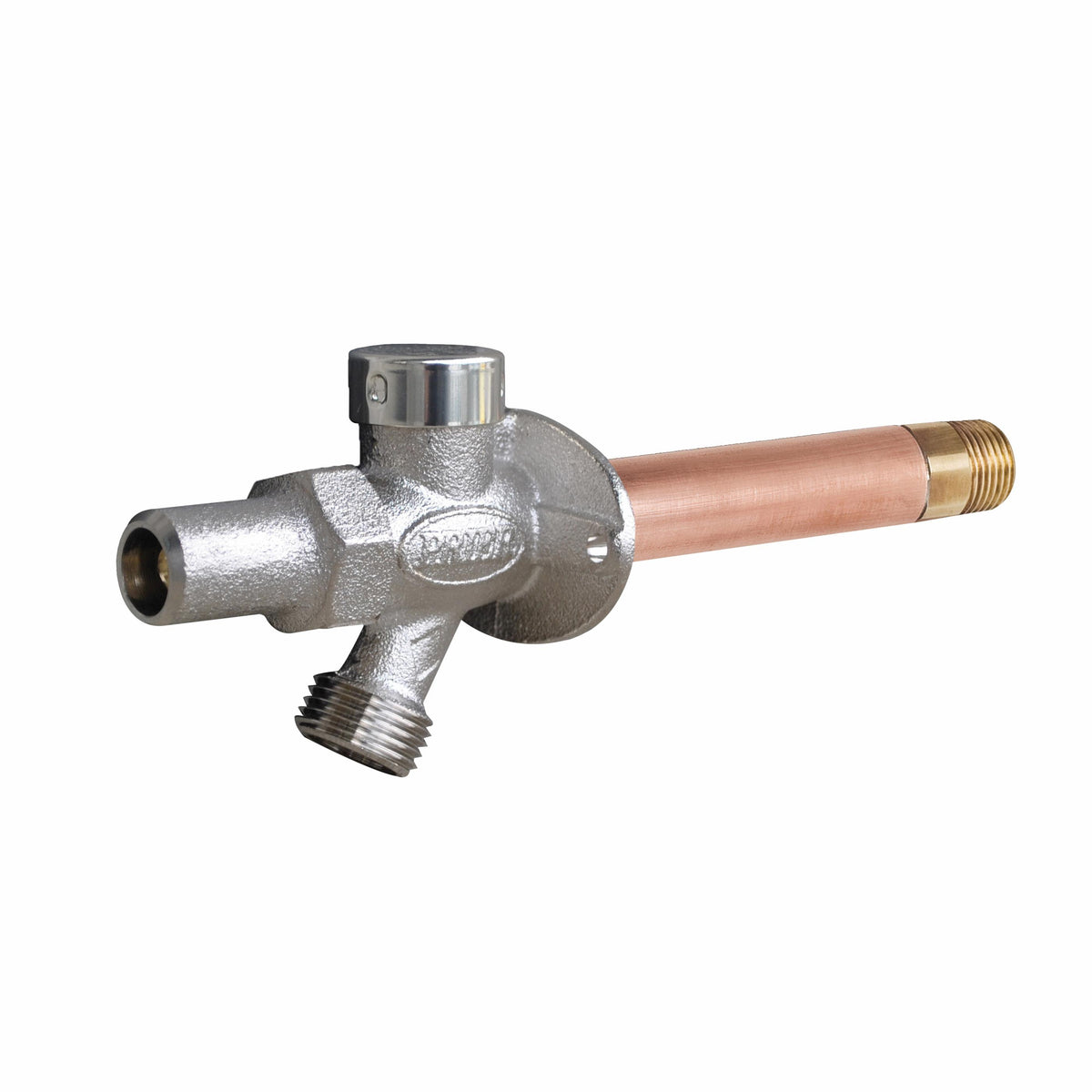

Diamond P-264 - 1/2" Freezeless Wall Hydrant - P-264D16
Diamond P-264 - 1/2" Freezeless Wall Hydrant - P-264D16
P-264D16
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Quarter-turn soft-grip coated cast aluminum handle
• Anti-siphon vacuum breaker with backflow check valve
• Aluminum vacuum breaker cap with increased durability
• Integral cast flange with built-in drainage pitch
• Enclosed screw holes easily secure mounting screws
• Solid brass body, valve stem cap, seat and stem ends
• Satin nickel plated body maintains attractive finish
• Stainless steel seat washer screw and handle screw
• Durable ACME threads secure stem at seat end
• Lock shield cap for stronger valve design
DIMENSIONS
DIMENSIONS
|
LENGTH |
16 in |
|---|---|
|
WEIGHT |
3 lb |
PRODUCT OVERVIEW
The PRIER P-264 has all the characteristics of the historically proven PRIER wall hydrants with the added benefit of an easy operating quarter turn valve that features a proven compression type seal, not the brittle plastic discs available in the competitors products. The P-264 features a soft grip operating handle for easy operation in wet conditions or cold weather. Ordering the P-164 gives you the same style hydrant but with a green operating handle. The P-264 is available in stock lengths from 1-1/2 to 24 in, and special lengths can be made by request.
SPECIFICATIONS
|
End Style |
MNPT x C |
|---|---|
|
Handle Type |
Soft |
|
Material |
Brass |
|
Nominal Size |
1/2 in |
|
Series |
Diamond P-264 |
|
Type |
Freezeless |

$104.72
