KLEIN

Digital Insulation Resistance Tester - 1000 V AC/DC

Digital Insulation Resistance Tester - 1000 V AC/DC

ET600

$186.19
$186.19 $139.99
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Voltage Tester tests insulation resistance up to 4000M at 125V, 250V, 500V, and 1000V DC
• Megohmmeter with test and lock buttons for simple insulation testing
• Warning alarm and high voltage icon for detection of voltage
• Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

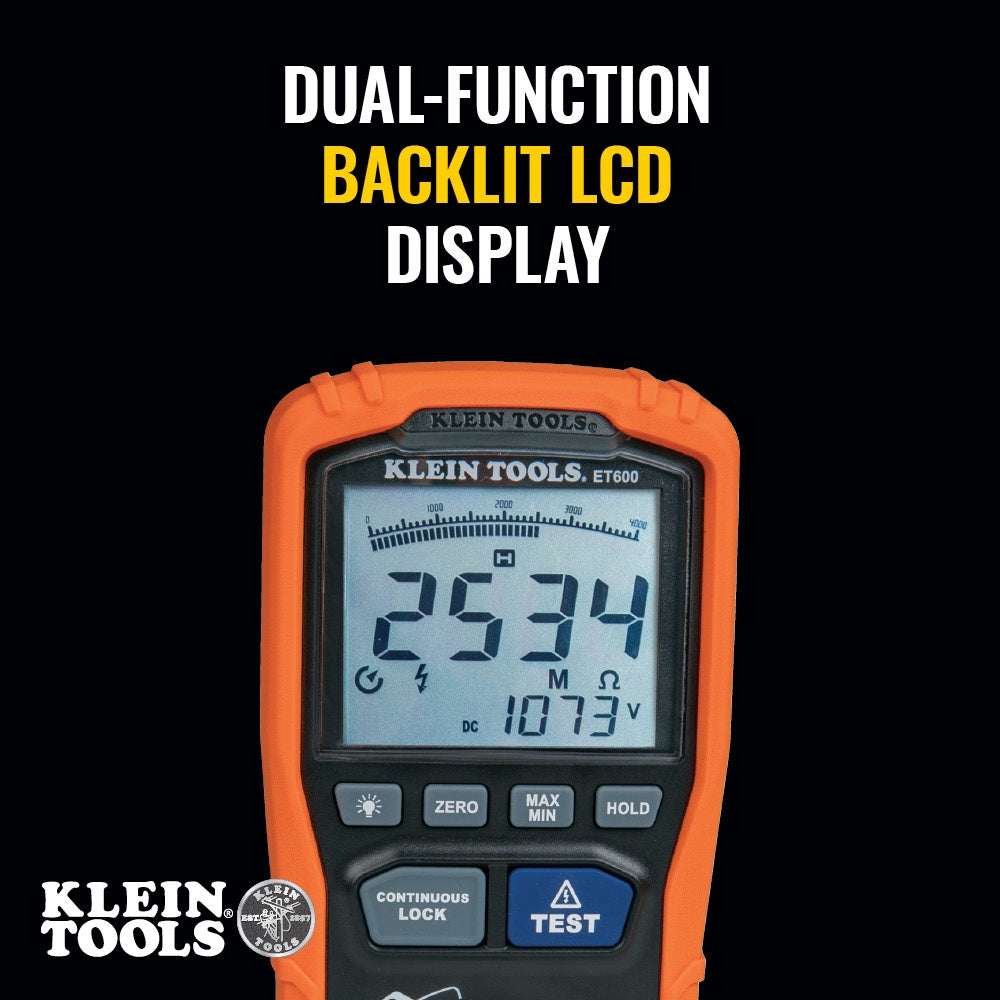

• Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
• Low battery indicator with easily replaceable battery and fuse
• Built-in stand and optional magnetic hanger for hands free operation

DIMENSIONS

LENGTH

7.93 in

WIDTH

3.59 in

WEIGHT

2.34 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

Installation Instructions
User Manual
Safety Data Sheet

PRODUCT OVERVIEW

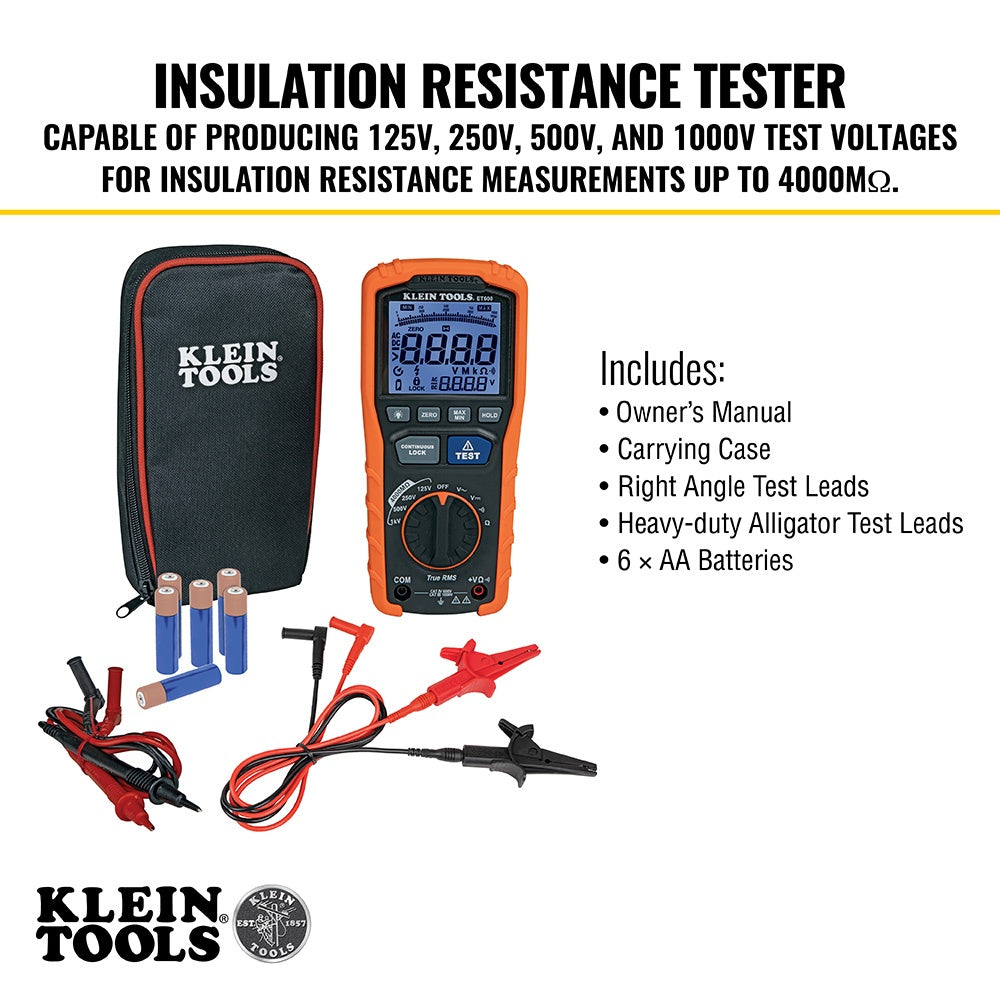

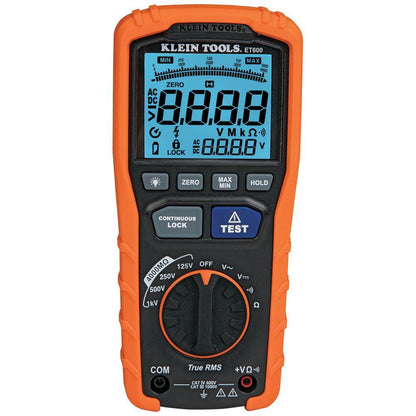

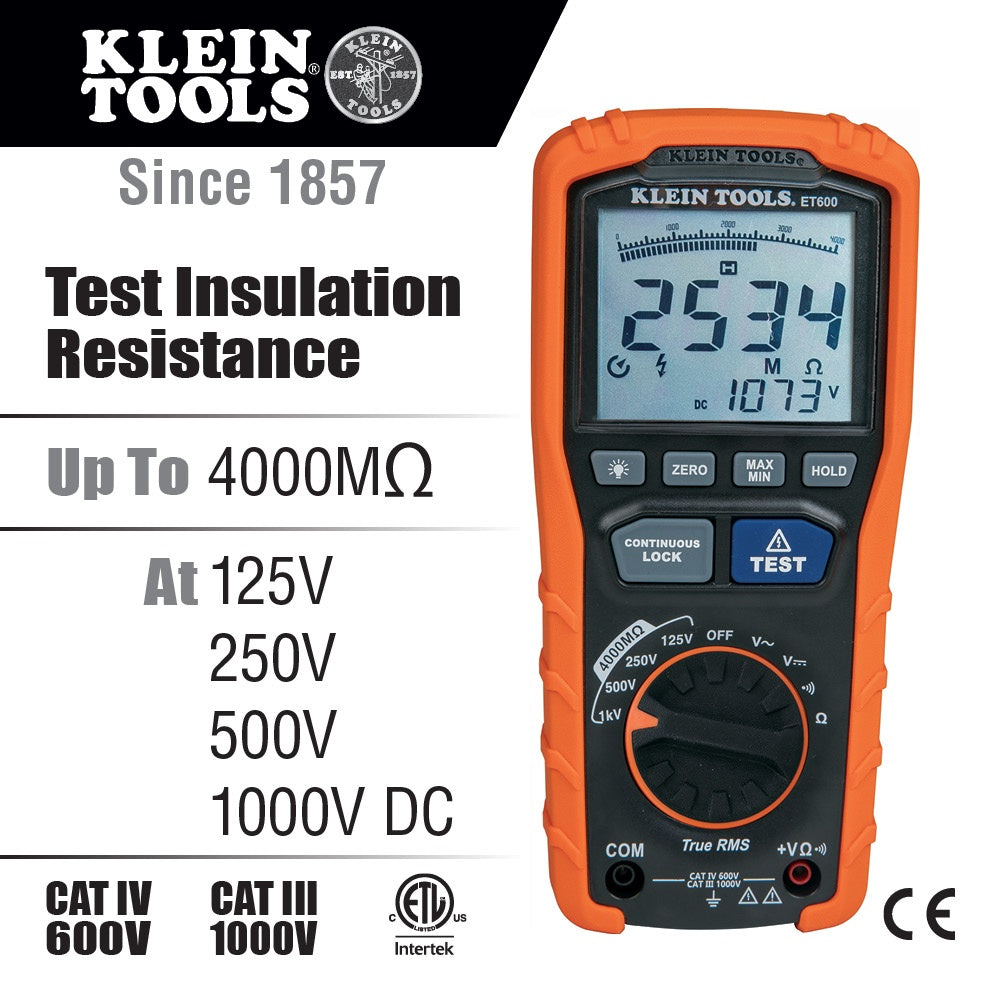

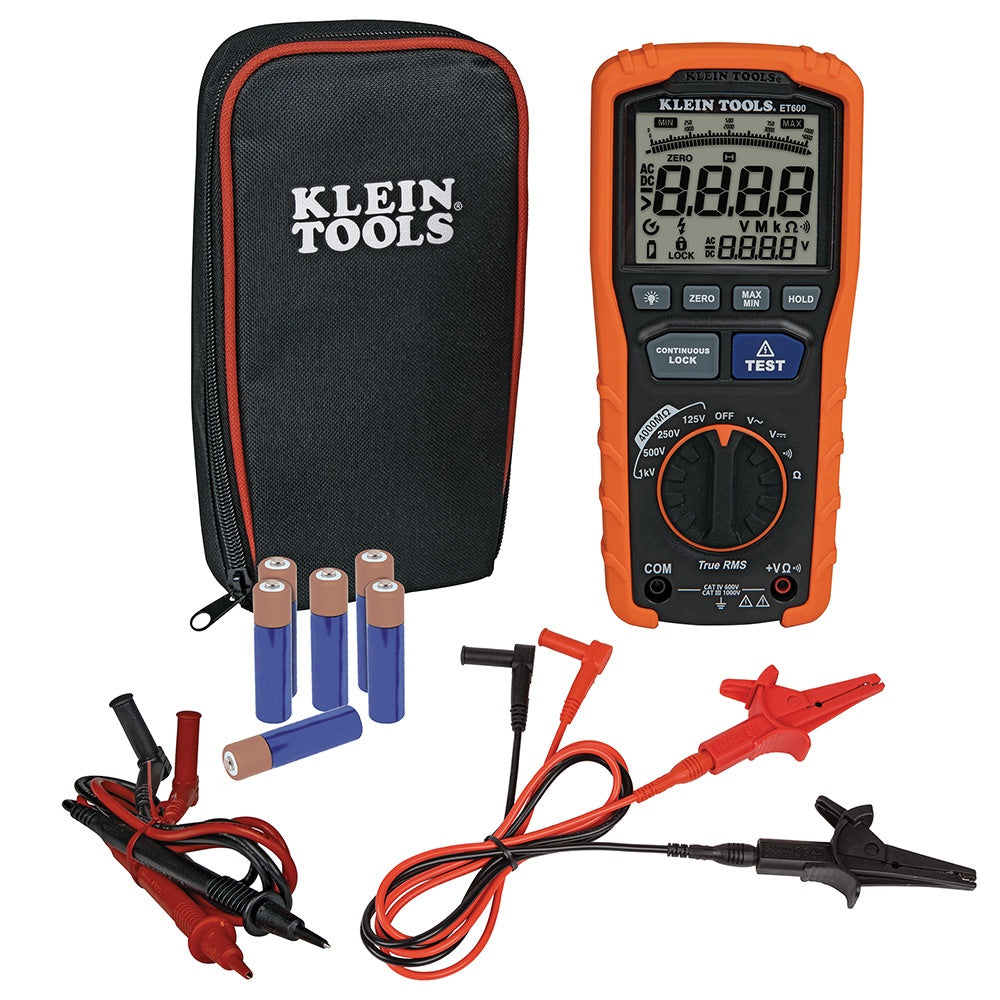

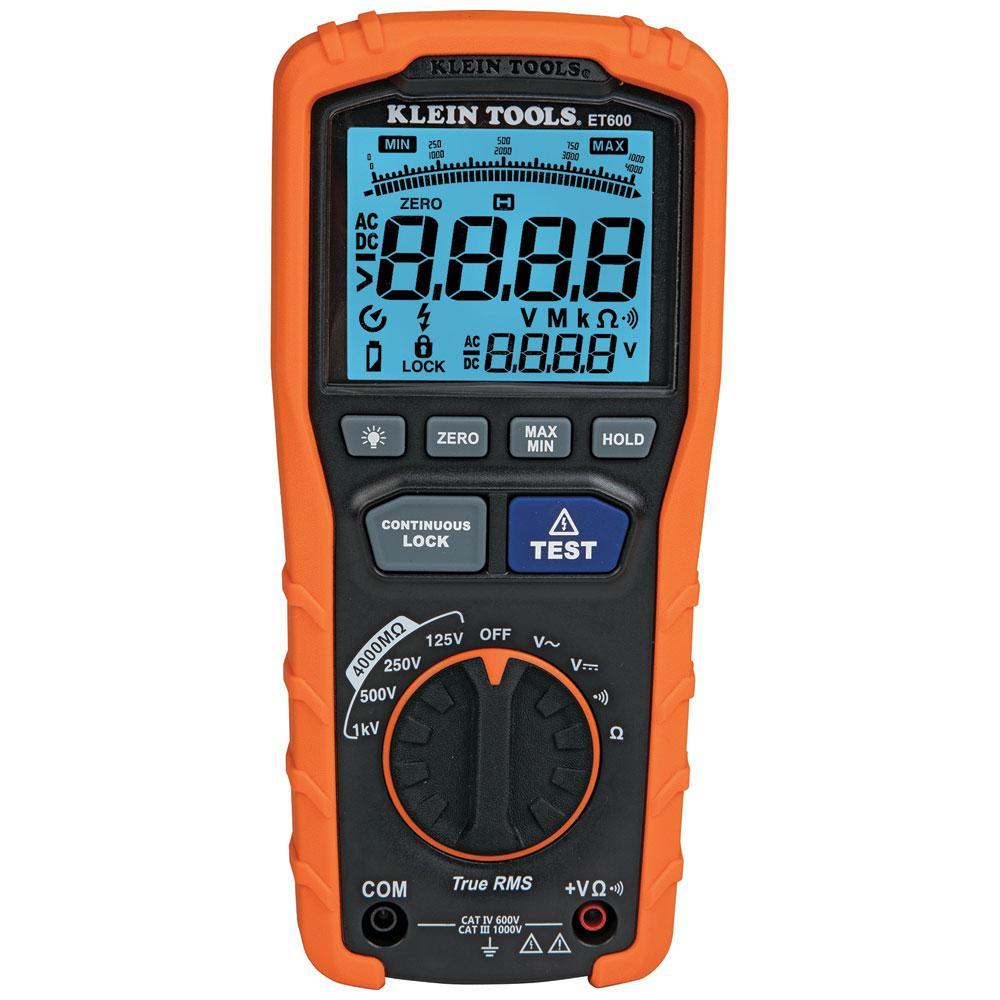

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

SPECIFICATIONS

Amperage Rating

1 mA at 1 MOhm

Auto Power Off

Yes

Auto Ranging

Yes

Dimensions

7.93 in L x 3.59 in W x 2.32 in D

Display Type

4000 Count LCD

Enclosure Type

IP40

Interface

Button/Switch

Power Source

(2) AA Alkaline Batteries

Resistance Range

4000 MOhm at 125/250/500/1000 VDC

Safety Rating

CAT IV 600 V/CAT III 1000 V

Type

Digital

Voltage Rating

1000 V AC/DC
