DEWALT

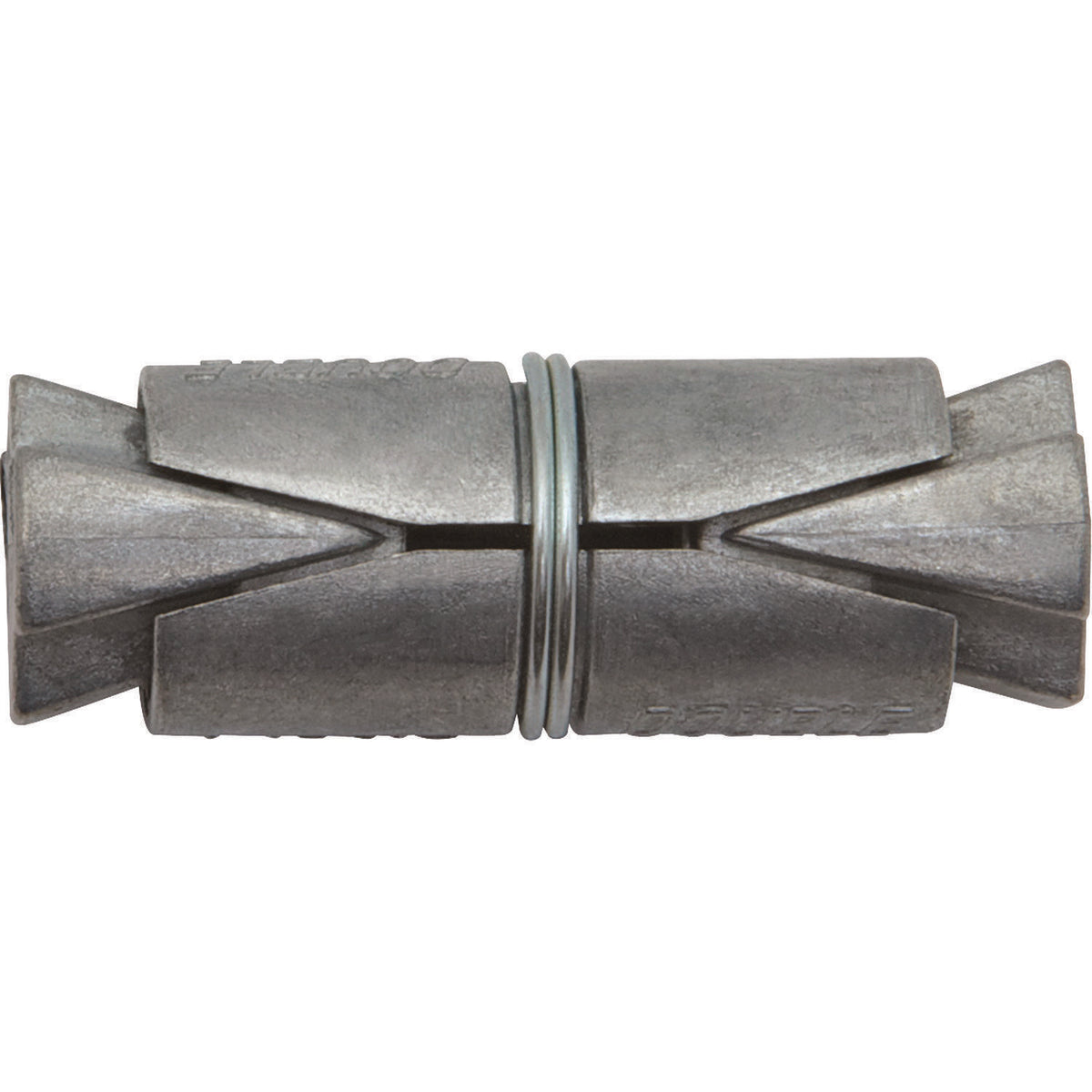

Double Shield Expansion Anchor - 3/8" - Zamac Alloy

Double Shield Expansion Anchor - 3/8" - Zamac Alloy

09520-PWR

$1.64
$1.64 $0.82
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Performs in base material of questionable strength
• Corrosion-resistant body
• Internally threaded anchor for easy bolt removability and service work
• Allowable load capacity - 340 lb tensile strength when embedded in 2000 psi, 500 lb tensile strength when embedded in 4000 and 770 lb tensile strength when embedded in 6000 psi normal weight concrete

DIMENSIONS

LENGTH

2 in

WEIGHT

6.25 lb

DOCUMENTS & RESOURCES

Product Brochure

PRODUCT OVERVIEW

The Double™ is a dual expansion machine bolt Anchor particularly suited for materials of questionable strength or consistence such as stone. It can be used in solid concrete, block, brick and stone. Job site tests are recommended when used in base materials of questionable strength or consistence.

SPECIFICATIONS

Drill Size

3/4 in

Material

Zamac Alloy

Minimum Embedment Depth

1-3/4 in

Overall Length

2 in

Shear Strength

4030 lb

Size

3/8 in

Tensile Strength

3085 lb

Thread Length

5/8 in

Thread Size

3/8-16

Thread Type

UNC

Type

Double
