EATON

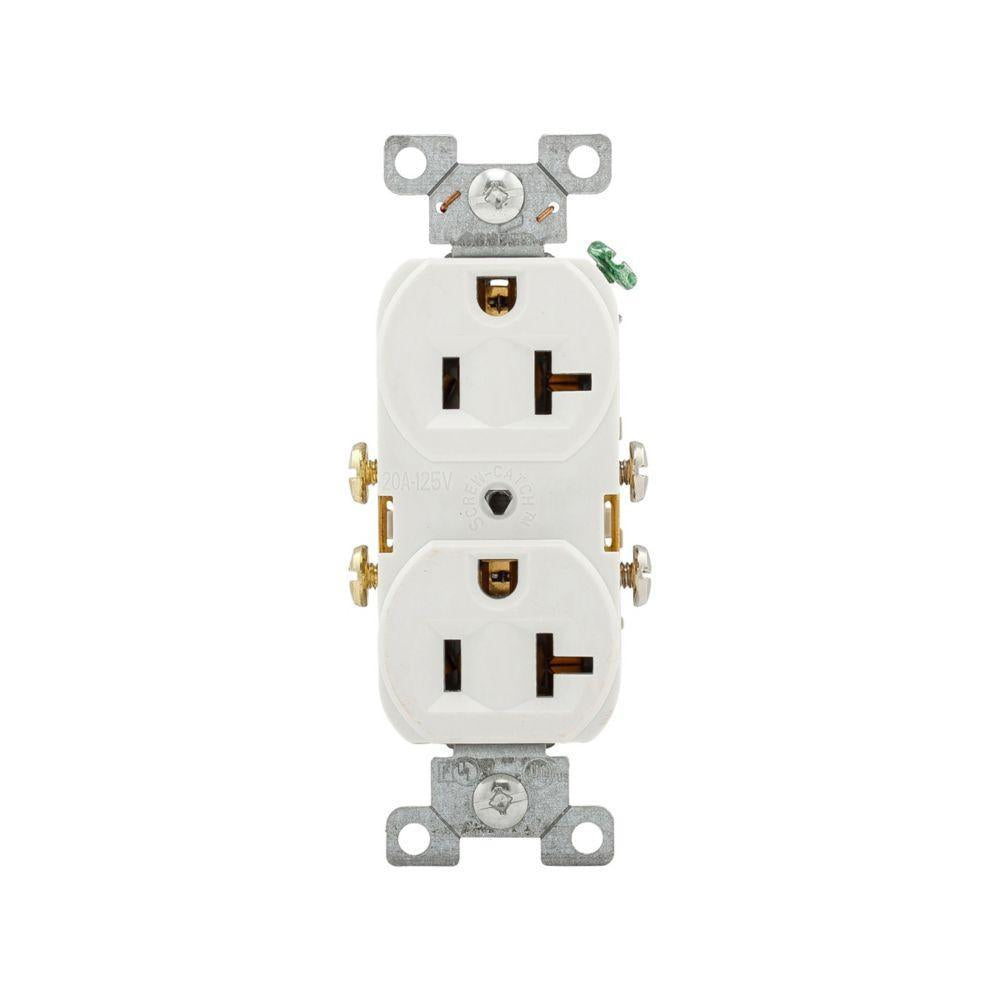

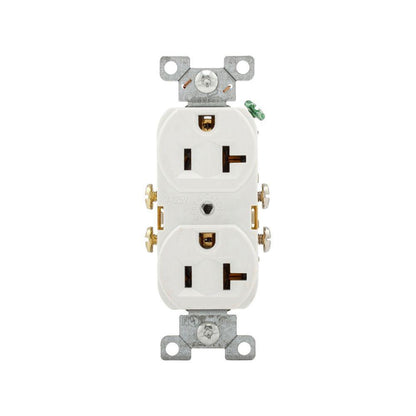

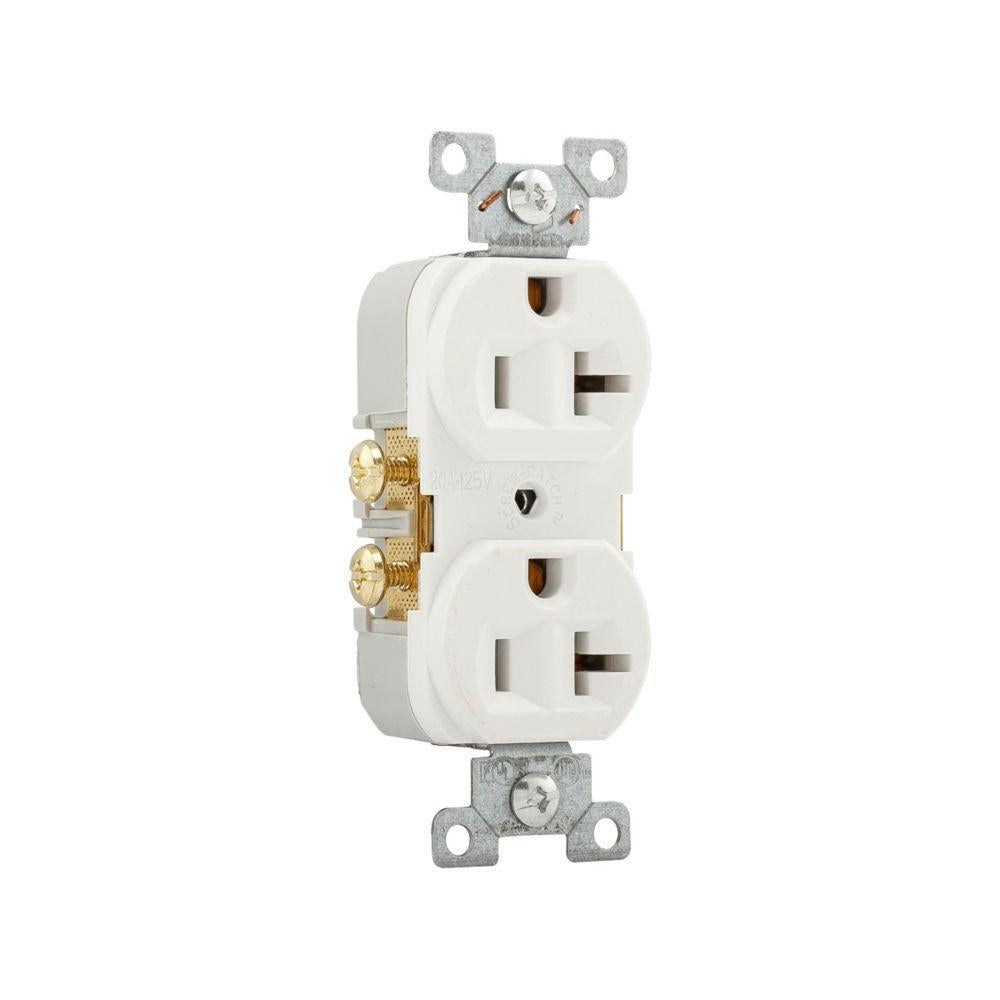

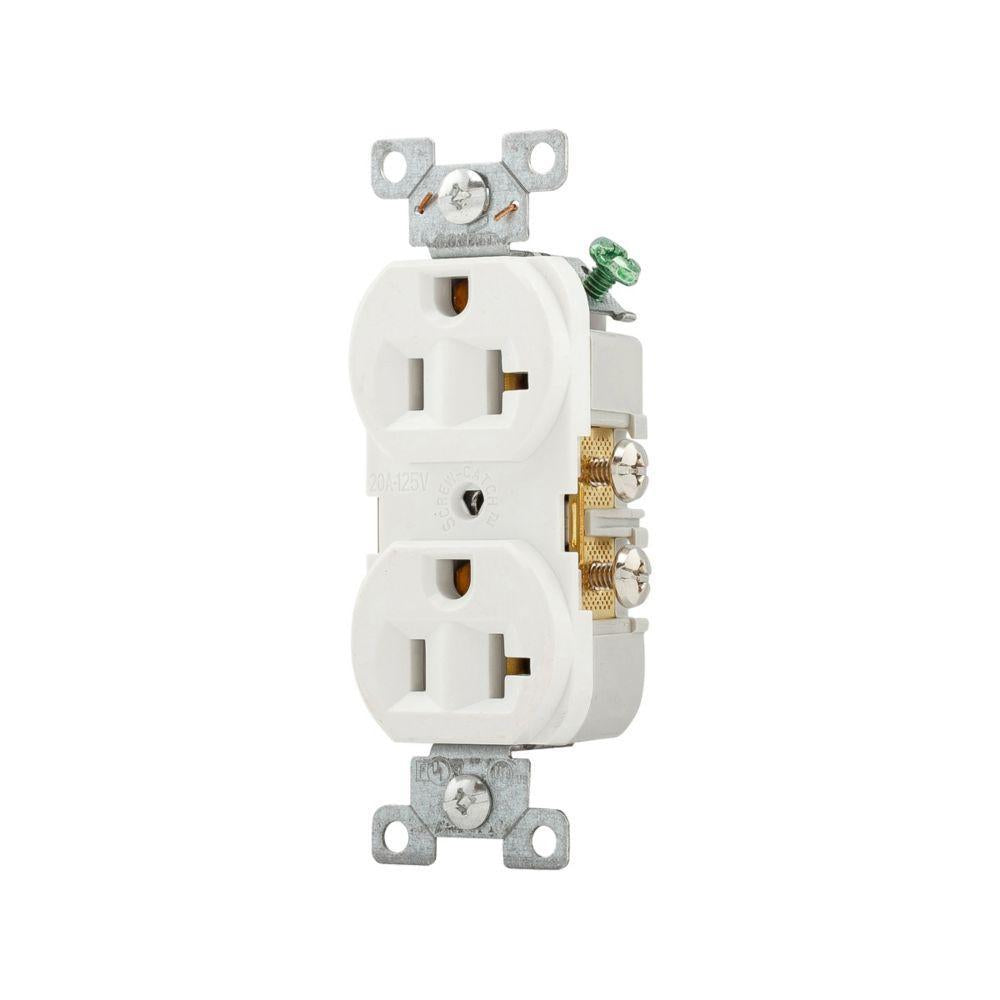

Duplex Straight Blade Receptacle - White - PVC

Duplex Straight Blade Receptacle - White - PVC

CR20W

$2.73
$2.73 $1.91
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Screw catch feature on duplex devices speeds mounting of wallplates

DIMENSIONS

HEIGHT

4.19 in

WEIGHT

0.15 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

SPECIFICATIONS

Amperage Rating

20 A

Dimensions

4.19 in H x 0.82 in D

Grade

Commercial

Material

PVC

NEMA Rating

NEMA 5-20R

Number of Poles

2

Number of Wires

3

Temperature Rating

-20 to 70 deg C

Terminal Type

Side Wire/Screw

Type

Duplex

Voltage Rating

125 V AC
