EATON WIRING DEVICES

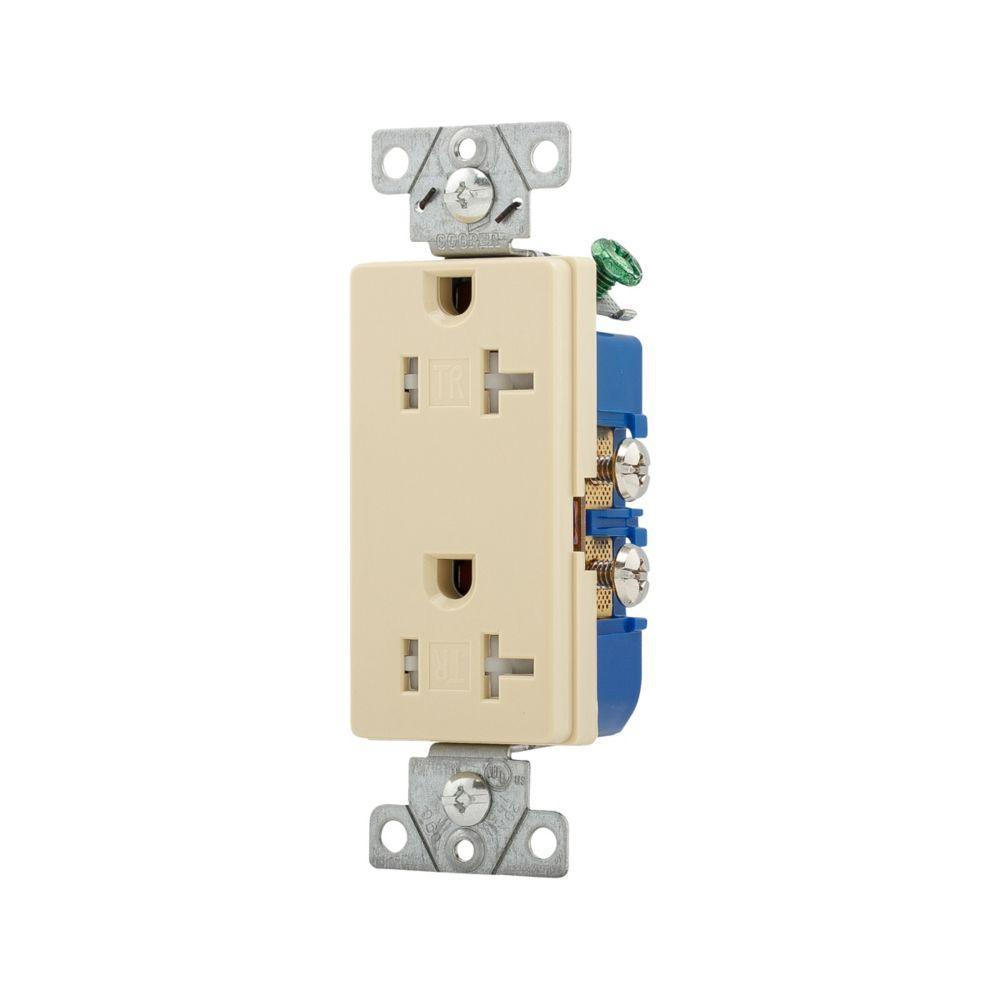

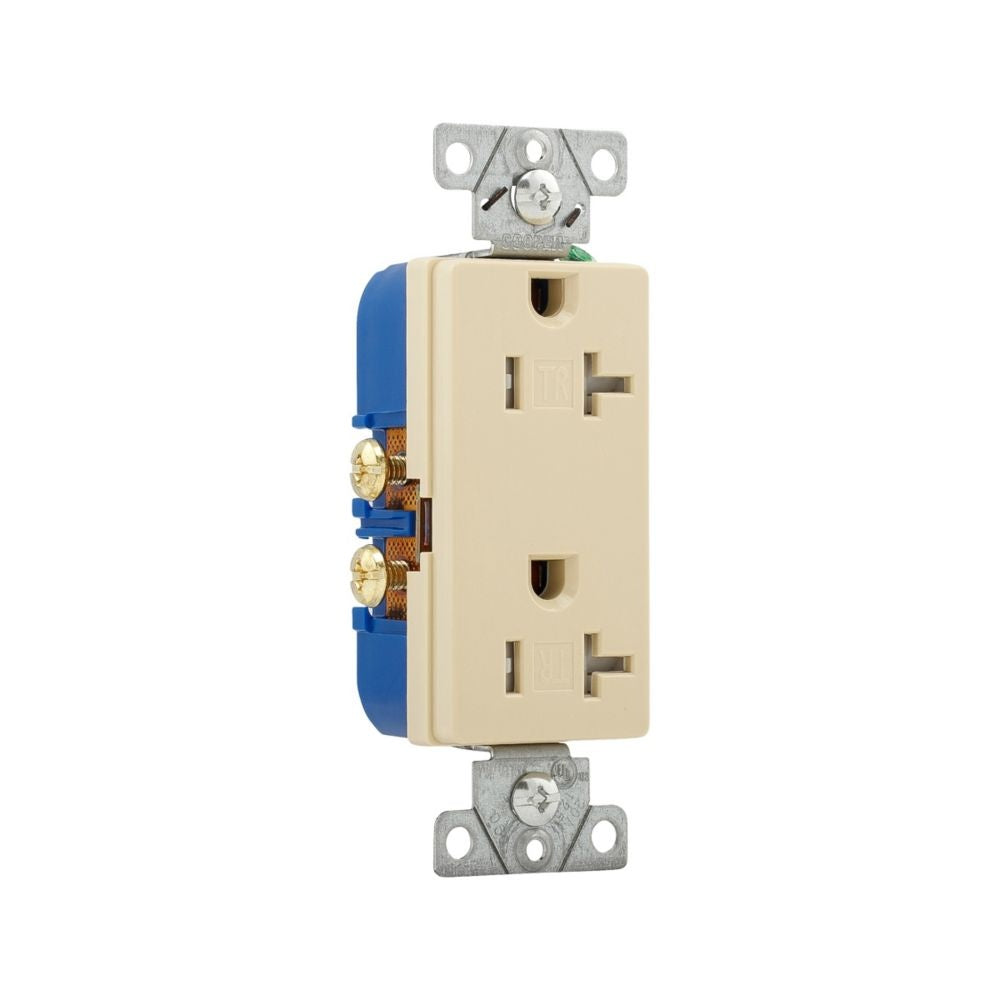

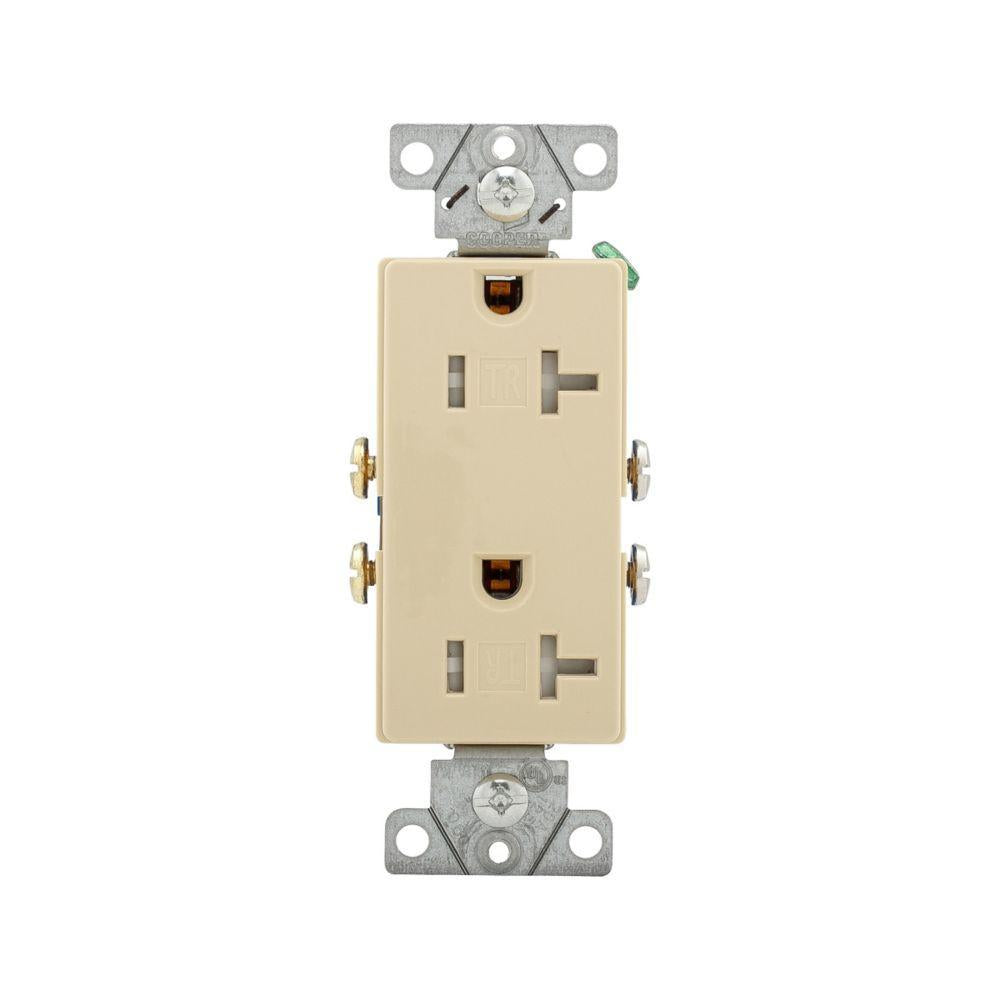

Duplex Tamper Resistant Receptacle - Thermoplastic

Duplex Tamper Resistant Receptacle - Thermoplastic

TR1307V-BOX

$2.46
$2.46 $1.72
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Tamper resistant receptacles provide compliance with 2014 NEC® Article 406.12 which states that all 15A and 20A, 125V/AC receptacles installed in dwelling units must be tamper resistant
• Longer, wider strap provides 40 percent more contact area to wall board, virtually eliminating floating installations
• Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
• Push-in terminals accept NO 14 AWG solid wire for quick installation
• Patented built-in wire looper for pre-looping
• High impact-resistant thermoplastic face and back body eliminates breakage
• Double wipe ground contacts ensure long-term ground retention
• Easy access split circuit break-off tab
• Tri-combo screws accept Slotted, Phillips, and Robertson head tools for installation flexibility
• Terminal screws backed out and ready for wiring

DIMENSIONS

WIDTH

1.3 in

HEIGHT

3.81 in

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

From decorator and standard styles to tamper resistant receptacles, our broad line covers virtually any need throughout a house. All of our receptacles are designed for long-term reliability and ease of installation, while meeting and exceeding the latest industry and UL performance standards.

SPECIFICATIONS

Amperage Rating

20 A

Dimensions

3.81 in H x 1.3 in W x 0.69 in D

Grade

Standard

Material

Thermoplastic

NEMA Rating

NEMA 5-20R

Number of Poles

2

Number of Wires

3

Terminal Type

Side Wire

Type

Duplex

Voltage Rating

125 V AC
