ULTRA-ZONE

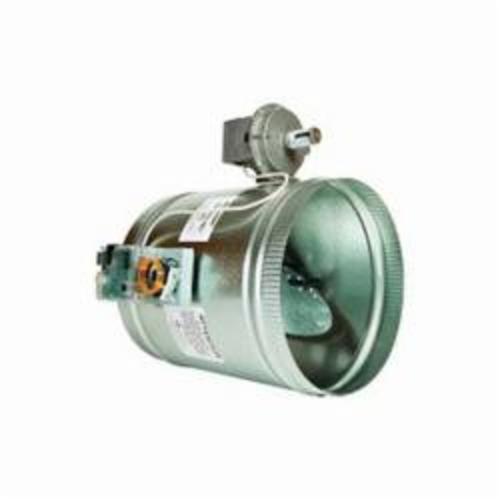

Ebd - Static Pressure Control Electronic By-Pass Damper

Ebd - Static Pressure Control Electronic By-Pass Damper

12 EBD

$537.00
$537.00 $173.60
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Round bypass dampers are fabricated from 24 ga galvanized steel
• The rolled shells are furnished with one straight (female) end and one crimped (male) end with stiffening beads for rigidity
• Round EBD bypass dampers are equipped with low leakage blade seals
• Reevecote diaphragm sensing element
• Pressure switch is factory wired to damper motor
• SPDT HD contacts rated for 10 A at 120 VAC

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

The EBD (electronic bypass) style are self contained units that give you the static control mounted to the damper. It is an "all-in-one" design that makes the installation process much easier than most electronic bypass dampers. The static pressure can be adjusted in the field between 0.5 to 4 in of pressure. This is done by the turn of a set-screw.

SPECIFICATIONS

Connection Type

Terminal Block

Damper Size

12 in

Domestic/Import

Domestic

Frequency Rating

50/60 Hz

Gauge

24 ga

Material

Steel

Mounting Type

Crimped Edge

Series

EBD

Shape

Round

Type

Static Pressure Control

Voltage Rating

24 V AC
