ZOELLER

Effluent Pump - Cast Iron - Non-Automatic

Effluent Pump - Cast Iron - Non-Automatic

151-0002

$358.42
$358.42 $461.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Oil filled for optimal heat dissipation - This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications

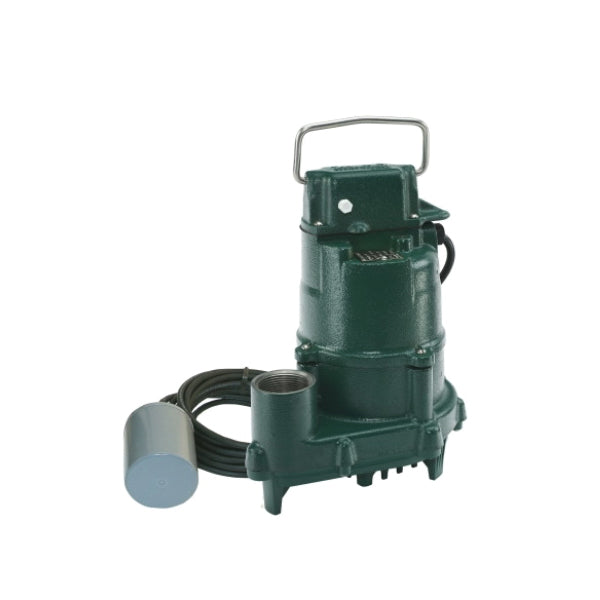

• Nonautomatic pump that will require a piggyback float switch or control panel to control the pump's on/off level
• The vortex impeller allows free passage of solids to prevent clogging
• For strength and durability, this pump includes a corrosion-resistant, powder-coated epoxy finish, cast iron construction, and stainless steel lifting handle and bolts

DIMENSIONS

HEIGHT

11.69 in

WEIGHT

32 lb

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
Drawings
Product Brochure

PRODUCT OVERVIEW

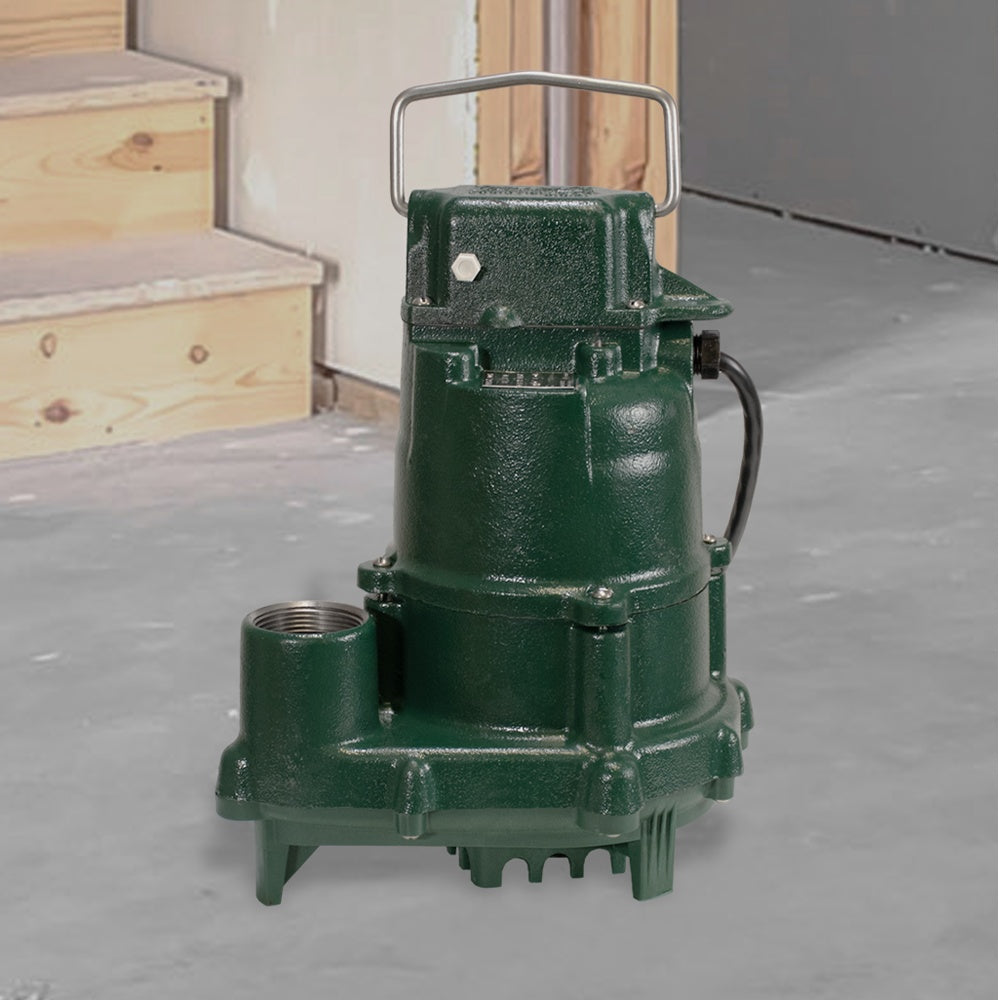

The 1/3 HP Model N151 nonautomatic Effluent Pump is designed to pump sewage effluent in septic system applications. It is an ideal choice in high pressure or high flow applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

SPECIFICATIONS

Amperage Rating

3.2 to 10.5 A

Automatic/Non Automatic

Non-Automatic

Bearing Type

Upper Sleeve/Lower Ball

Dimensions

11-11/16 in H

Domestic/Import

Domestic

Frequency Rating

60 Hz

Horsepower

1/3 hp

Impeller Type

Non-Clogging Vortex

Material

Cast Iron

Maximum Flow Rate

77 gpm

Maximum Head

44 ft

Motor Speed

3450 rpm

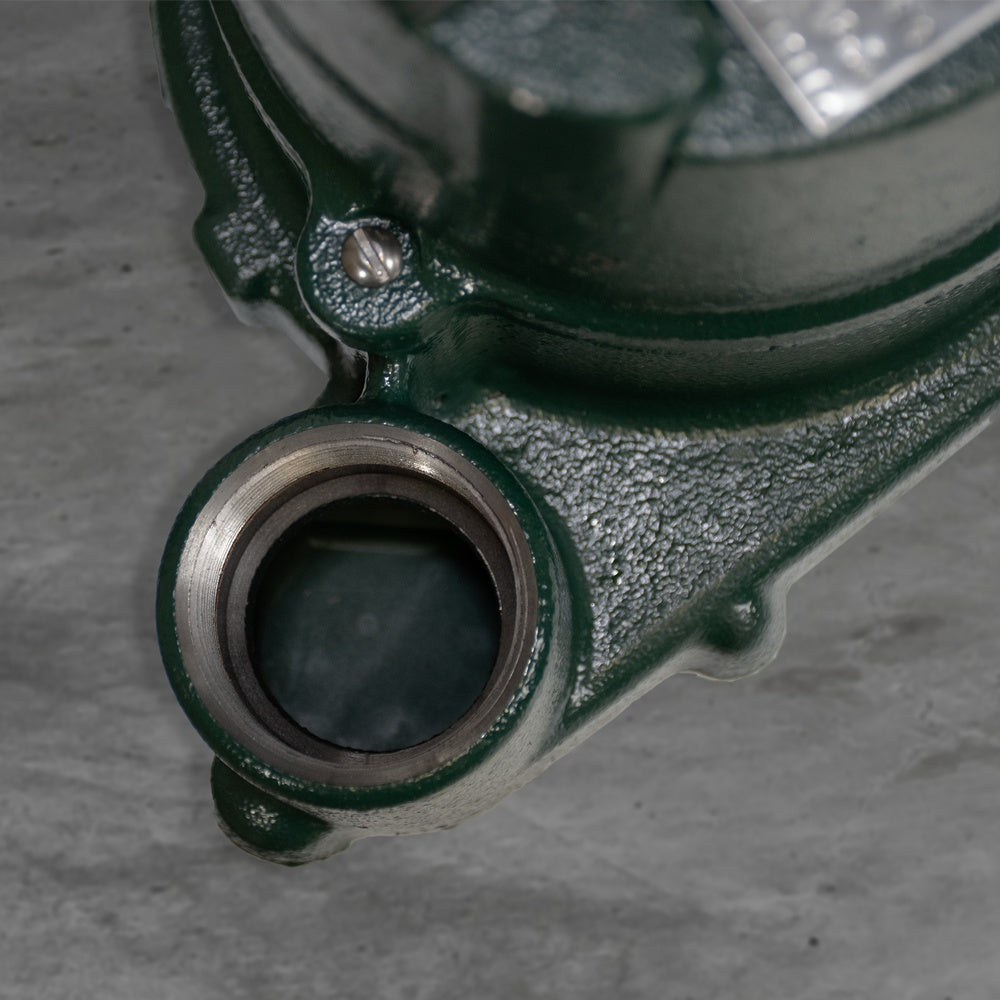

Outlet Size

1/2 in NPT

Phase

1

Series

150
