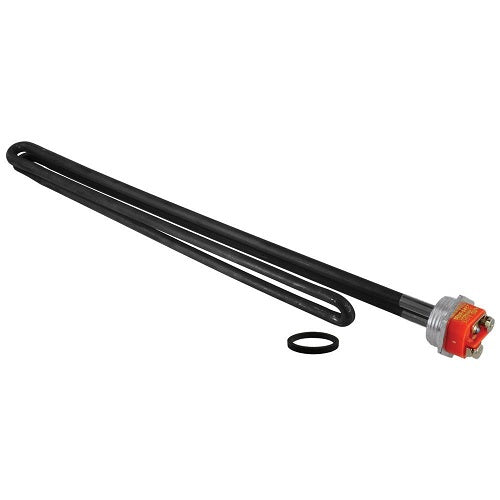

ELMT 240V/4500W SS RES LWD -

The Rheem SP10869ML is an element - 240V/4500W stainless steel resistored LWD - 1-inch screw-in. Watt Density Classification: LWD. Input Voltage (V): 208. Input Voltage (V): 240. Wattage at 208V (W): 3380. Watt Density at 208V (W/sq. in.): 60. Wattage at 240V (W): 4500. Watt Density at 240V (W/sq. in. ): 80. Cold Resistance (ohms): 12.80. Outer Sheath Material: Stainless Steel (Incoloy). Resistored: Yes. Configuration: Foldback. Element Diameter (in.): .316. Element Length - Flange to Tip (in.): 15.56. Mounting Type: Threaded. Actual Thread Size - Outside Diameter (in.): 1-9/32. Nominal Thread Size - (in.): 1. Threads per Inch: 11-1/2. Thread Type Series Designation: NPSM. Hex Head Size - Across Flats (in.): 1-1/2.
