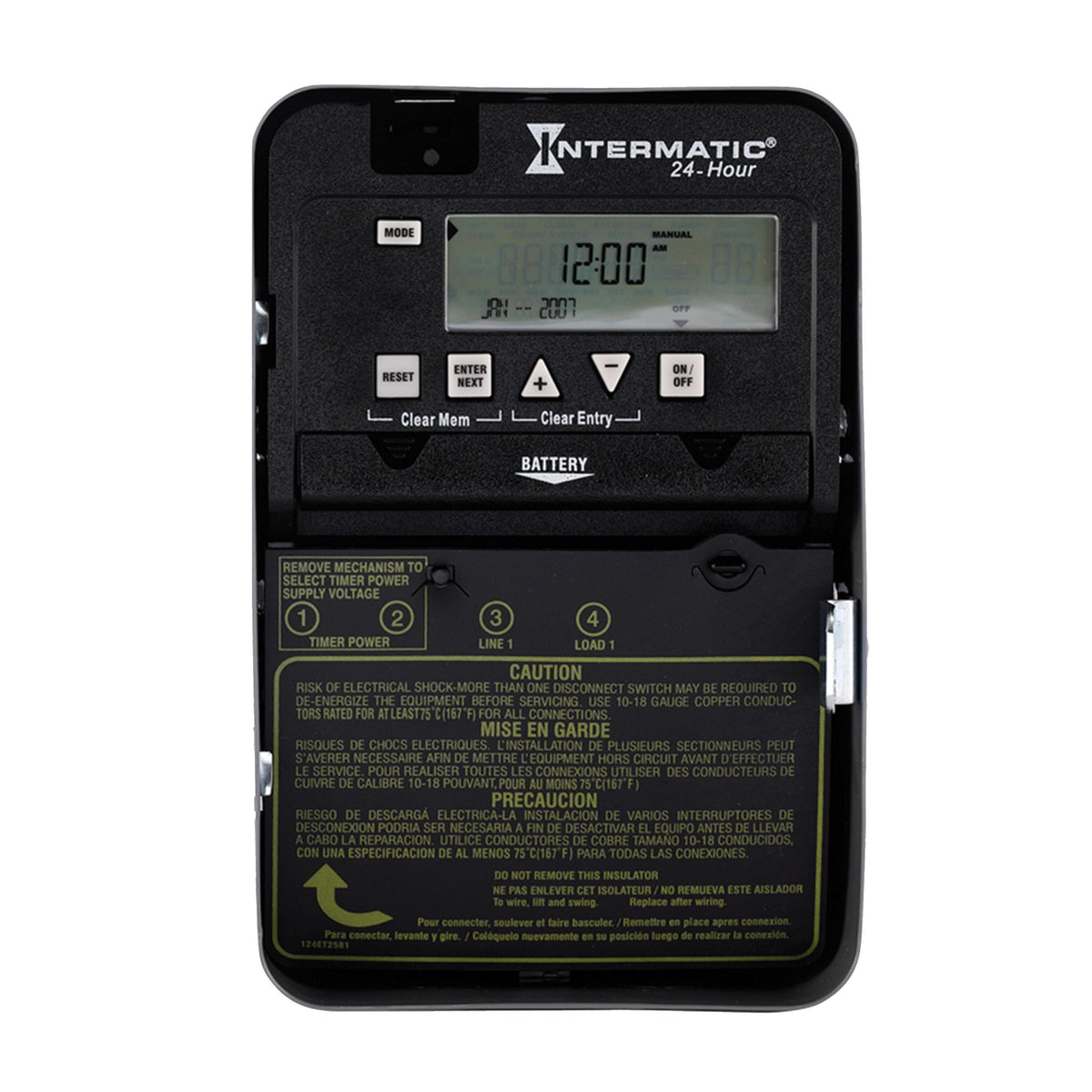

ET1100 - Electronic Timer Switch - Wall Mount - 120/277 V AC

Name: ET1100 - Electronic Timer Switch - Wall Mount - 120/277 V AC
Brand: INTERMATIC
SKU: ET1105C
Price: 381.6 USD
Availability: InStock

ET1105C

$381.60

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Selector switch to determine input voltage between 120-277 VAC
• To-the-minute accuracy
• Temporary override or permanent manual override
• Automatic Daylight Saving Time adjustment
• Astronomic models enable dusk-to-dawn scheduling

DIMENSIONS

WIDTH	130.2 mm
HEIGHT	200 mm
WEIGHT	2.92 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. These are 24-hour timers.

SPECIFICATIONS

Amperage Rating	30 A
Battery Type	AAA Alkaline
Contact Form	1NO 1 Form A SPST
Dimensions	200 mm H x 130.2 mm W x 87.3 mm D
Electrical Connections	Teeter/Wire Lead
Enclosure Type	NEMA 1
Horsepower	1, 2 hp
Mounting Type	Wall
Number of Poles	1
Operation Mode	24 hr
Series	ET1100
Temperature Rating	-40 to 155 deg F
Time Setting	1 min to 23 hr 59 min
Voltage Rating	120/277 V AC
