LEVITON

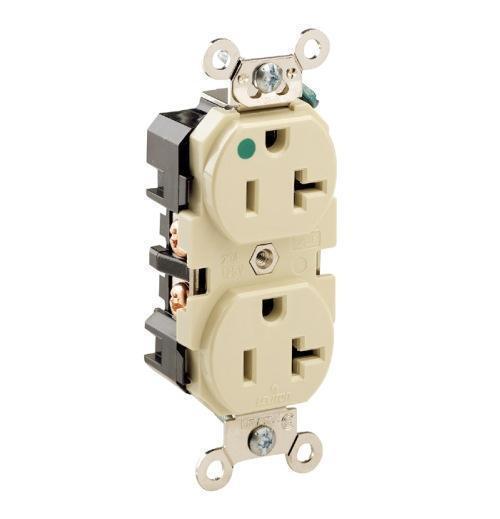

Extra Heavy Duty Straight Blade Receptacle - Ivory

Extra Heavy Duty Straight Blade Receptacle - Ivory

8300-I

$10.57
$10.57 $7.40
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Impact resistant thermoplastic nylon cover and body
• Four corner latches securely fasten face
• Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
• High performance brass #10-32 terminal screws to reduce conductor oxidation
• Back and side wire ground termination brass strap version
• Back and side wiring options
• Break-OFF tabs allow easy 2-circuit conversion
• Apron barrier to prevent accidental contact between terminal screw heads and metal box
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
• Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator

DIMENSIONS

WIDTH

1.53 in

HEIGHT

46 in

WEIGHT

0.24 lb

WARRANTY

10 years Limited

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

SPECIFICATIONS

Amperage Rating

20 A

Dimensions

46 in H x 1.53 in W x 1.11 in D

Enclosure

NEMA WD-1/WD-6

Grade

Commercial

Horsepower

1 hp

Material

Thermoplastic

NEMA Rating

NEMA 5-20R

Number of Poles

2

Number of Wires

3

Temperature Rating

-40 to 60 deg C

Terminal Type

Back/Side Wire

Type

1-Phase Duplex Extra Heavy Duty

Voltage Rating

125 V AC
