LEVITON

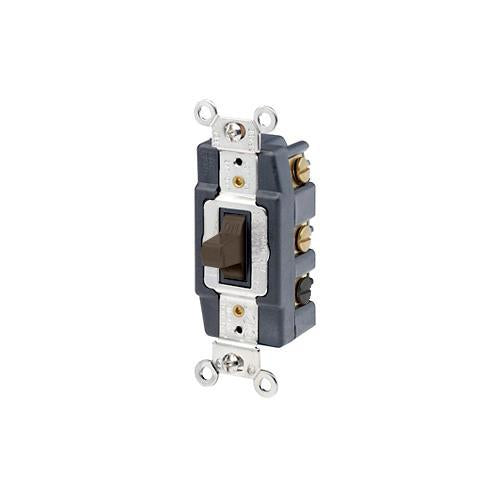

Extra Heavy Duty Toggle Switch - 120/277 V AC - 20 A

Extra Heavy Duty Toggle Switch - 120/277 V AC - 20 A

1286

$85.34
$85.34 $5,974.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Positive switching action with center OFF position
• Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
• Clamp type terminals accept up to 10 AWG copper wire
• Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
• 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating

DIMENSIONS

WIDTH

1.37 in

HEIGHT

46 in

WEIGHT

0.3 lb

WARRANTY

10 years Limited

DOCUMENTS & RESOURCES

Installation Instructions
User Manual

PRODUCT OVERVIEW

Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

SPECIFICATIONS

Actuator

Toggle

Amperage Rating

20 A

Contact Configuration

SPDT

Contact Rating

1 hp at 120 V AC, 2 hp at 240 V AC

Dimensions

46 in H x 1.37 in W x 2.29 in D

Enclosure

NEMA WD-1/WD-6

Environmental Conditions

-40 to 65 deg C Operating Temperature

Material

Thermoplastic

Mounting

Surface

Number of Poles

2

Operating Cycles

50000 Cycles

Power Rating

800 W, 1000 VA

Terminal Type

Back/Side Wire

Type

Extra Heavy Duty
