INTERMATIC

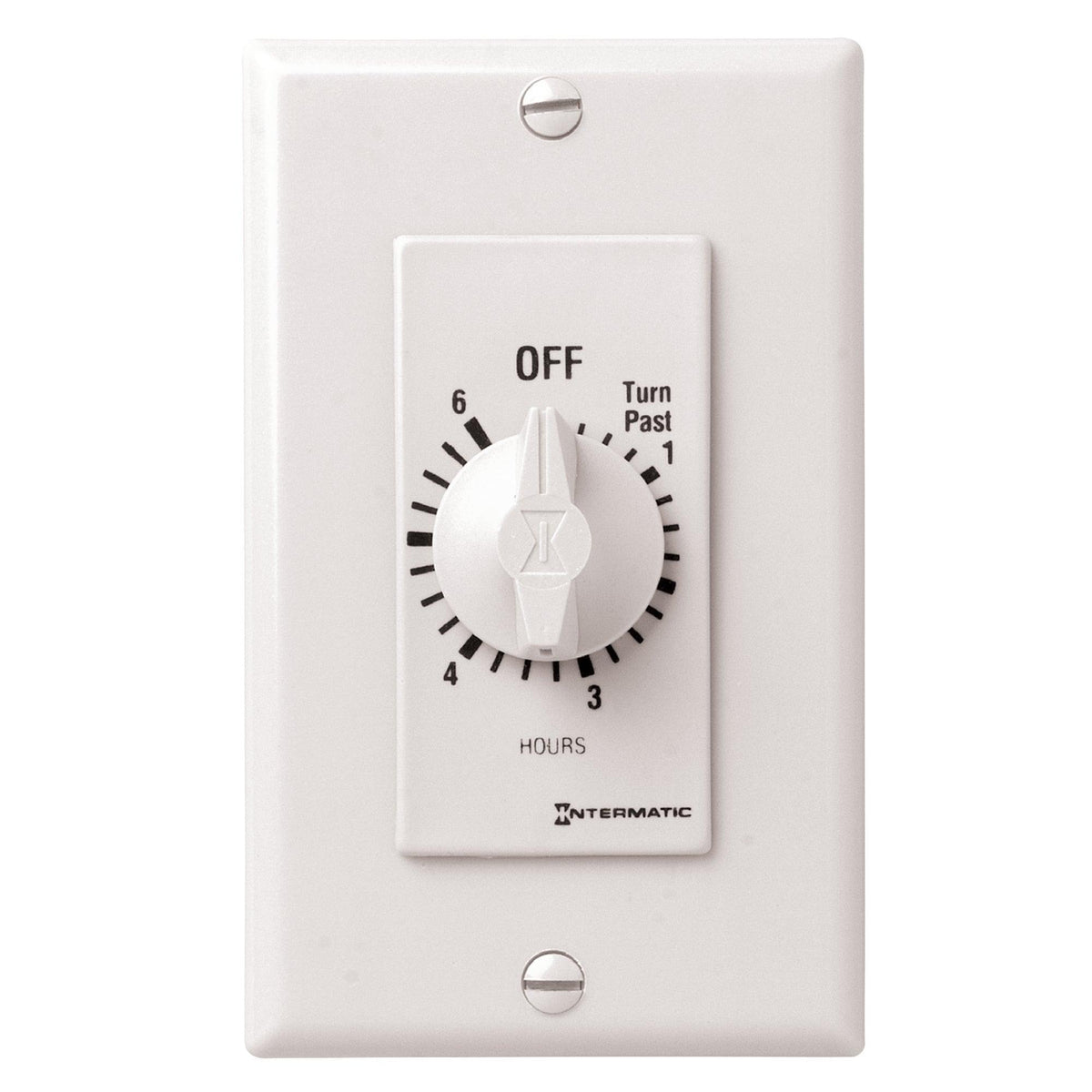

Fd Series - Off Decorator Mechanical Spring Wound Timer

Fd Series - Off Decorator Mechanical Spring Wound Timer

FD6HW



Regular price $68.08
Sale price $68.08 Regular price $37.43
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• SPST (Single-Pole Single-Throw)
• Breaks circuit at end of timing cycle
• No electricity required to operate
• Replaces any standard or decorator single- or multi-gang wall switch
• Automatically limits ON time for energy consuming loads

DIMENSIONS

WIDTH

1.6 in

HEIGHT

2.79 in

WEIGHT

0.36 lb

WARRANTY

1 Year

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly. Wall plate not included.


SPECIFICATIONS

Amperage Rating

15 A

Contact Form

1NO 1 Form A SPST

Dimensions

2.79 in H x 1.6 in W x 1.19 in D

Electrical Connections

Teeter

Horsepower

1 hp, 2 hp hp

Mounting Type

Wall

Number of Poles

1

Series

FD Series

Temperature Rating

-40 to 104 deg F

Time Setting

6 hr

Type

Auto Off Decorator Mechanical

Voltage Rating

125/257 V AC
