IDEAL

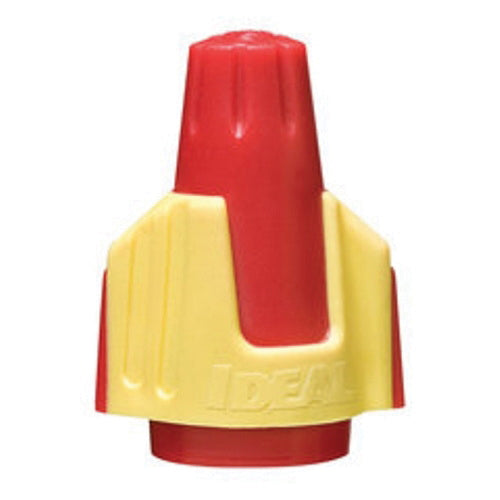

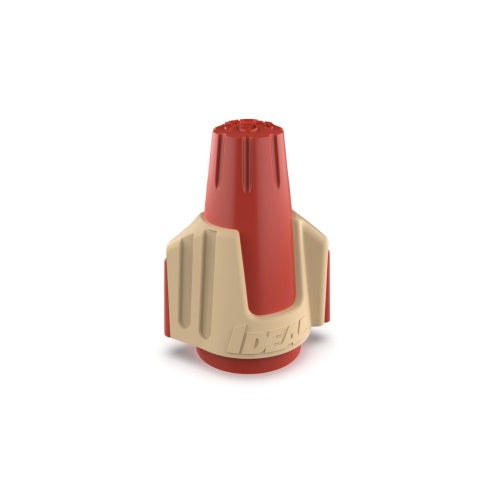

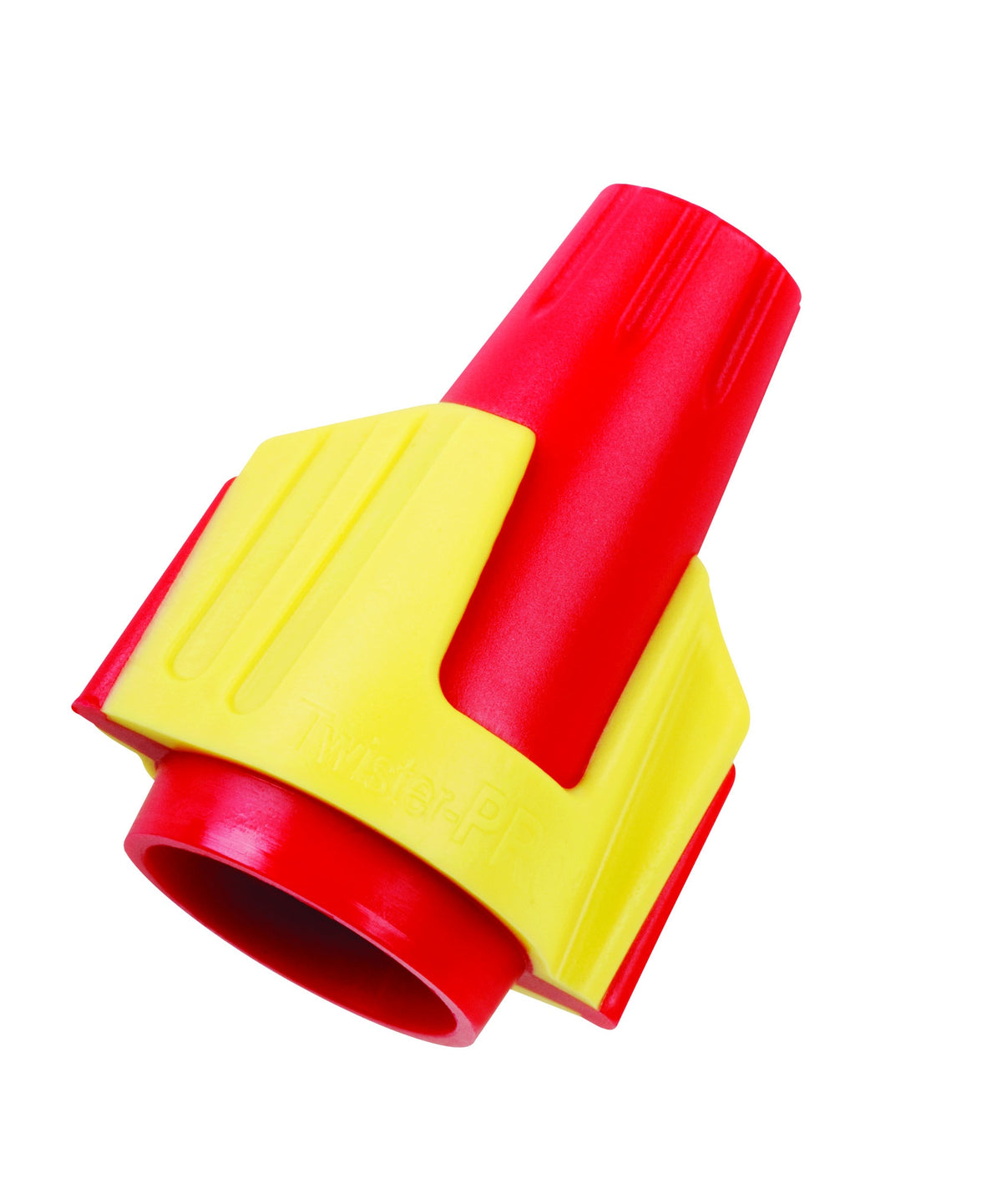

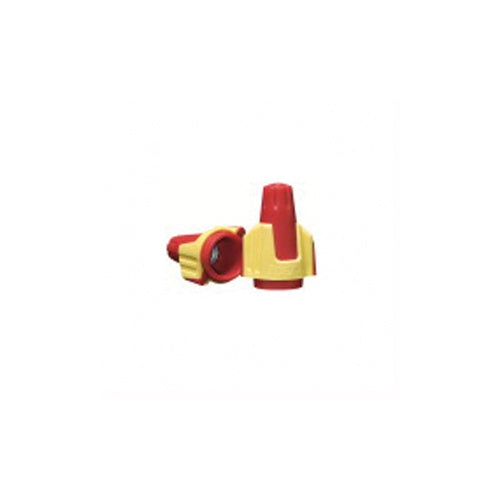

Fire-Retardant Wire Connector - Winged Shell

Fire-Retardant Wire Connector - Winged Shell

30-244J



Regular price $34.40
Sale price $34.40 Regular price $0.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available
• These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians
• With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded
• The copolymer shell expands for smooth, progressive tightening ensuring dependable connections
• The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation
• The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength

DIMENSIONS

WEIGHT

2.13 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available. These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians. With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections.


SPECIFICATIONS

Material

Polypropylene

Series

344®

Shell Style

Winged

Specifications

2 to 4 Conductors, 18 to 2 AWG Minimum, 10 to 4 AWG Maximum Conductor Combination Size

Spring Type

Square Wire

Temperature Rating

221 deg F

Type

Fire-Retardant

Voltage Rating

600 V AC

Wire Size

22 to 8 AWG

Wire Type

Solid/Stranded Copper
