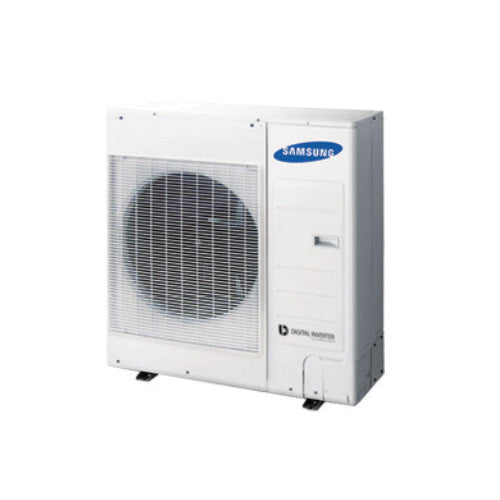

Fjm - Air Conditioner - 3 Ton Cooling
Fjm - Air Conditioner - 3 Ton Cooling
AJ036JCJ5CH/AA
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
37 in |
|---|---|
|
HEIGHT |
39.28 in |
|
WEIGHT |
166 lb |
WARRANTY
WARRANTY
10 Years Compressor, 10 Years Parts, 1 Year Limited Labor
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Samsung HVAC continues to deliver on Samsung's legacy of product innovation and engineering excellence to provide the finest variable refrigerant flow (VRF) systems on the market today. From the award winning, revolutionary triangular design of the Pearl wall-mounted indoor unit to the industry leading* efficiency and capacity range of the DVM S system air conditioner, Samsung offers a complete range of single-zone and multi-zone VRF systems to satisfy modern day design and construction challenges while still providing the homeowners and building occupants the highest level of personalized control and comfort.
SPECIFICATIONS
|
Control Type |
Electronic Expansion Valve |
|---|---|
|
Dimensions |
37 in W x 13 in D x 39-9/32 in H |
|
Discharge Line Size |
3/8 in |
|
EER Rating |
10.4 Non-Ducted/9.8 Ducted |
|
Fuse Size |
30 A |
|
Heating Capacity |
44000 Btu/hr |
|
HSPF Rating |
9.5 Non-Ducted/9 Ducted |
|
Maximum Piping Length |
262 ft |
|
Nominal Capacity |
3 ton |
|
Power Source |
208/230 V AC, 1 ph, 60 Hz |
|
Refrigerant Type |
R-410A |
|
SEER Rating |
18.5/16.5 |
|
Series |
FJM |
|
Sound Level |
54 dB |
|
Suction Line Size |
1/4 in |
