IDEAL

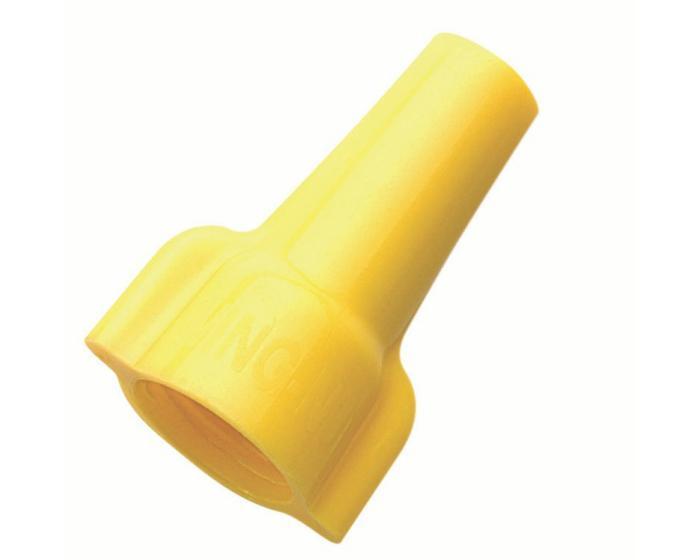

Flame-Retardant Wire Connector - Winged Shell

Flame-Retardant Wire Connector - Winged Shell

30-651



Regular price $63.17
Sale price $63.17 Regular price $45.65
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• High-leverage, contoured wing provides superior torque on every twist
• Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
• Copolymer shell expands for smooth, progressive tightening providing dependable connections
• Removable for repeat usage on same size or larger combinations

DIMENSIONS

WIDTH

1.02 in

HEIGHT

0.69 in

WEIGHT

2 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


Largest range in the Industry - from 2 #18 to up 4 #10High-leverage, contoured wing provides superior torque on every twistWide range, live-action spring handles small combinations and expands to accommodate large combinations as you need itCopolymer shell expands for smooth, progressive tightening providing dependable connectionsRemovable for repeat usage on same size or larger combinationsMore power with every twist.The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.


SPECIFICATIONS

Dimensions

0.48 in Dia x 1.015625 in W x 0.6875 in H

Material

Polypropylene

Series

451®

Shell Style

Contoured Winged/Twist On

Specifications

3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size

Spring Type

Live Action/Square Wire

Temperature Rating

221 deg F

Type

Flame-Retardant

Voltage Rating

600 V AC

Wire Size

18 to 10 AWG

Wire Type

Solid/Stranded
