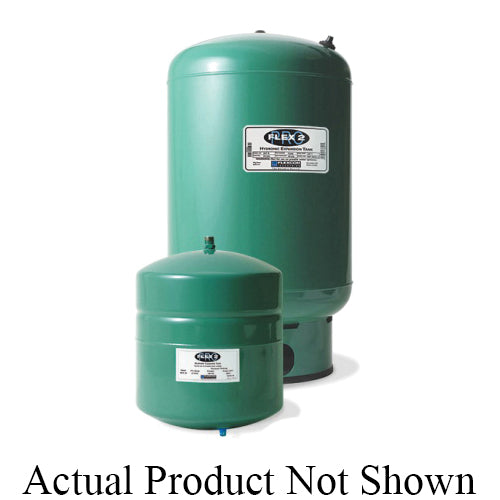

FLEX2PRO Htx - Hydronic Expansion Tank - 15 gal Capacity

FLEX2PRO Htx - Hydronic Expansion Tank - 15 gal Capacity

HTX 90



Regular price $218.81
Sale price $218.81 Regular price $523.67
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 16 ga cold rolled steel tank
• Appliance-quality paint for corrosion resistance
• 100% butyl rubber diaphragm
• 3/4 in MNPT welded steel connection
• High pressure, seam weld, helium, final precharge check
• Brass air valve with O-ring seal
• For use with hydronic heating system

DIMENSIONS

HEIGHT

20.8 in

WEIGHT

28 lb

WARRANTY

5 Years

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


Constructed of the highest quality steel, the HTX and SXHT are true work horses. HTX comes standard with a 100% butyl diaphragm. SXHT goes even one step further with our patented CAD2 diaphragm, offering even lower permeability rates at higher temperatures. Additionally, both tank lines' diaphragms are oversized, which maximizes drawdown and minimizes wear. This design feature virtually eliminates diaphragm stretch, further promoting longevity.


SPECIFICATIONS

Acceptance Capacity

6 gal

Capacity

15 gal

Diameter

16 in

Diaphragm Type

Butyl Rubber

Material

Cold Rolled Steel

Pressure Rating

100 psi

Series

Flex2Pro HTX

Temperature Rating

240 deg F
