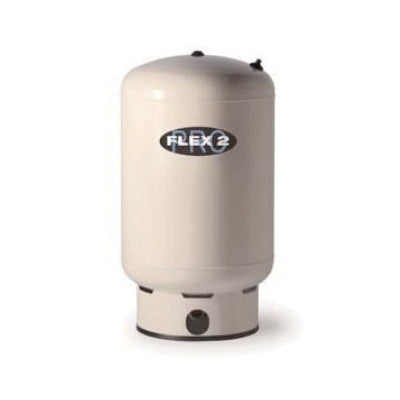

FLEX2PRO Whv - Thermal Expansion Tank - 32 gal Tank
FLEX2PRO Whv - Thermal Expansion Tank - 32 gal Tank
WHV 120
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Appliance-quality paint for indoor or outdoor installation
• Top water chamber is 100% butyl rubber, lower water chamber is copolymer polypropylene
• High pressure, seam weld, helium, final pre-charge check
• Brass air valve with O-ring seal
DIMENSIONS
DIMENSIONS
|
HEIGHT |
27.8 in |
|---|---|
|
WEIGHT |
60 lb |
WARRANTY
WARRANTY
5 Year Limited
PRODUCT OVERVIEW
These potable water expansion tanks feature a 100% butyl diaphragm combined with a copolymer lower water chamber for maximum water and air separation. There is no better way to separate the system water from the tank's air precharge. The system connection has a stainless steel elbow to prevent corrosion, and the tanks are finished with appliance-quality paint to help prevent external corrosion. Not to mention, every WHV tank is comprehensively tested and backed by Flexcon's five-year limited warranty.
SPECIFICATIONS
|
Acceptance Volume |
14.4 gal |
|---|---|
|
ASME Yes/No |
No |
|
Connection Size |
1 in |
|
Connection Type |
FNPT |
|
Diameter |
21 in |
|
Material |
Drawn Steel |
|
Maximum Temperature |
200 deg F |
|
Pre-Pressure Rating |
40 psi |
|
Pressure Rating |
150 psi |
|
Series |
Flex2Pro WHV |
|
Tank Volume |
32 gal |

$518.23
