FLEXCON

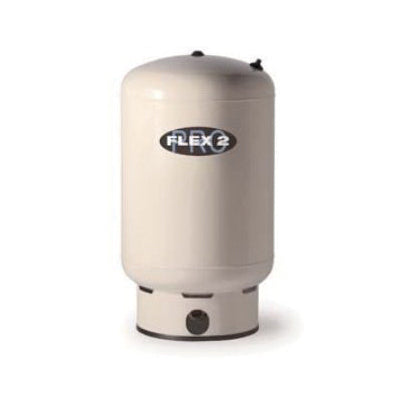

FLEX2PRO Whv - Thermal Expansion Tank - 81 gal Tank

FLEX2PRO Whv - Thermal Expansion Tank - 81 gal Tank

WHV 320



Regular price $1,077.96
Sale price $1,077.96 Regular price $2,536.31
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Appliance-quality paint for indoor or outdoor installation
• Top water chamber is 100% butyl rubber, lower water chamber is copolymer polypropylene
• High pressure, seam weld, helium, final pre-charge check
• Brass air valve with O-ring seal

DIMENSIONS

HEIGHT

62 in

WEIGHT

123 lb

WARRANTY

5 Year Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


These potable water expansion tanks feature a 100% butyl diaphragm combined with a copolymer lower water chamber for maximum water and air separation. There is no better way to separate the system water from the tank's air precharge. The system connection has a stainless steel elbow to prevent corrosion, and the tanks are finished with appliance-quality paint to help prevent external corrosion. Not to mention, every WHV tank is comprehensively tested and backed by Flexcon's five-year limited warranty.


SPECIFICATIONS

Acceptance Volume

32.6 gal

ASME Yes/No

No

Connection Size

1-1/4 in

Connection Type

FNPT

Diameter

21 in

Material

Drawn Steel

Maximum Temperature

200 deg F

Pre-Pressure Rating

40 psi

Pressure Rating

150 psi

Series

Flex2Pro WHV

Tank Volume

81 gal
