ZOELLER

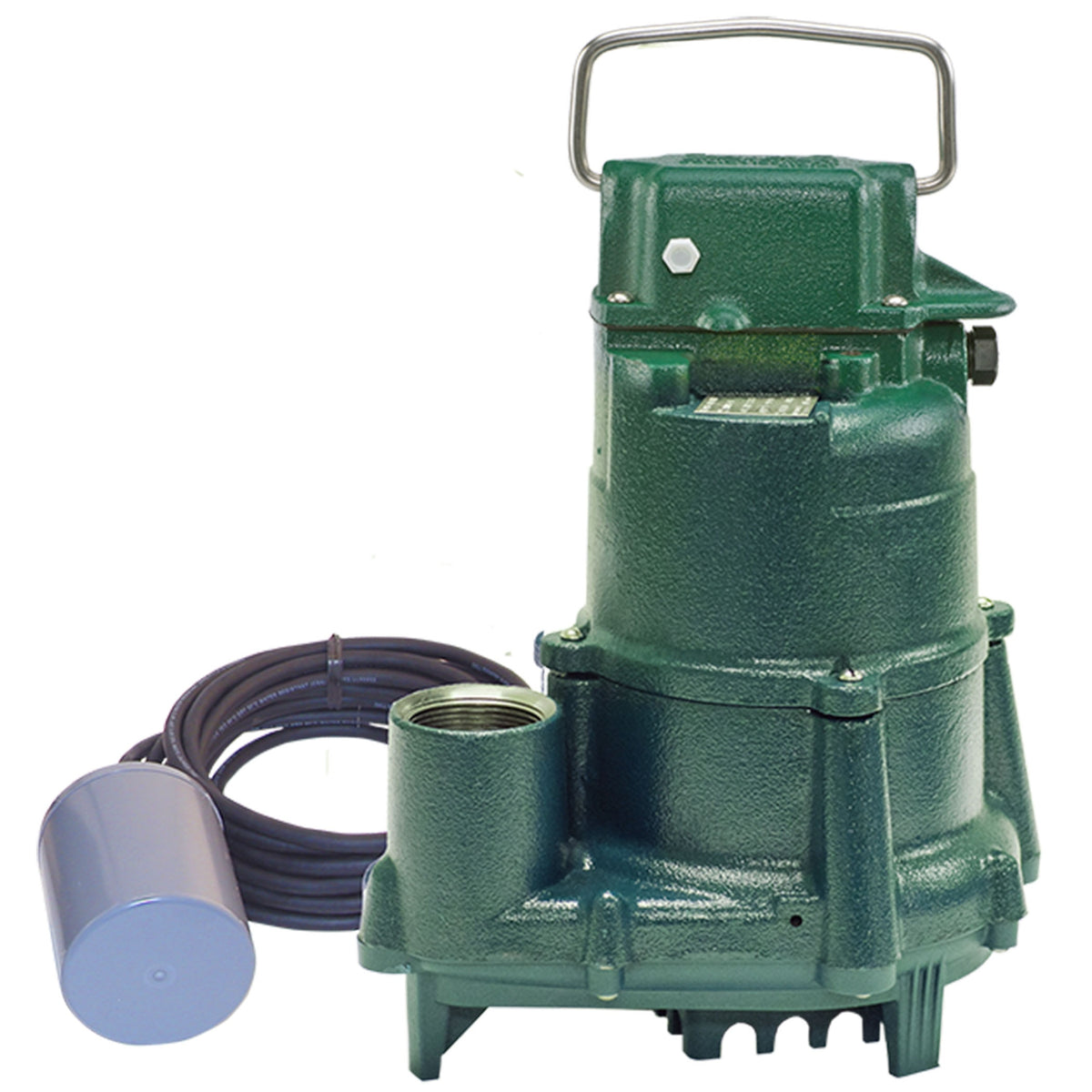

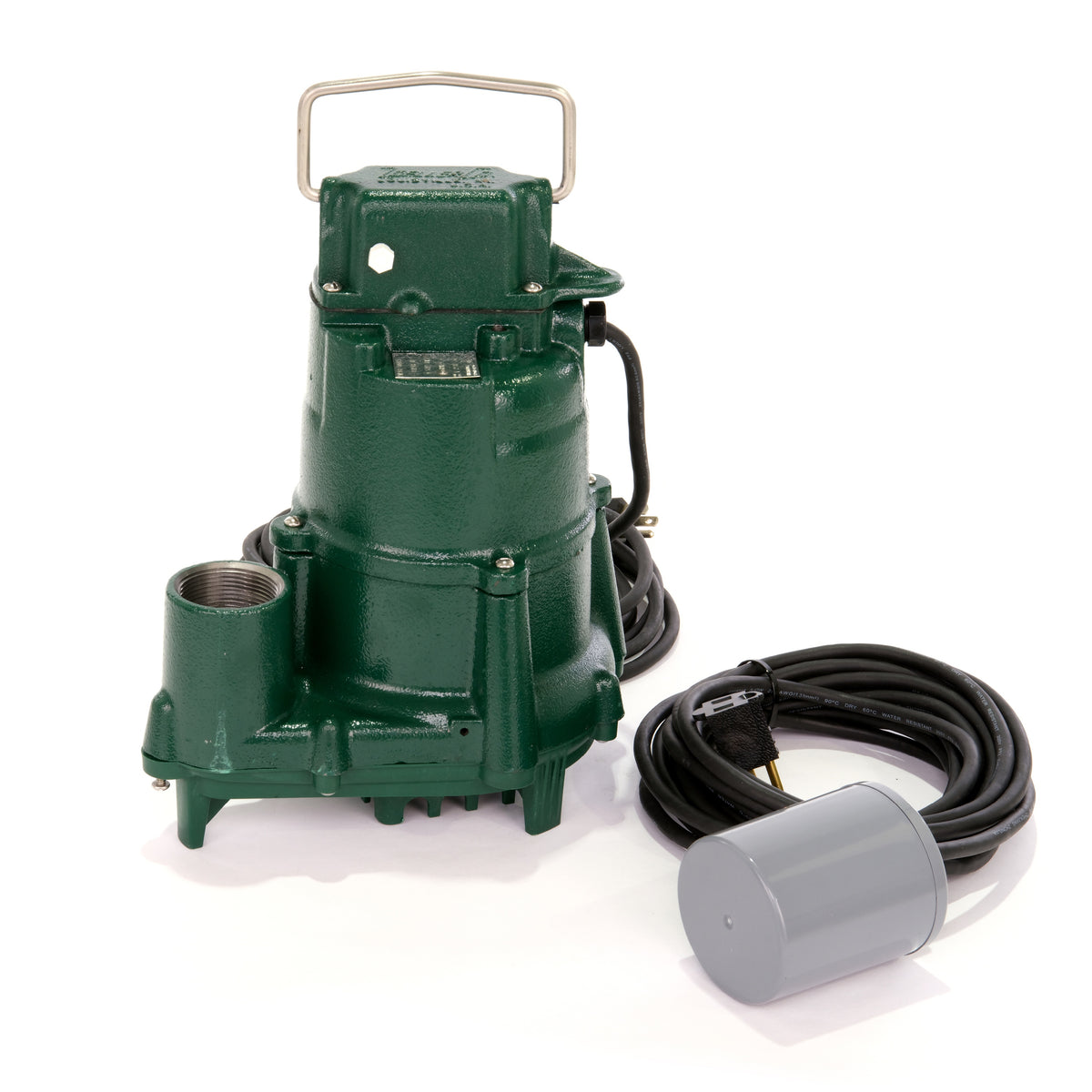

Flow-Mate 98 - Seal Submersible Pump with Single Seal - 1 Ph

Flow-Mate 98 - Seal Submersible Pump with Single Seal - 1 Ph

98-0005

$386.42
$386.42 $497.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Oil filled for optimal heat dissipation - This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications
• Non-clogging, engineered thermoplastic vortex impeller design that allows free passage of solids to prevent clogging
• The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field
• Durable, cast iron construction for long-lasting corrosion and heat resistance
• Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
• 100% factory tested - Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures

DIMENSIONS

WIDTH

10.13 in

HEIGHT

12 in

WEIGHT

31 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Drawings
Product Brochure

PRODUCT OVERVIEW

The 1/2 HP Model BN98 nonautomatic Effluent Pump with a variable level float switch is designed to remove groundwater from sump or septic system applications. This high pressure and high flow pump will provide the dependability expected from a Zoeller pump. Backed by a 3-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

SPECIFICATIONS

Amperage Rating

9.4 A

Bearing Type

Oil-Fed Cast Iron

Dimensions

10-1/8 in W x 12 in H

Enclosure Type

Auto Reset Thermal Overload

Flow Rate

72 gpm

Frequency Rating

60 Hz

Horsepower

1/2 hp

Impeller Type

Non-Clogging Vortex

Material

Cast Iron

Maximum Head

23 ft

Motor Speed

1725 rpm

Outlet Size

1-1/2 in NPT

Phase

1

Series

Flow-Mate 98

Temperature Rating

130 deg F
