MERRILL

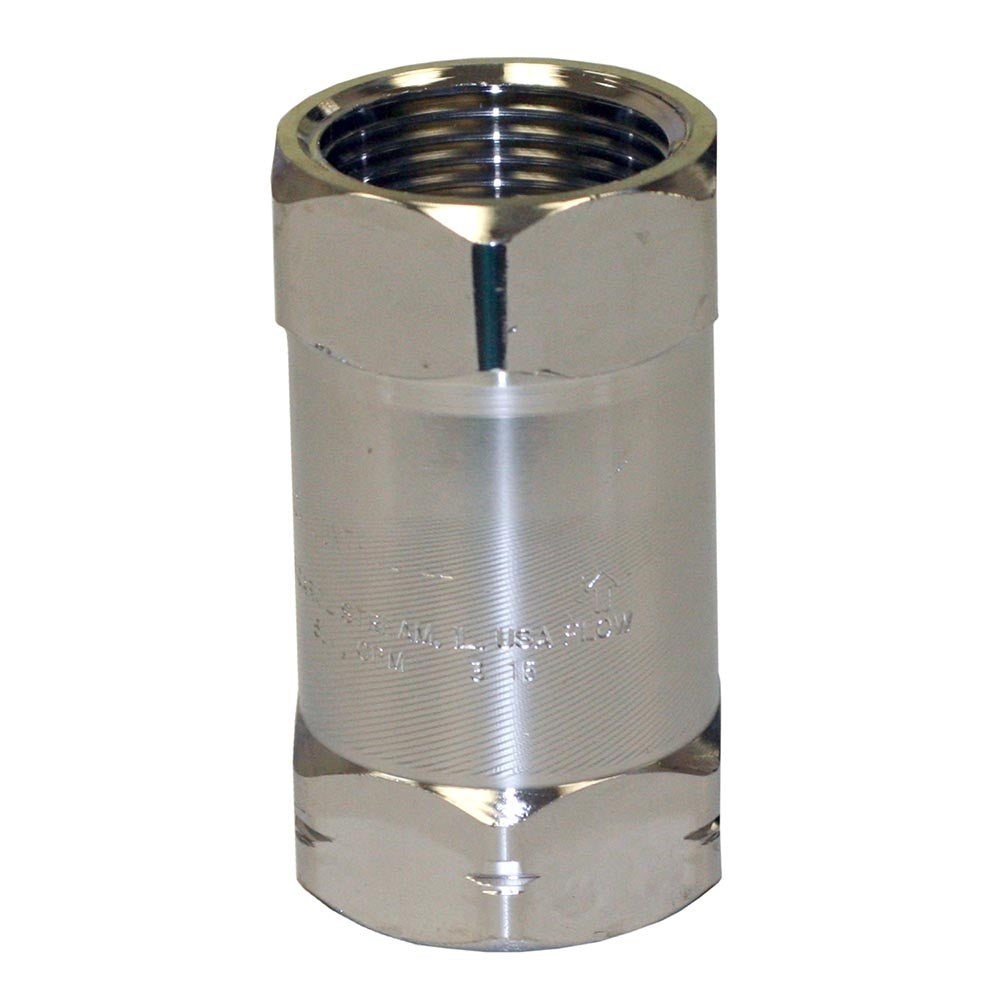

Frgx - 1" Flow Control Valve - 5 GPM - FNPT

Frgx - 1" Flow Control Valve - 5 GPM - FNPT

FRGX1050

$49.64
$49.64 $72.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Flow regulators are recommended for potable water below 180 deg F, flow tolerance of valve +/- 15%, and maximum system pressure of 200 psi
• Lead free

DIMENSIONS

LENGTH

2.79 in

WIDTH

1.7 in

HEIGHT

1.7 in

WARRANTY

1 Year Limited

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

G Series Flow Regulators are designed to deliver a constant volume of water flow output over a wide pressure drop range. The controlling mechanism consists of a flexible orifice engineered to vary its effective area inversely to the applied pressure. At pressures above the threshold pressure the orifice distorts reducing the opening size to maintain the output flow rate to within +/- 15% up to pressure drops of 125 psi.

SPECIFICATIONS

Dimensions

1.7 in H x 1.7 in W x 2.79 in L

End Style

FNPT

Flow Rate

5 gpm

Nominal Size

1 in

Pressure Rating

15 to 25 psi Threshold

Series

FRGX
