GASTITE

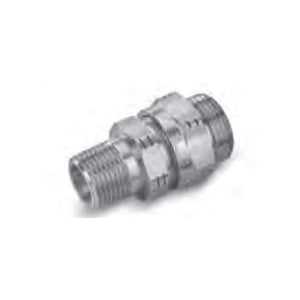

Fstrm - 8-Nf-12 Termination Fitting without Flange - Brass

Fstrm - 8-Nf-12 Termination Fitting without Flange - Brass

XR3TRM-8-NF-12



Regular price $22.52
Sale price $22.52 Regular price $39.10
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Male NPT adapter, bushing, termination nut, corrosion resistant steel flange
• For fixed-point termination on floor or wall
• Approved for Concealed Use
• Tool-Less Flare Fitting Design
• Metal-to-Metal Seal
• Self-guiding fitting assembly
• Patented jacket Bite™
• Fully reusable fitting
• 25 psi maximum approved operating pressure
• -40 to 160 deg F operating temperature

DIMENSIONS

LENGTH

2.54 in

WEIGHT

4.2 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


Flash Shield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA® , ICC and IAPMO. The Flash Shield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing and Jacket-BiteTM jacket capturing for steel tubing protection and continuous conductivity.


SPECIFICATIONS

End Style

MNPT

Material

Brass

Nominal Size

1/2 in

Series

FSTRM
