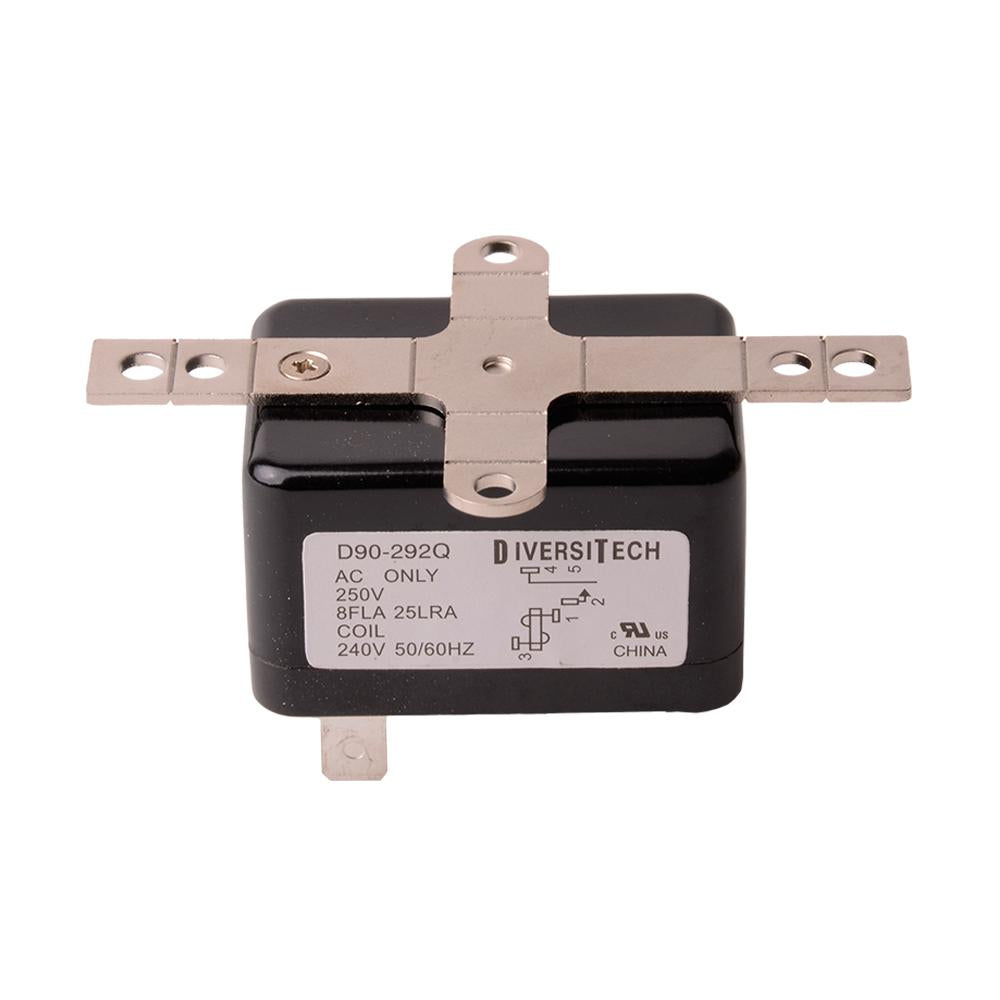

General Purpose Relay - Surface - 16/8 A

Name: General Purpose Relay - Surface - 16/8 A
Brand: DIVERSITECH
SKU: D90-292Q
Price: 19.46 USD
Availability: InStock

D90-292Q

$19.46

$19.46 ~~$6.95~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• This product features quick connect terminals with universal mounting with break away tabs

DIMENSIONS

WIDTH	2 in
HEIGHT	1.75 in
WEIGHT	0.2 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

The DiversiTech® D90-292Q General Purpose Relays – 8400 Series, Single Pole, Single Throw-NO, 14 Full Load Amps(FLA @ 125 volts, 8 FLA@ 250 volts, 240VAC coil voltage, 50/60 Hertz universal mounting this product features quick connect terminals with universal mounting with break away tabs.

SPECIFICATIONS

Amperage Rating	16/8 A
Coil Voltage	240 V AC
Contact Form	1NO 1 Form A SPST
Contact Rating	14 FLA/60 LRA at 125 V, 8 FLA/25 LRA at 250 V
Dimensions	2 in W x 3 in D x 1-3/4 in H
Frequency Rating	50/60 Hz
Mounting Type	Surface
Series	8400
Terminal Type	Quick-Connect
Type	General Purpose
