PANASONIC

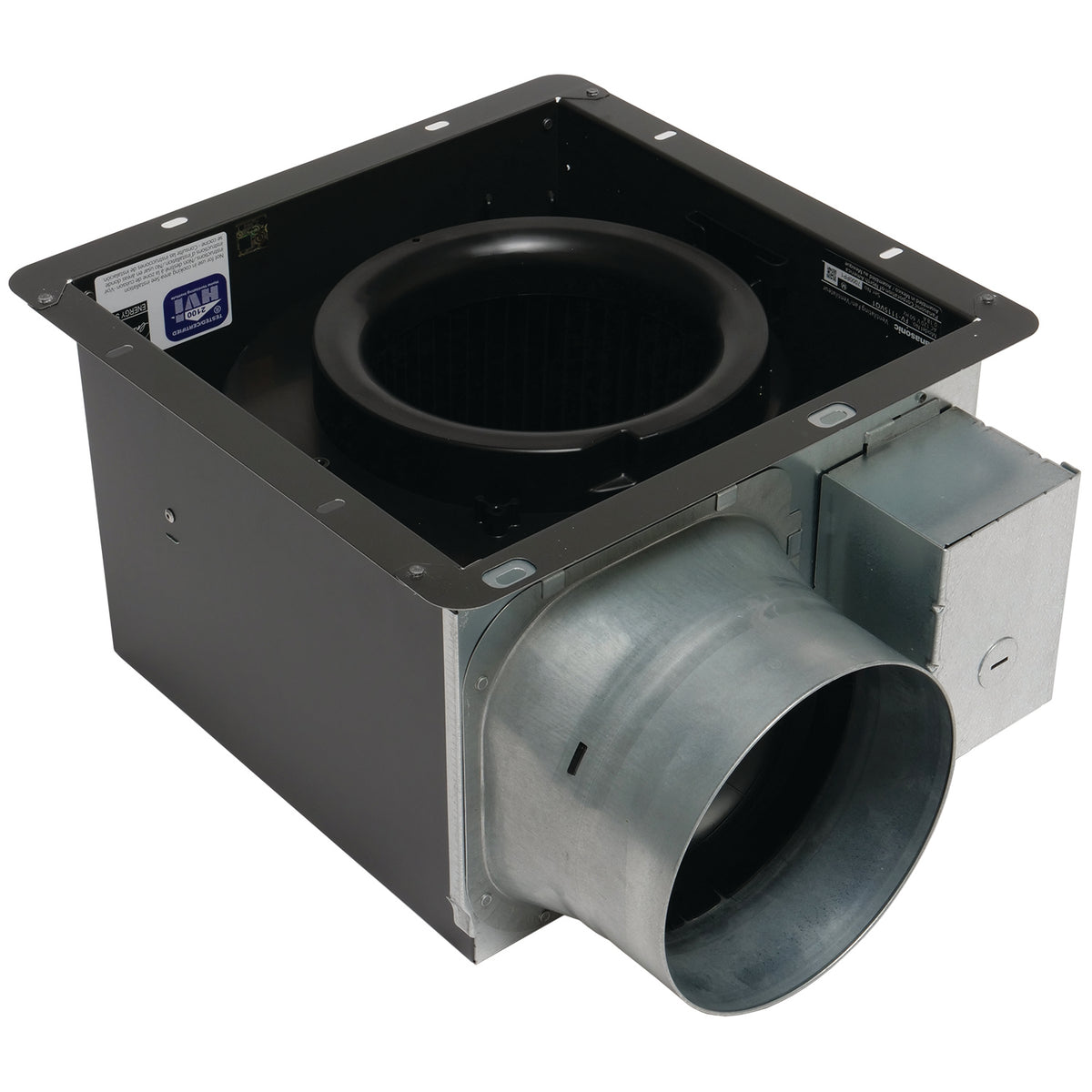

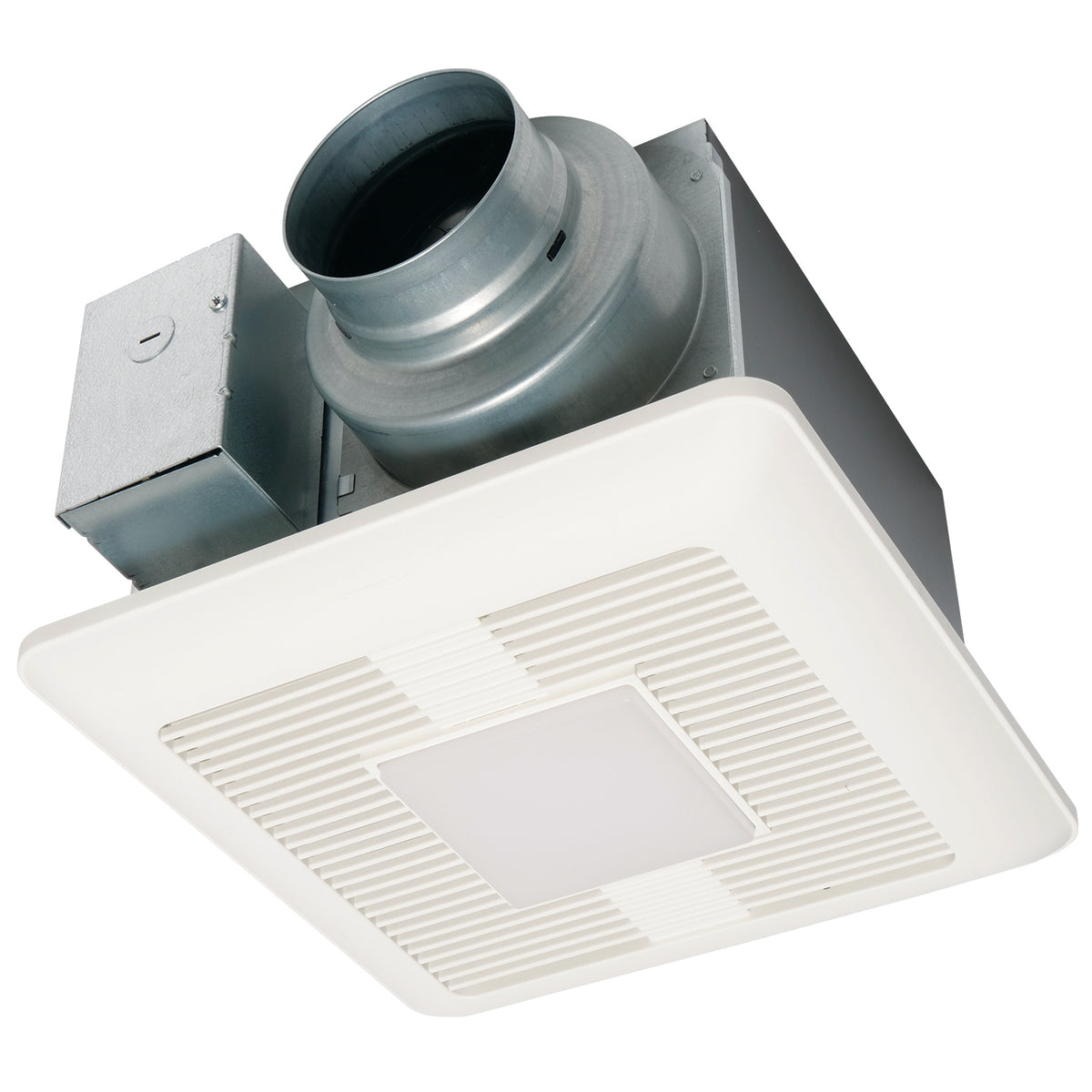

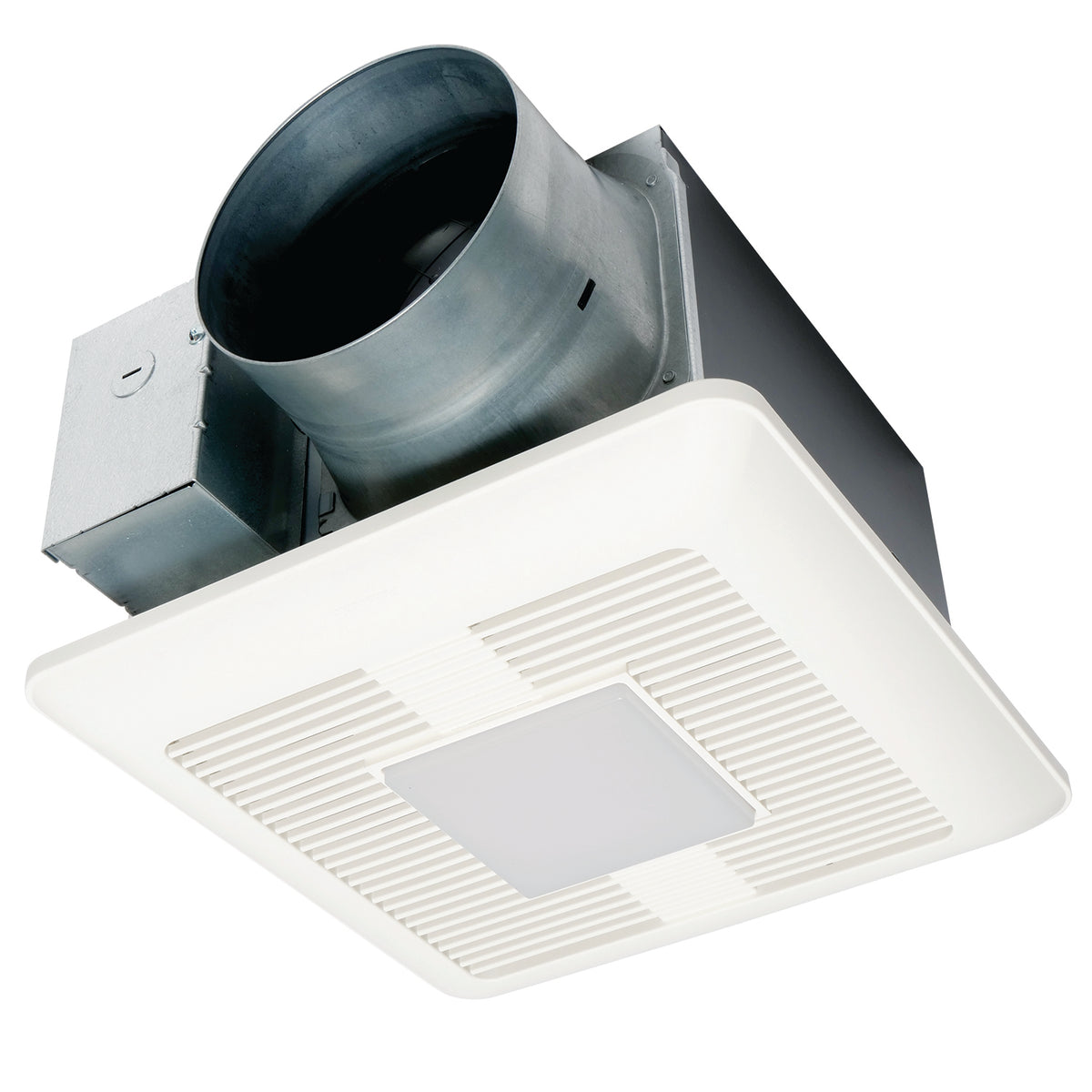

Grille Ventilation Fan/Light with Ecm Motor - Ceiling Mount

Grille Ventilation Fan/Light with Ecm Motor - Ceiling Mount

FV-0511VQL1

$241.92
$241.92 $365.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output

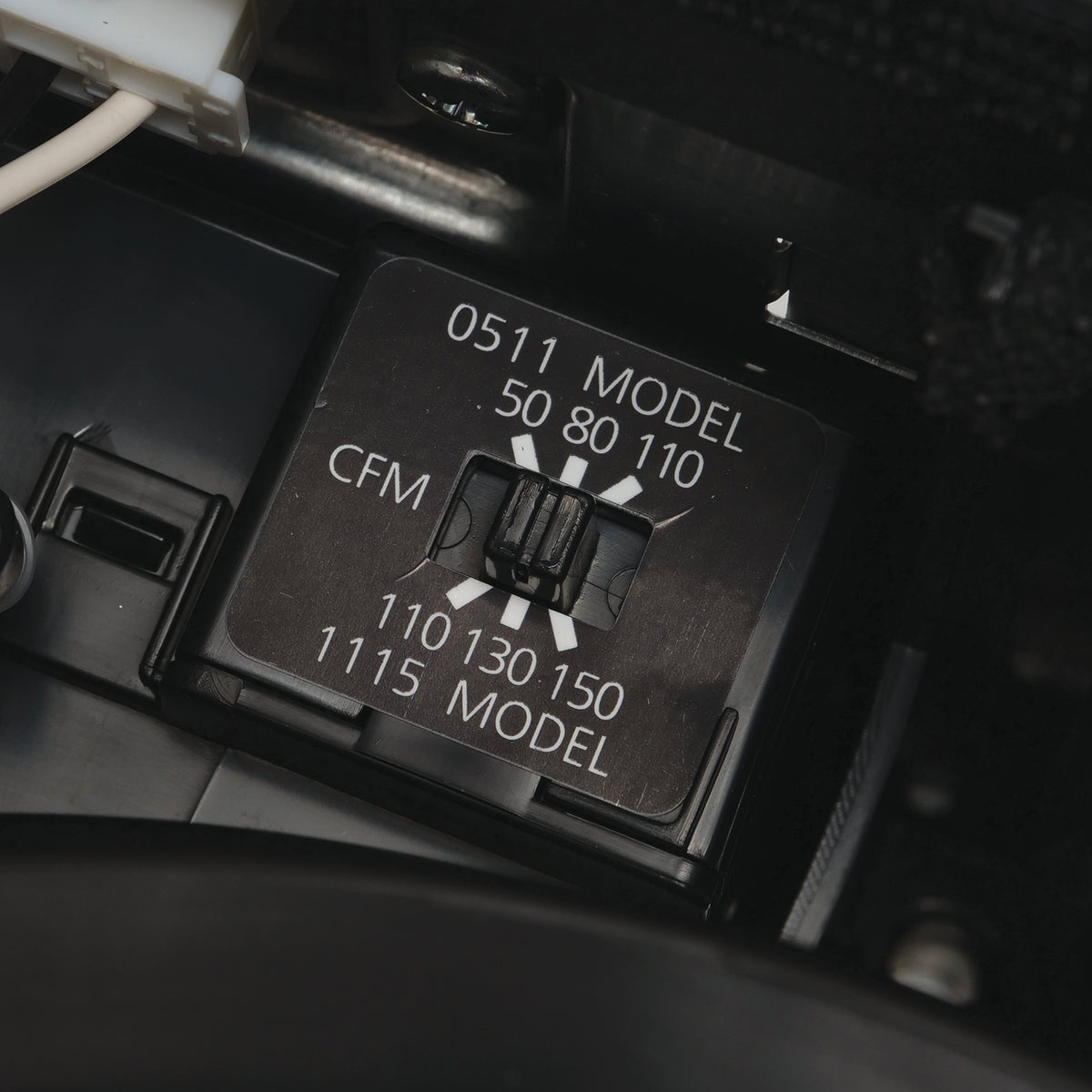

• Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 or 110, 130, 150 cfm models)
• Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
• Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination
• Elegant grille design compliments the aesthetics of any bathroom
• With LED chip panel lamp, built-in Pick-A-Flow™ speed selector switch

DIMENSIONS

LENGTH

10.25 in

WIDTH

10.25 in

HEIGHT

7.38 in

WEIGHT

11.68 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
Warranty Information
Service Manual

PRODUCT OVERVIEW

WhisperCeiling® DC™ precision spot ventilation fan/light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 cfm). Features an ECM motor with SmartFlow™ technology and a Flex-Z Fast™ installation bracket. Can be used to comply with the latest codes and standards.

SPECIFICATIONS

Air Flow Rate

50/80/83/100/110 cfm

Amperage Rating

0.07/0.11/0.12/0.18/0.19/0.26 A

Average Life

50000 hr

Color Rendering Index (CRI)

90

Color Temperature

3000 K

Dimensions

10-1/4 in L x 10-1/4 in W x 7-3/8 in H

Housing Material

Zinc Aluminum Magnesium

Lamp Wattage

10 W

Light Color

Warm White

Mounting Type

Ceiling

Type

Round Duct Square Grille

Voltage Rating

120 V AC
