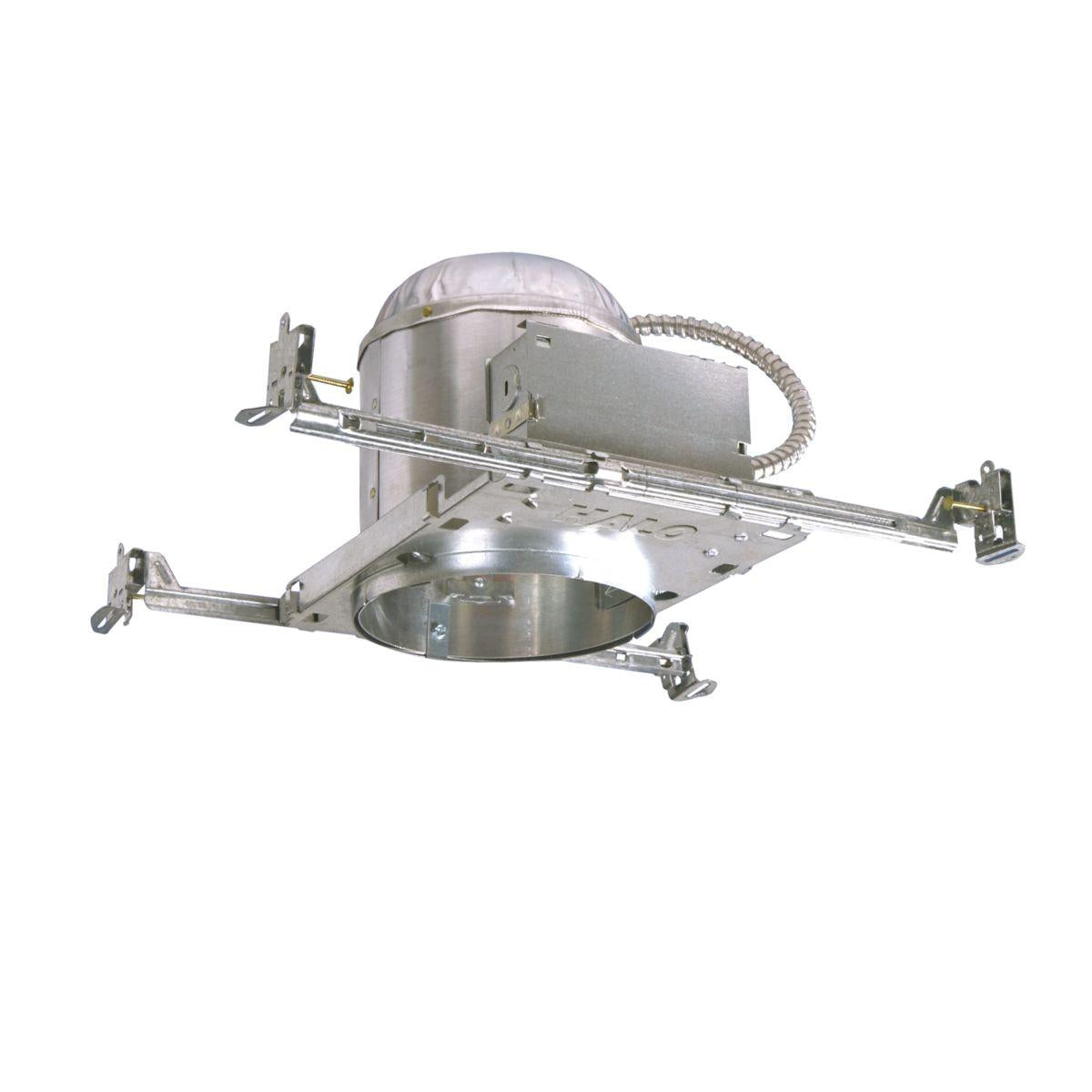

H7 Series - Construction Wall Recessed Lighting Housing

H7 Series - Construction Wall Recessed Lighting Housing

H7ICT

$12.50
$12.50 $9.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Got-Nail™ bar hangers with preinstalled nail and integral T-grid clip
• QuickConnect™ push-in wire nuts included
• Full sized feed-through rated junction box
• Socket bracket adjusts lamp to various trim styles and designs
• Aluminum construction for greater heat dissipation
• For use in insulated ceilings

DIMENSIONS

WIDTH

13.95 in

HEIGHT

7.65 in

WEIGHT

2.34 lb

WARRANTY

Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The H7 recessed housing is the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. H7ICT is for installations where the housing will be in direct contact with insulation. H7ICT may be converted into AIR-TITE® installation when used with AIR-TITE® trim.

SPECIFICATIONS

Ceiling Opening

6-1/2 in

Diameter

6 in

Housing Material

Aluminum

Insulation Type

IC

Lamp Type

Incandescent

Mounting Type

Ceiling

Number of Lamps

1

Series

H7 Series

Suitable For Use With

Halo General Purpose Downlight

Type

Line Voltage New Construction Single Wall

Voltage Rating

120 V AC
