DEWALT

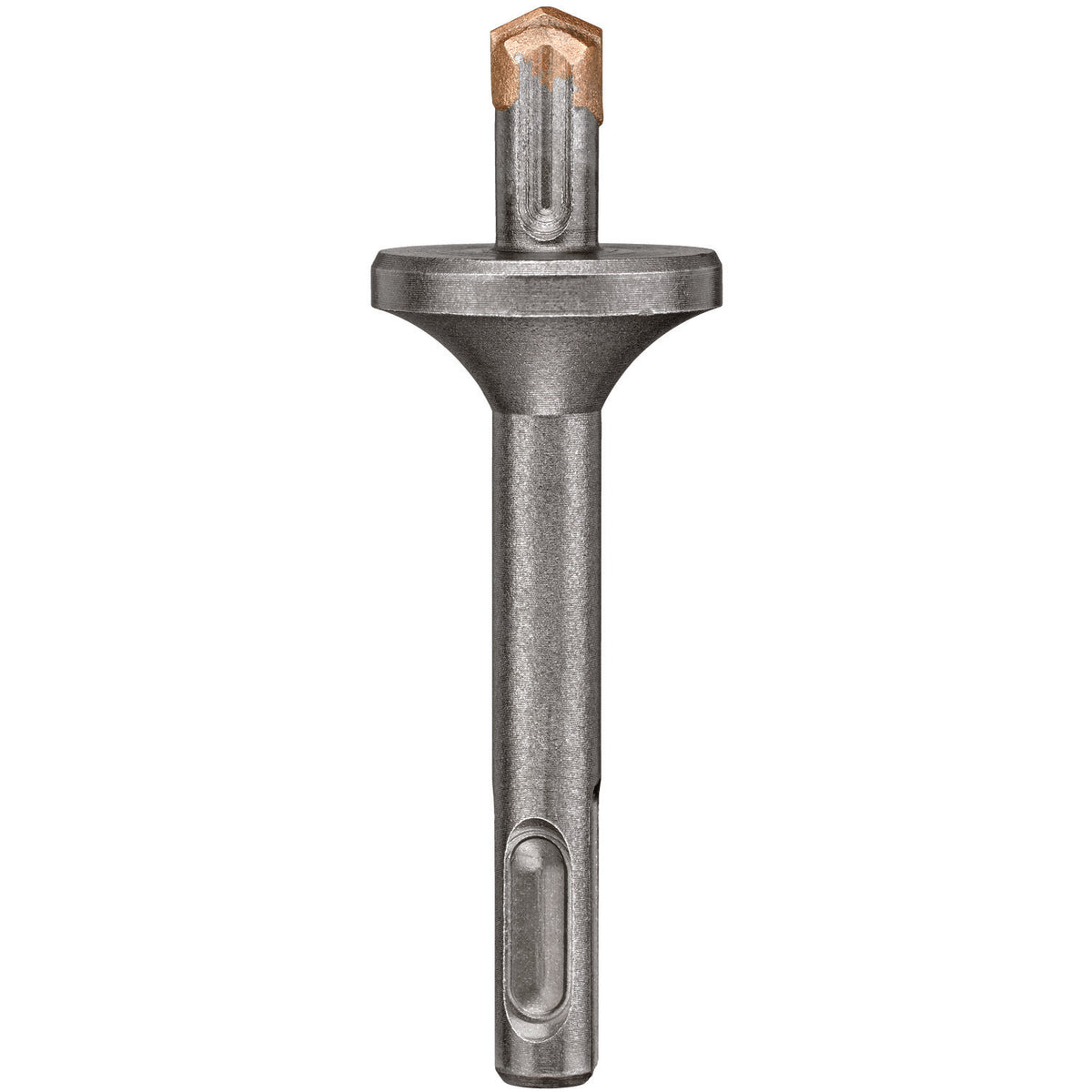

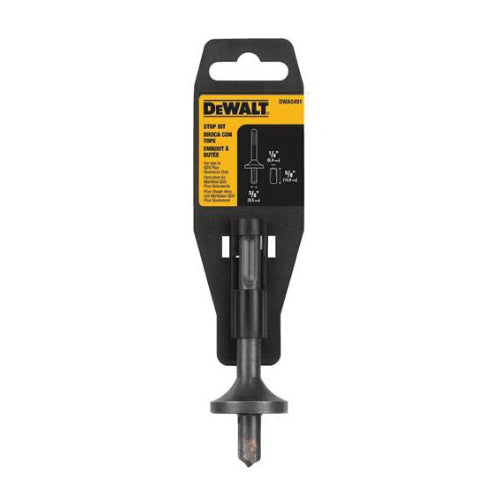

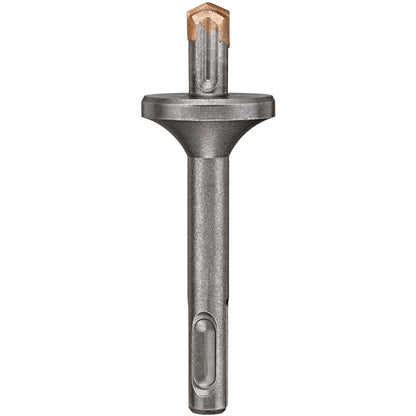

Hammer Drill Stop Bit - 3/8" Drill Bit - Steel

Hammer Drill Stop Bit - 3/8" Drill Bit - Steel

DWA5491

$20.93
$20.93 $13.95
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Large shoulder keeps user from over drilling
• Available in all of the most common drop-in anchor sizes with labels that clearly call out which size bit to use with which size drop-in anchor
• When drilling into PT slab, prevents user from drilling into post tension cable
• This is especially important when drilling into post tension slabs
• Wide range of products for the most common anchor applications

DIMENSIONS

LENGTH

3.78 in

WEIGHT

0.18 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

SDS-Plus® stop bits feature a large shoulder design for preventing over-depth drilling - crucial for drilling post-tensioned concrete. with a variety of diameters and lengths, these stop bits provide a solution for the most common anchor applications.

SPECIFICATIONS

Applicable Materials

Post-Tensioned Concrete

Cutting Depth

25/32 in

Cutting Direction

Right Hand

Drill Bit Function

Drilling

Drill Bit Size

3/8 in

Flute Length

25/32 in

Material

Steel

Overall Length

3-25/32 in

Shank Size

25/64 in

Shank Type

SDS-Plus

Type

2-Cutter
