Item Status: Discontinued

Availability is limited to remaining stock.

MOEN

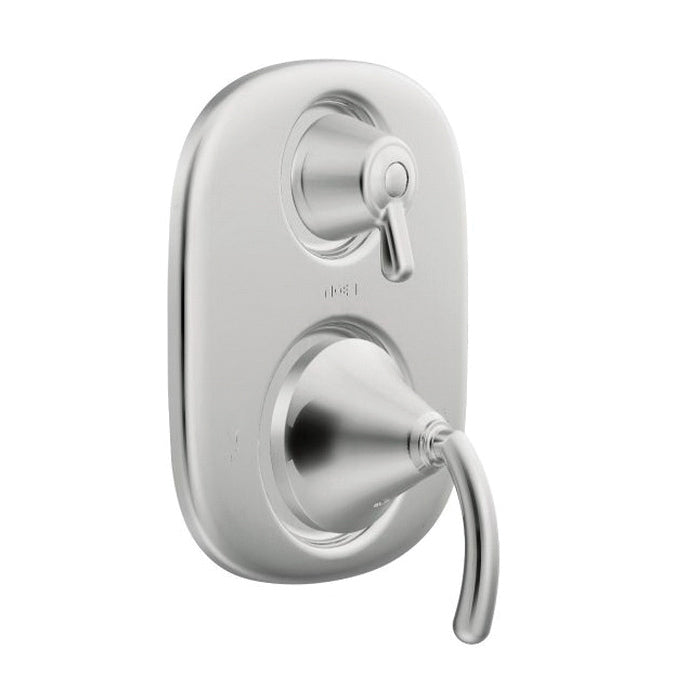

Icon Moentrol - 3-Function Transfer Valve Trim - Wall Mount

Icon Moentrol - 3-Function Transfer Valve Trim - Wall Mount

TS4112

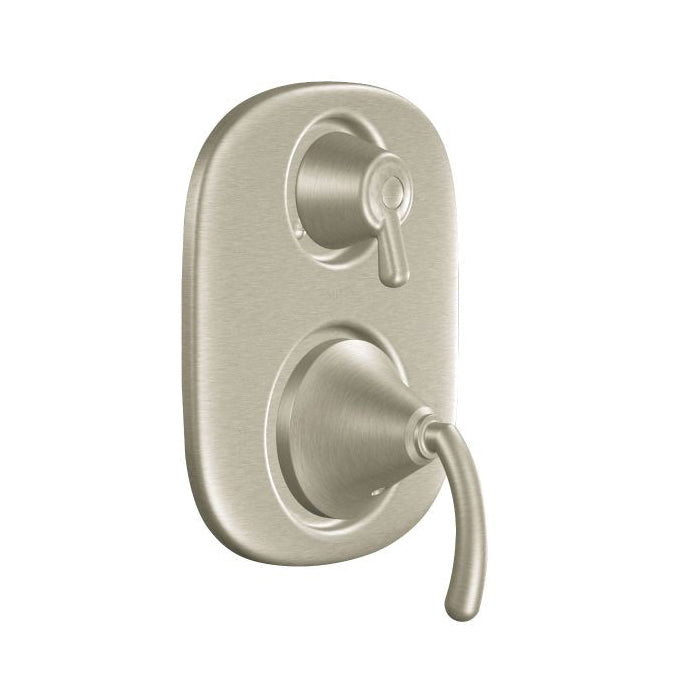

Finish/Color
$181.07
$181.07 $223.70
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Lever handles make it easy to adjust the water
• Moentrol® with transfer
• Showerhead sold separately
• Built on the Moen® M-PACT® common valve system, allowing you to update the faucet style in the future without replacing any plumbing
• Pull-on/push-off operation of temperature and volume, rotational control of transfer valve
• Temperature operates through an 180 deg arc of handle travel (full cold to full hot)
• Adjustable temperature limit stop to control maximum hot water
• 180 deg rotation of transfer valve handle with stops
• Pressure balancing mechanism maintains selected discharge temperature to +/- 3.6 deg F
• 4-ports/2 outlets

DIMENSIONS

WIDTH

7 in

HEIGHT

8.38 in

WEIGHT

2.03 lb

WARRANTY

Limited Lifetime Warranty Against Leaks, Drips and Finish Defects To The Original Consumer Purchaser, 5 Years Warranty If Used In Commercial Installations

DOCUMENTS & RESOURCES

Specification Sheet
Warranty Information

PRODUCT OVERVIEW

Icon™ proves that petite forms can inspire great design. Sleek and simple, European influences abound: unobstructed lines, thin curves and crisp water flow make Icon™ faucets and accessories so eye-catching.

SPECIFICATIONS

Collection

Icon™ Moentrol®

Dimensions

7 in W x 4.5 in D x 8.38 in H

Domestic/Import

Domestic

Handle Type

Lever

Material

Metal

Mounting Type

Wall

Series

TS4112

Suitable For Use With

Model 3330 Transfer Valve

Trim Size

7 in W x 8-3/8 in H

Type

4-Port 3-Function

Valve Inlet Connection

1/2 in Copper

Valve Outlet Connection

1/2 in C

Valve/Cartridge Type

1222 Pressure Balanced
