Item Status: Discontinued

Availability is limited to remaining stock.

MOEN

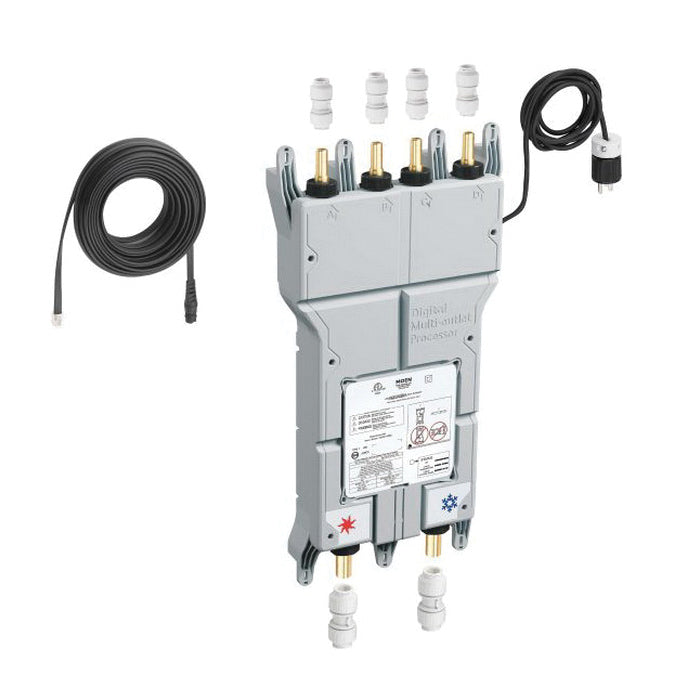

Iodigital - Digital Thermostatic Rough-in Valve - Wall Mount

Iodigital - Digital Thermostatic Rough-in Valve - Wall Mount

S3384

$1,524.77
$1,524.77 $1,883.80
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Digital thermostatic valve design with 3/4 in inlet push fit connections and 1/2 in outlet push fit connections
• Factory max setting is 115 deg F
• Valve must be installed in an area that has an access panel
• Electrical power supply requirements 24 V/5 to 6 Hz or 12 V 60Hz
• Designed to deliver 17.5 gpm (66 L/min) at 45 psi unrestricted flow, min flow 2.4 gpm (9.1 L/min)
• Designed to deliver 6 gpm (22.7 L/min) at 45 psi (one outlet)

DIMENSIONS

WIDTH

13.5 in

HEIGHT

29.63 in

WEIGHT

23.98 lb

WARRANTY

5 Years Warranty Against Leaks, Drips and Operation Defects To The Original Consumer Purchaser, 1 Year Warranty If Used In Commercial Installations

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Drawings

PRODUCT OVERVIEW

SPECIFICATIONS

Body Material

Metal

Dimensions

13-1/2 in W x 29-5/8 in H

Domestic/Import

Import

Flow Rate

17.5 gpm

Inlet Connection

1/2 in C/CPVC

Mounting Type

Wall

Outlet Connection

1/2 in C/CPVC

Pressure Rating

45 psi

Series

ioDigital™

Suitable For Use With

TS3420/TS295 Series Controller

Temperature Rating

60 to 120 deg F

Type

Digital
