JOMAR VALVE

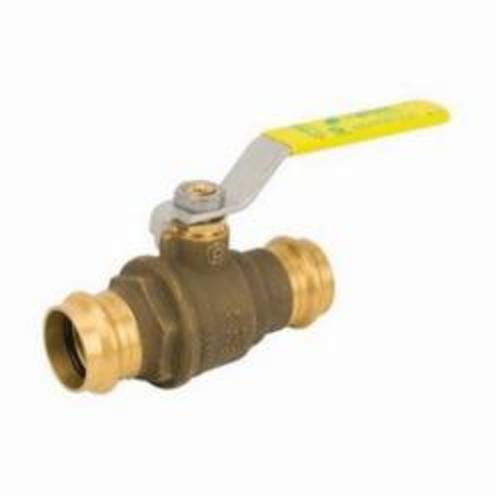

Jp-100GPXP - 1/2" 2-Piece Ball Valve - Brass - Press

Jp-100GPXP - 1/2" 2-Piece Ball Valve - Brass - Press

100-203G

$33.53
$33.53 $52.10
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Blow-out/leak proof system
• Dezincification-resistant brass alloy
• 100% leak tested
• Wetted surfaces contains less than 0.25 % lead content
• Steel - Geomet® plated handle nut
• 16.82 Cv
• EPDM O-ring

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

SPECIFICATIONS

Actuator Type

Lever Operated

Ball Material

Brass

Body Material

Brass

End Style

Press

Inlet to Outlet Length

3.54 in

Media

Gas/Oil/Water

Nominal Size

1/2 in

Orifice Size

0.59 in

Port Type

Full

Pressure Rating

250 psi

Series

JP-100GPXP

Softgoods Material

EPDM

Temperature Rating

250 deg F

Top to Inlet Center

1.53 in

Trim Material

Brass Stem and TFM Seat
