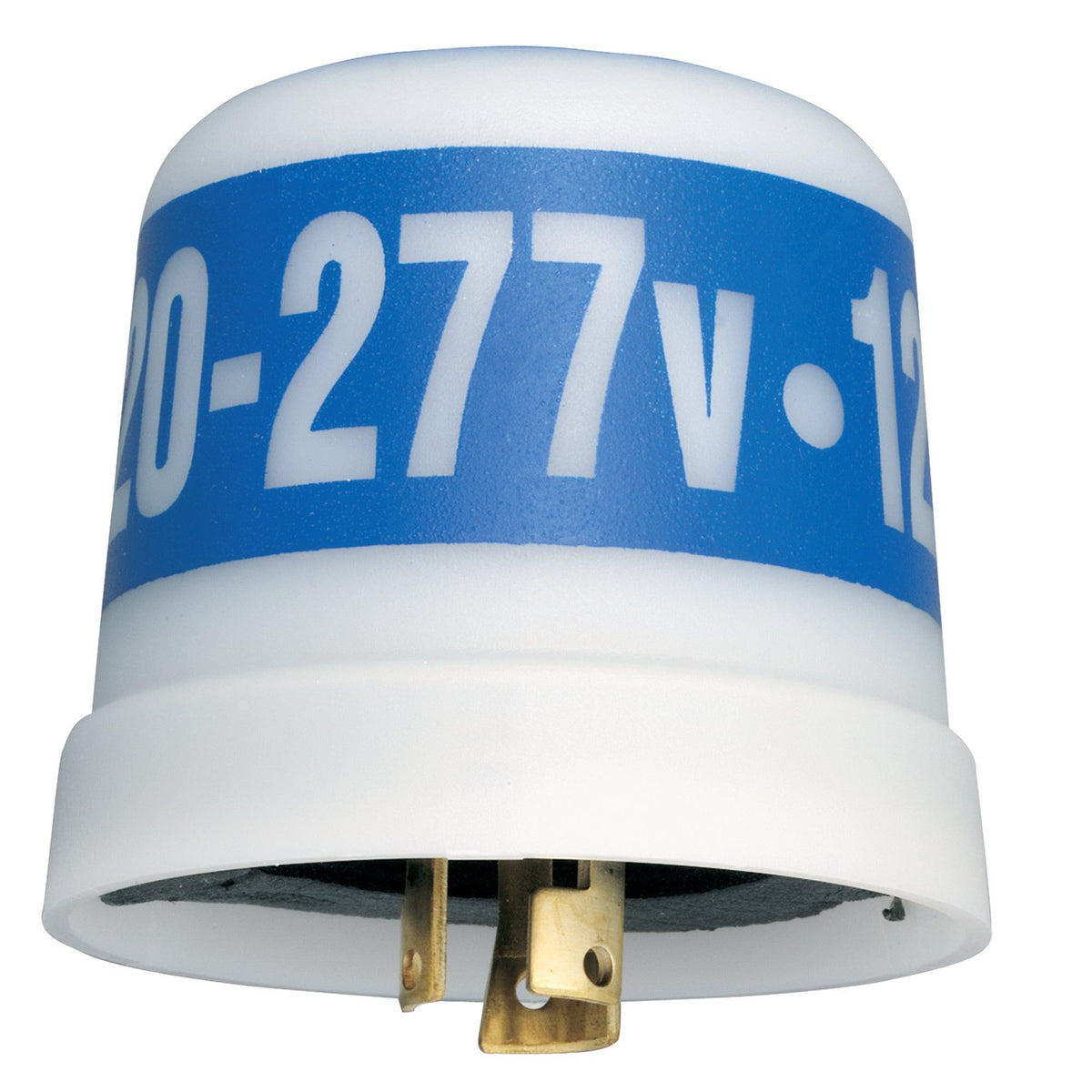

LC4500 - Locking Mounting Thermal Photocontrol - Fixture

LC4500 - Locking Mounting Thermal Photocontrol - Fixture

LC4536C

$28.76
$28.76 $15.98
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Integral high impact thermoplastic housing
• Locking type plug for quick installation and changeover
• Delay feature prevents unwanted OFF switching

DIMENSIONS

HEIGHT

2.75 in

WEIGHT

0.26 lb

WARRANTY

2 Years Limited

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

SPECIFICATIONS

Amperage Rating

15 A

Arrester

Spark Gap

Ballast Load

1000 to 2290 VA

Contact Form

SPST

Dimensions

3 in Dia x 2-3/4 in H

Environmental Conditions

-20 to 104 deg F

Frequency Rating

50/60 Hz

Material

Polypropylene

Mounting Type

Fixture

Operating Cycles

3650 Cycles

Sensitivity

0.5 FC ON, 15 FC OFF

Sensor Type

Cadmium Sulfide

Series

LC4500

Timing Range

30 to 90 s
