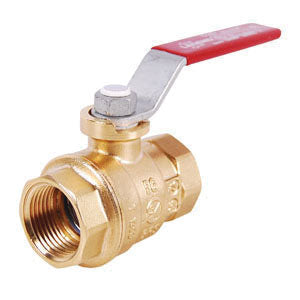

LEGEND 101-023NL T-1001NL Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import

LEGEND 101-023NL T-1001NL Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import

101-023NL

$13.38
$13.38 $21.53
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Dacromet® coated steel, tamper-evident handwheel nut/handle/locking device, FKM fluoroelastomer stem O-Rings, Dyneon® TFM® PTFE anti-friction washer/thrust washer, Lead free forged brass stem/ball/body/end adapter
• Steel handle is Dacromet® coated and will not corrode in aggressive environments
• Valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats
• O-Ring stem design, lighter weight and durable forged no lead brass body, Blow-out proof stem, PTFE seats for improved wear
• Does not require any additional steps to solder, as compared to traditional brass valves
• Bottom loaded stem is Blow-out proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation
• CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp/gas air mixtures
• UL listed 44R8 for LP, natural and manufactured gases, flammables liquids, 6 oil at 250 deg F
• Factory mutual approved for fire protection service
• UL listed 757x for fire protection service

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The 1001 Series Full Port Ball Valves are Maintenance-Free because the stem seals with two FKM O-rings instead of the traditional gland follower or packing gland design. No call backs are necessary to tighten a packing nut. The bottom loaded stem is blow-out proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation. The valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats. The steel handle is Dacromet® coated and will not corrode in aggressive environments. Every valve is manufactured to precise tolerances in a completely automated ISO certified factory and 100% pressure tested. The 1001 Series of ball valves are offered in a variety of configurations for residential, commercial and industrial applications. The T/S-1001 is constructed of UNS C37700 forged brass. The T/S-1001NL is constructed of no lead binary brass alloy.
