LIBERTY PUMPS

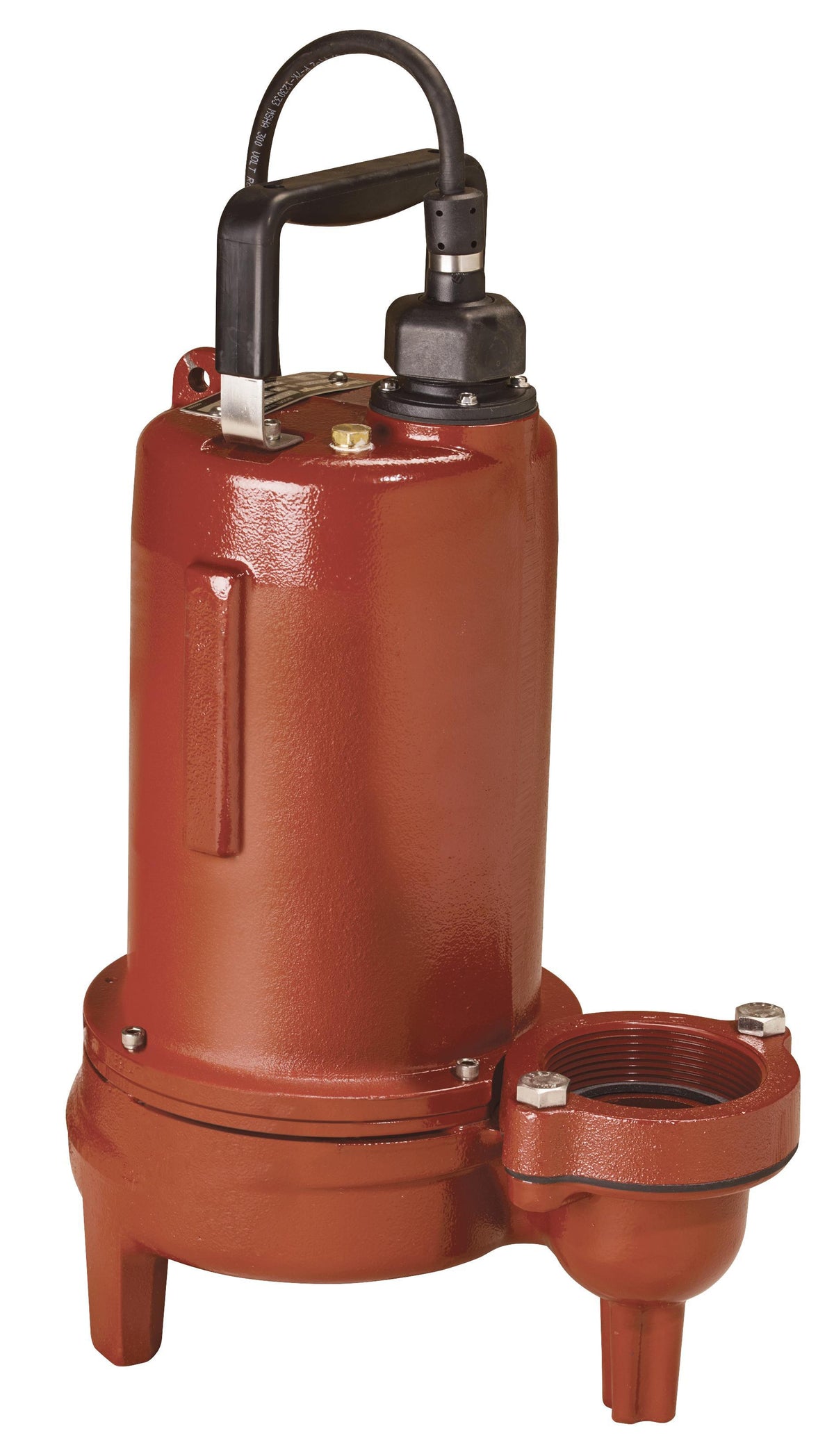

LEH100 - 1 HP - 440 to 480 V AC

LEH100 - 1 HP - 440 to 480 V AC

LEH104M3-2

$1,445.25
$1,445.25 $1,927.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Cast iron housings and volute
• Stainless and brass fasteners
• Oil-filled, hermetically sealed motor
• Permanently lubricated upper and lower ball bearings
• Unitized shaft seals
• Adjustable pumping range
• Quick-connect 25' power cord

DIMENSIONS

WIDTH

12.5 in

HEIGHT

18.9 in

WEIGHT

70 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions

PRODUCT OVERVIEW

The LEH100 by Liberty is a high-head 2 in solids-handling sewage pump. Built on the same platform as the LE100 series, the LEH100 features all heavy cast iron housings, stainless steel fasteners and Liberty's quick-connect power cord design. Available in 2 or 3 in discharge and a variety of voltages, the LEH100 has a maximum head of 53 ft and is backed by Liberty's 3 years warranty.

SPECIFICATIONS

Amperage Rating

4.5 A Full Load/16.2 A Locked Rotor

Bearing Type

Ball

Cord Type

SEOOW 25 ft

Dimensions

12.5 in W x 18.9 in H

Flow Rate

200 gpm

Frequency Rating

60 Hz

Horsepower

1 hp

Impeller Type

Cast Iron 2-Vane Semi-Open

Material

Cast Iron

Maximum Head

53 ft

Motor Speed

3450 rpm

Outlet Size

3 in Flanged

Phase

3

Series

LEH100
