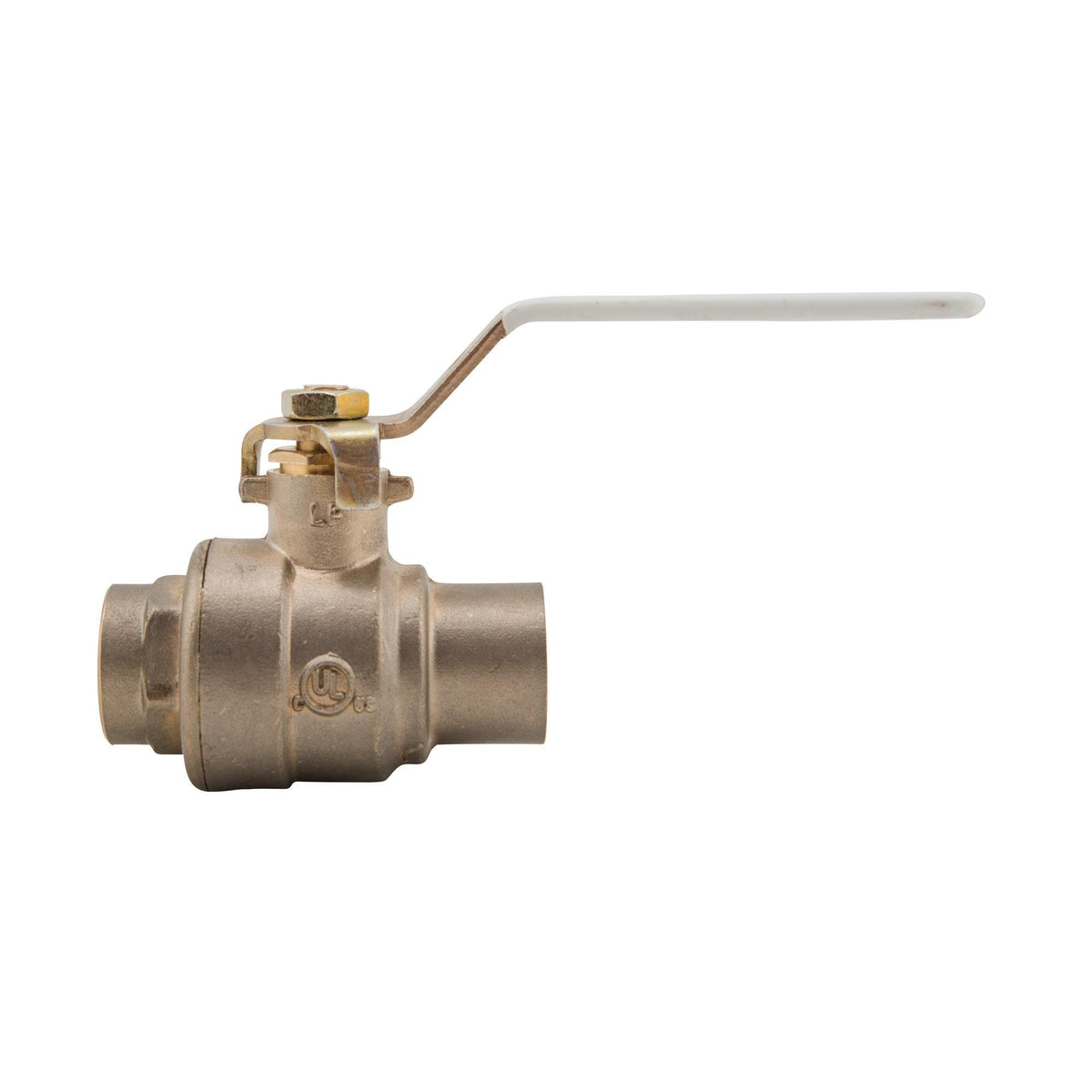

Lffbvs-3C-M1 2-Piece Ball Valve - Lead-Free
Lffbvs-3C-M1 2-Piece Ball Valve - Lead-Free
88005700
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Machined chrome plated lead free brass ball
• Fluorocarbon elastomer stem O-ring prevents stem leaks
DIMENSIONS
DIMENSIONS
|
WEIGHT |
0.37 lb |
|---|
WARRANTY
WARRANTY
Limited
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
This 1/2 inch 2-piece full port lead free ball valve is used in residential, commercial, and industrial applications for potable water and a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle. Certified NSF-61/ANSI 8, UL listed, and FM approved.
SPECIFICATIONS
|
Actuator Type |
Lever Handle |
|---|---|
|
Ball Material |
Polished Chrome Brass |
|
Body Material |
Copper Silicon Alloy |
|
Domestic/Import |
Import |
|
End Style |
Solder |
|
Inlet to Outlet Length |
2-1/16 in |
|
Media |
Gas/Liquids |
|
Nominal Size |
1/2 in |
|
Orifice Size |
1/2 in |
|
Port Type |
Full |
|
Pressure Rating |
150 psi WSP/600 psi WOG |
|
Series |
LFFBVS-3C-M1 |
|
Softgoods Material |
FKM/PTFE |
|
Temperature Rating |
-40 to 400 deg F |

$17.27
