FL50, 15 ft Rated Head, 11.2 in W x 7 in D x 16.4 in H

Name: FL50, 15 ft Rated Head, 11.2 in W x 7 in D x 16.4 in H
Brand: LIBERTY PUMPS
SKU: FL51A-3
Price: 930.75 USD
Availability: InStock

FL51A-3

$930.75

$930.75 ~~$1,241.00~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Permits passage of solids without clogging
• Cast iron construction with all stainless and brass fasteners
• 416 stainless steel rotor shaft
• Oil-filled hermetically sealed motor
• Permanently lubricated upper and lower ball bearings
• Unitized carbon and ceramic shaft seal
• 35' Quick-connect power cord

DIMENSIONS

WIDTH	11.2 in
HEIGHT	16.4 in
WEIGHT	66 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet

Installation Instructions

PRODUCT OVERVIEW

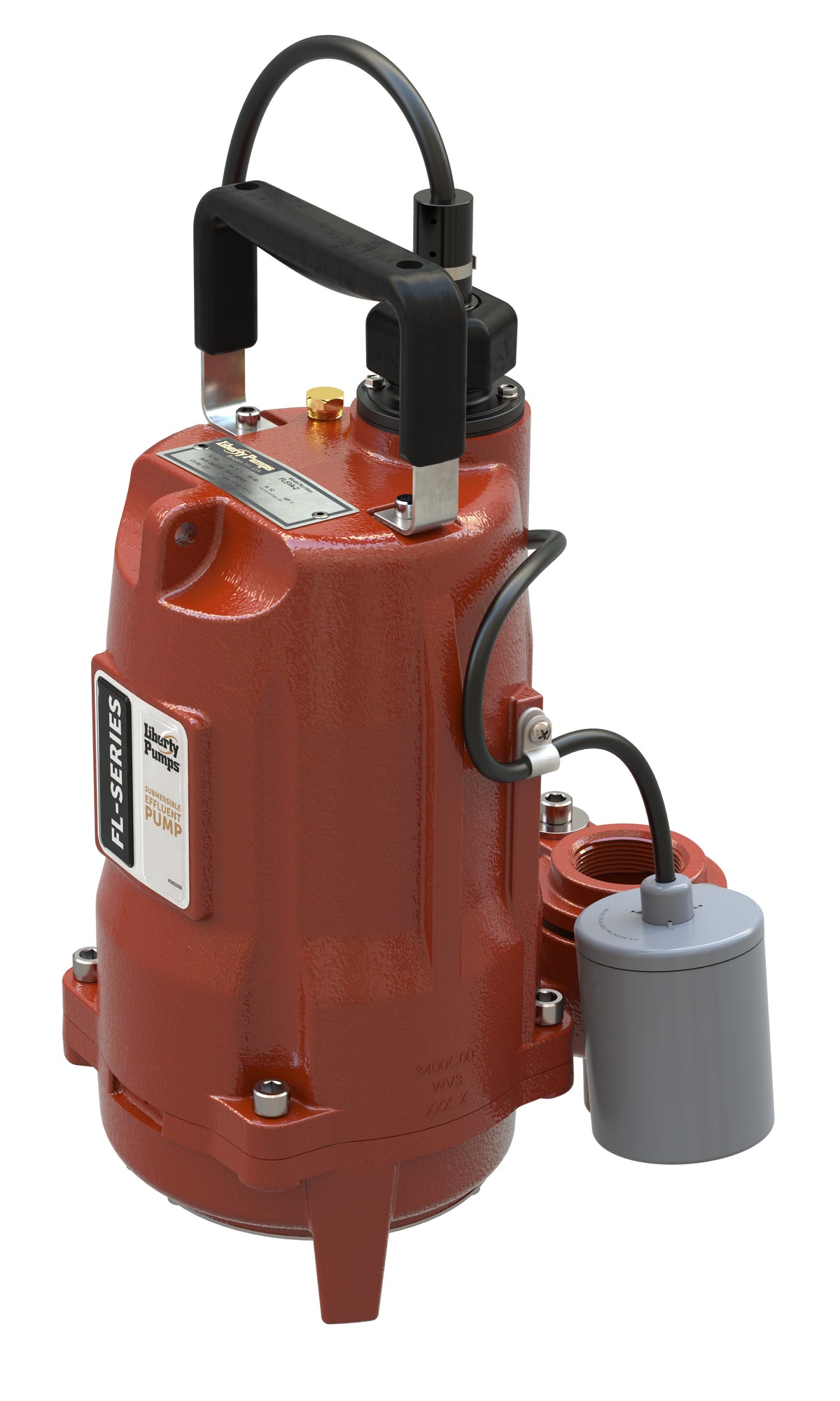

The FL50 series by Liberty is a mid-range effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL50 will provide years of reliable performance.

SPECIFICATIONS

Amperage Rating	12 A Full Load/48.6 A Locked Rotor
Automatic/Non Automatic	Automatic
Bearing Type	Ball/Race
Cord Type	SJOOW 35 ft
Dimensions	11.2 in W x 7 in D x 16.4 in H
Enclosure Type	NEMA 4X
Frequency Rating	60 Hz
Horsepower	1/2 hp
Impeller Type	Cast Iron Multi-Vane Semi-Open
Material	Cast Iron
Maximum Flow Rate	92 gpm
Maximum Head	55 ft
Motor Speed	3450 rpm
Outlet Size	1-1/2 in FNPT
Phase	1
