Item Status: Discontinued

Availability is limited to remaining stock.

UEI TEST INSTRUMENTS

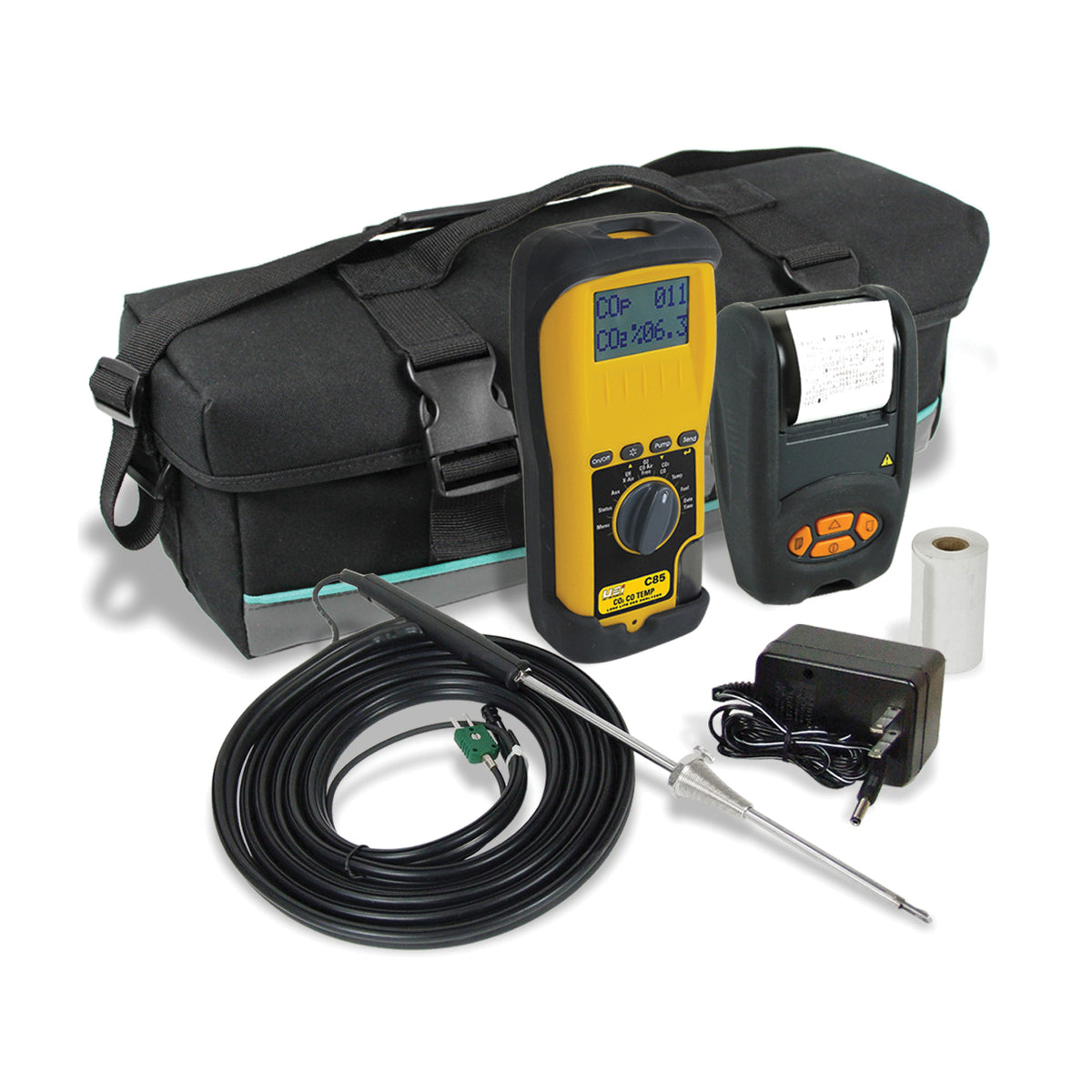

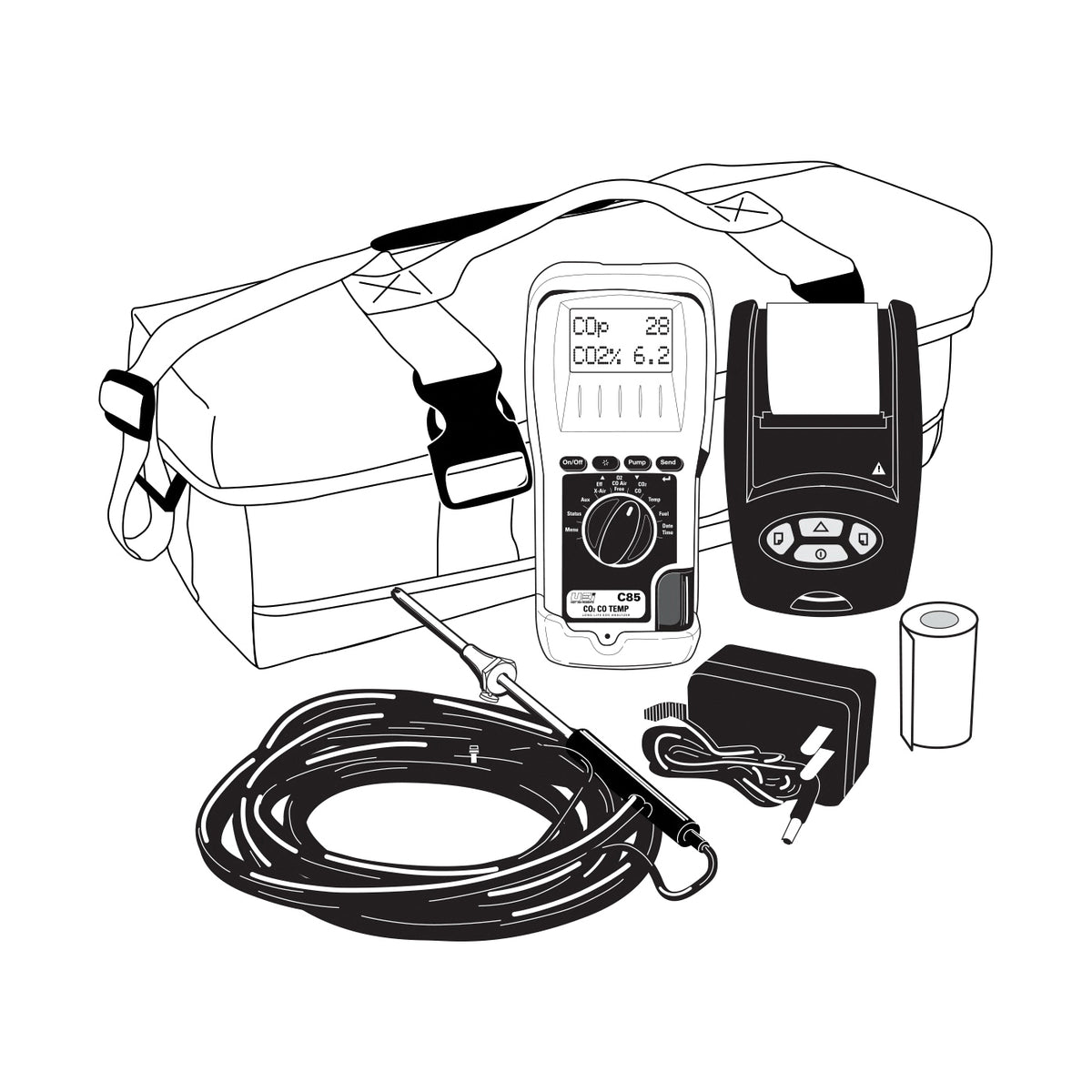

Long Life Eos Combustion Analyzer Kit - C85KIT

Long Life Eos Combustion Analyzer Kit - C85KIT

C85KIT

$846.50
$846.50 $647.37
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Unique DMM style rotary selector
• Magnetic boot
• Real time clock
• CO readings to 1 ppm
• Large 2 line backlit display
• Infrared printer port
• User programmable header
• 20 memory position
• Functions: Measures - CO2, CO, flue temperature, calculates - O2, gross/net efficiency, excess air, CO air free
• 32 to 1112 deg F flue temperature

DIMENSIONS

WEIGHT

2.2 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual
Product Brochure

PRODUCT OVERVIEW

UEi now brings our exclusive EOS CO2 measurement technology to our residential portable combustion analyzer. The C85 also features a long life CO sensor helping to reduce cost of ownership. The C85 makes combustion analysis as easy as turn the power on, select the fuel and go.

SPECIFICATIONS

Ambient Air Temperature Rating

0 to 40 deg C

Battery Type

AA

Carbon Dioxide Concentration

0 to 20 %

Carbon Monoxide Measuring Range

0 to 4000 ppm

Display Type

2 Line Back-Lit LCD

Fuel Type

Natural Gas/Propane/Butane/LPG/Light Oils (28/35 sec)/Wood Pellets

Oxygen Concentration

0 to 21 %

Type

Long Life
