Low Side Compound Gauge - Blue
Low Side Compound Gauge - Blue
M2-951
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• For use with R-22, R-134A, R-404A refrigerants
• 30 in vacuum to 120 psi, retard to 350 psi
• Surge dampened for accuracy
• Recalibration screw
• Full size brass movements
• High impact clear lexan lens
• Compound steel case illuminated
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW

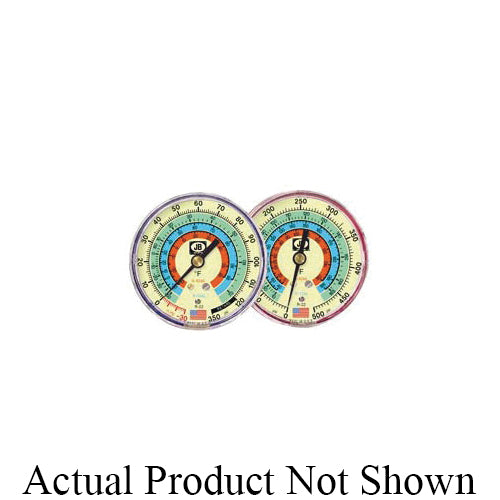

JB offers 3-1/8 in (80 mm) illuminated gauges. The glow-in-the-dark dials store energy to emit light in dimly lit or dark applications. The R-410A only gauges are not glow-in-the-dark due to their pink dial. The illuminated large gauges are also available with 1% accuracy rating. Gauges are sensitive instruments and should not be subjected to pressures beyond scale.
SPECIFICATIONS
|
Accuracy |
1% |
|---|---|
|
Connection Size |
1/8 in MNPT |
|
Dial Diameter |
3-1/8 in |
|
Material |
Steel Case |
|
Pressure Range |
30 in Hg to 120 psi |
|
Type |
Low Side |

$44.12
