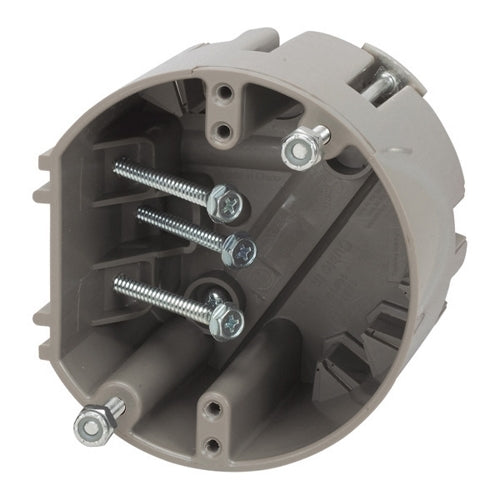

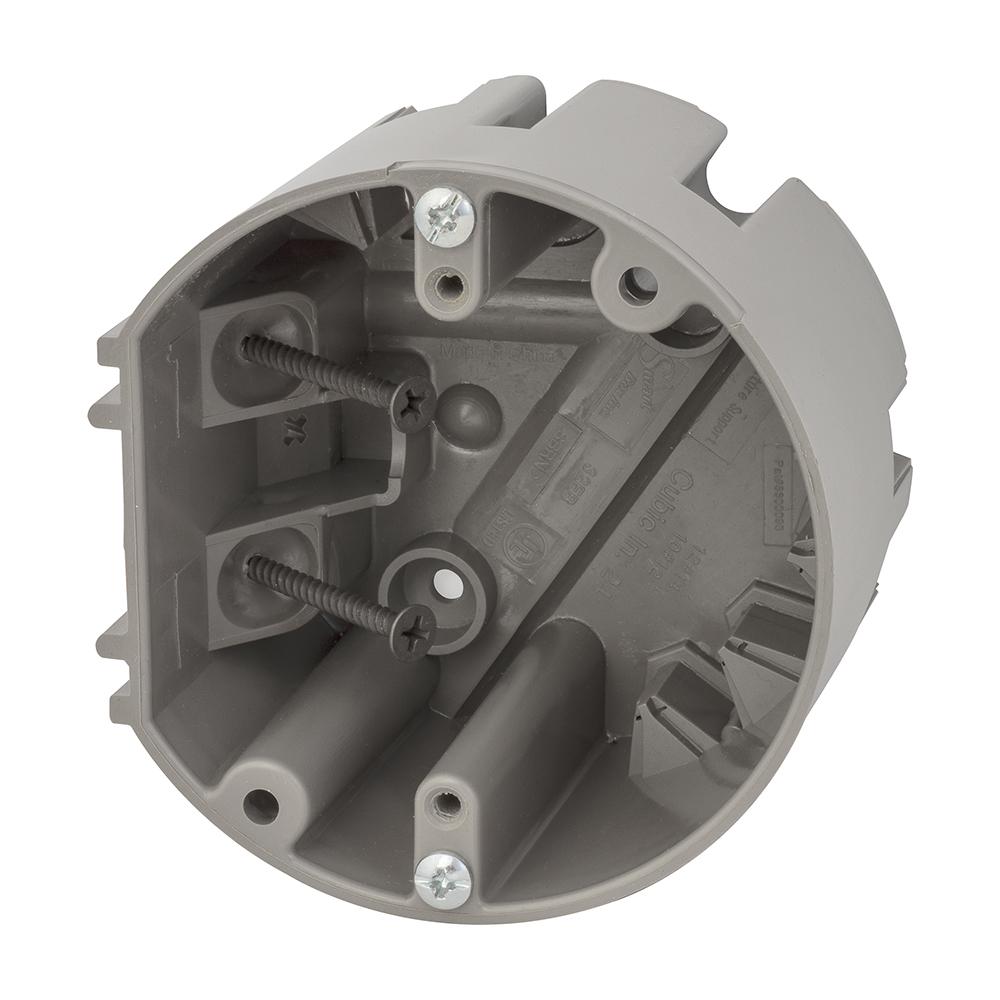

Madison Electric Smart Box Fan and Fixture Box - MSBRND
Madison Electric Smart Box Fan and Fixture Box - MSBRND
MSBRND
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
3.7 in |
|---|---|
|
HEIGHT |
4 in |
|
WEIGHT |
1.88 lb |
PRODUCT OVERVIEW
The light fixture Smart Box™ is a unique ceiling product with a UL listed rating for 50 lb light fixture support. It is the only nonmetallic ceiling box that include (2) 1 in #8 fixture support screw. This product is extra deep for additional wire capacity. It is also quick and easy to remove for wiring between floor, cathedral ceiling and inaccessible attic. Add a cold rolled steel L-bracket to this Smart Box™ and you now have a UL listed 50 lb. ceiling fan support box and a 75 lb light fixture support box that work for all kind of job situation. It is side beam mounted with (3) 2 in # 10 hex head screw vs bottom joist mounted. Ideal for upgrading light fixture to light paddle fan combo, this one of a kind product has unmatched versatility that is immediately recognized by the electrician in the field.
SPECIFICATIONS
|
Capacity |
24 cu-in |
|---|---|
|
Dimensions |
3.7 in W x 2.76 in D x 4 in H |
|
Knockout Size |
1/2 in |
|
Material |
Polycarbonate |
|
Mounting Type |
Ceiling/Joist |
|
Number of Gangs |
1 |
|
Number of Knockouts |
6 |
